CDS-VNi9

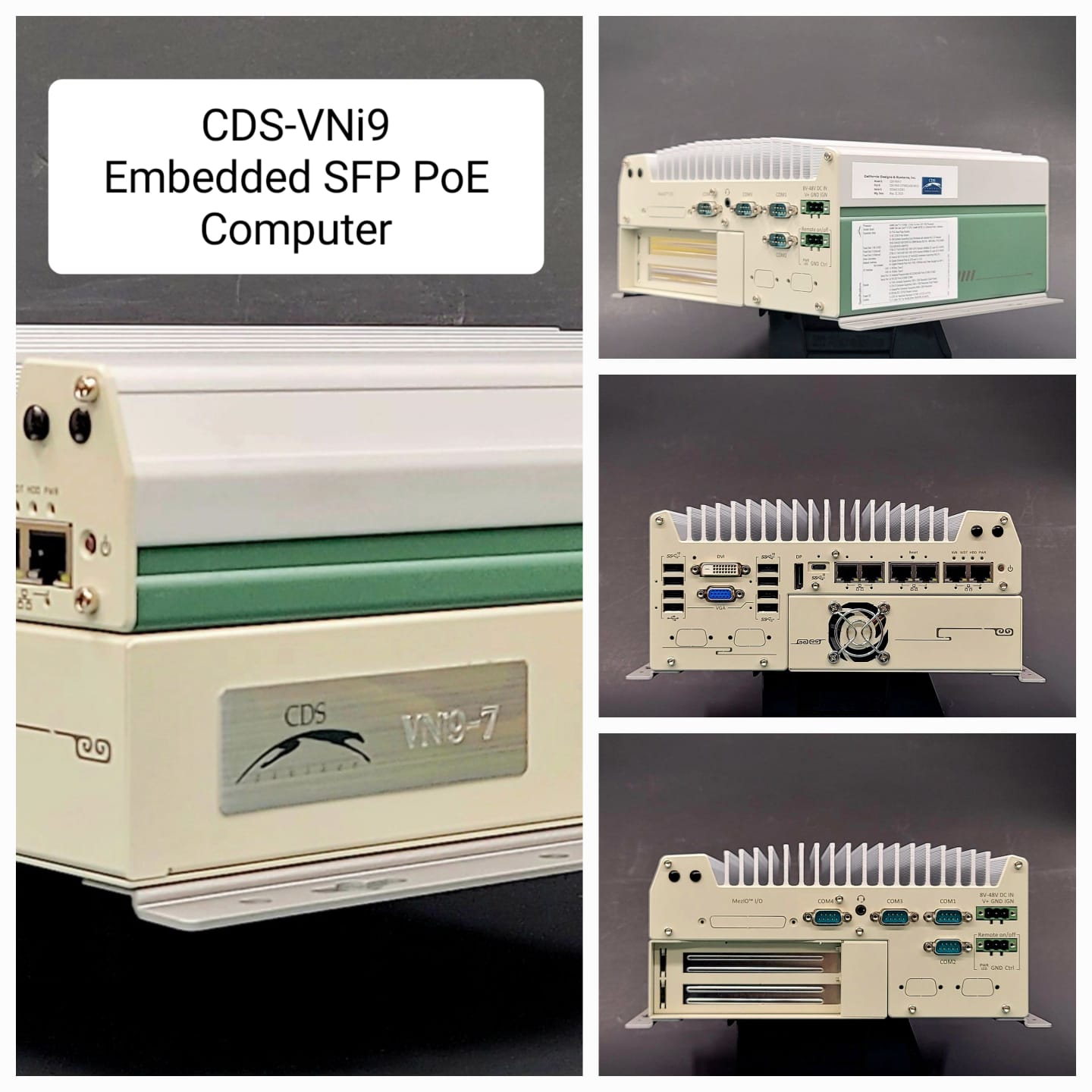

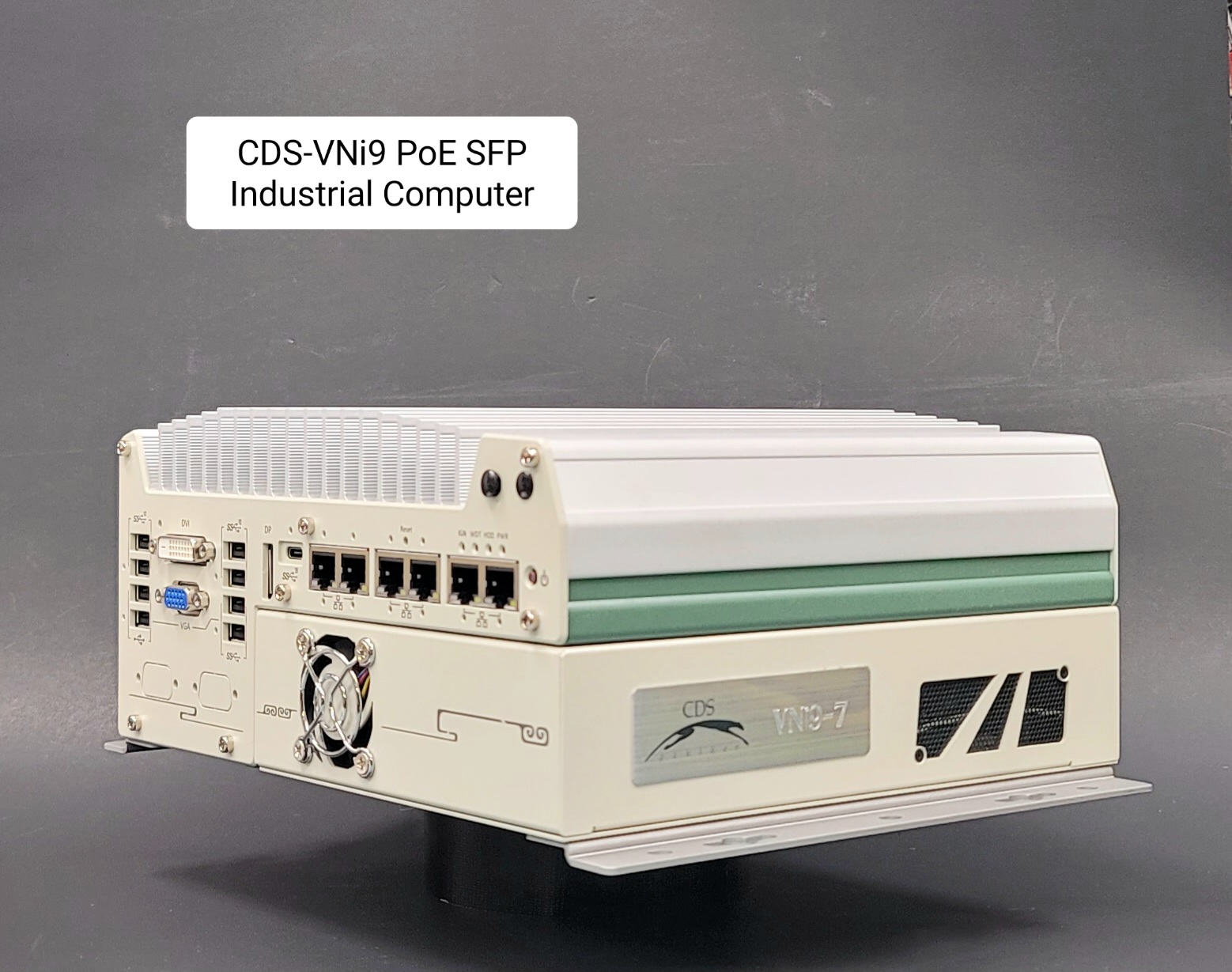

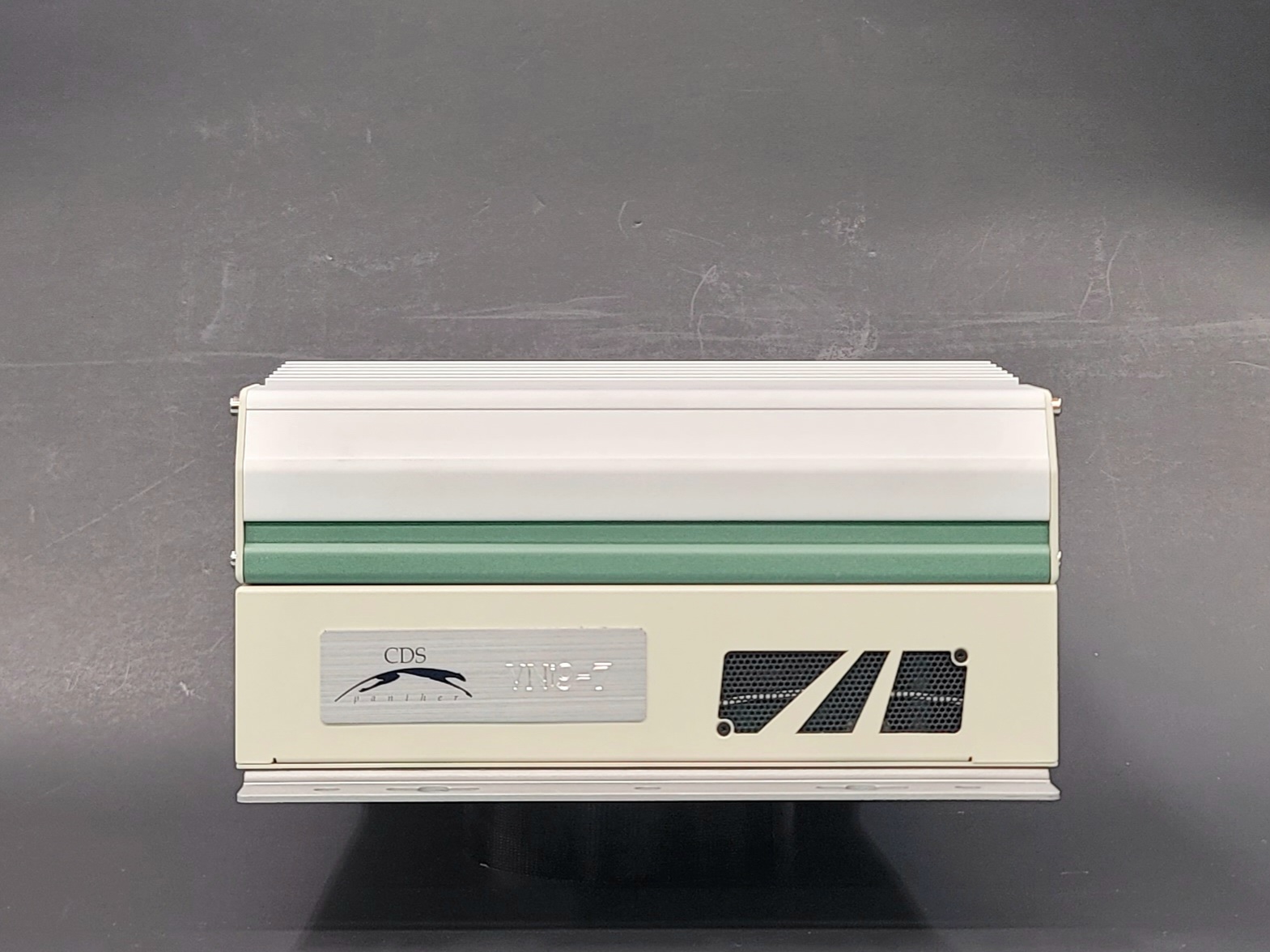

VNi9 Small Foot Print Fanless Computer

    This CDS VNi9 Embedded SFP Computer is powered by the 12th Gen Intel® Core™ i7-12700E or the Intel® Core™ i9 Processor and is complimented by an Intel® Q670E Chip Set and an Integrated Intel® UHD Graphics 770 (32EU) / 730 (24EU) Processor. It consists of 32GBs of DDR5 4800 SDRAM, expandable to 64GB. It comes with a 512GB M.2 SSD for storage, which is upgradeable. The VNi9 includes 6x Ethernet Ports. An optional 4x PoE Ports are available. It includes 9x USB Ports with a mix of Type-A, Type-C and Standard. The integrated graphics controller has 1x 1920x1200 resolution VGA port, 1x 1920x1200 resolution DVI port and 4096x2304 resolution Display Port. It includes 4x RS-Serial Ports with a mix of 232/422/485 ports. The Expansion bus includes 2x PCIe x16 Gen3 Slots and 1x full-size mini PCI Express Socket. Power requirement is 8~48Volt DC Input via a 3-Pin Phoenix contact socket. The OS included is Win10 IoT Enterprise LTSB 2016 OEI High End EPKEA ESD. *Small Foot Print - 9.5”(W) x 9.0”(D) x 4.5”(H) L3942

Description:

Model: CDS-VNi9

The CDS-VNi9 Industrial Embedded Computer is a compact SFP small foot print unit able to fit in tight corners. It's powered by an Intel® Core™ i7-12700E 12th Generation CPU and an Intel® Q670E Chip Set and an Integrated Intel® UHD Graphics 770 (32EU) / 730 (24EU) Processor. 4x 2.5GBASE-T Ethernet ports by Intel® I226-IT GbE controllers * Optional IEEE 802.3at PoE+ PSE for 4x2.5GbE ports 100 W total power budget * 4x USB 3.2 Gen1 (5 Gbps) ports * 2x USB 2.0 ports * 1x VGA output, supporting 1920 x 1200 resolution * 1x DisplayPort, supporting 4096 x 2304 resolution * 1x software-programmable RS-232/422/485 ports (COM1) * 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2) * 1x 3.5 mm jack for mic-in and speaker-out * 4-CH isolated DI and 4-CH isolated DO * Mini PCI Express - 2x full-size mini PCI Express sockets with internal SIM sockets * M.2 E key - 1x M.2 2230 E key socket for WiFi5, WiFi6 or Google edge TPU module * SATA HDD 1x hot-swappable 2.5" HDD/ SSD tray for 7mm HDD/ SSD * M.2 1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD * RAM 16GB DDR5-5200GHz SODIMM PC5-5200 CL=19 Dual Ranked Unbuffered NON-ECC 1.2V  * SSD 512GB M.2 NVMe PCIe 2280 970PRO (TLC) 0°C ~ 70°C / 32°F ~ 158°F (Operating) * DC Input 1x3-Pin Pluggable Terminal Block for 8~35 VDC * Dimensions 9.5”(W) x 9.0”(D) x 4.5”(H) * Win10 IoT Enterprise LTSB 2016 OEI High End EPKEA ESD.

Specifications :

Enclosure

SFP

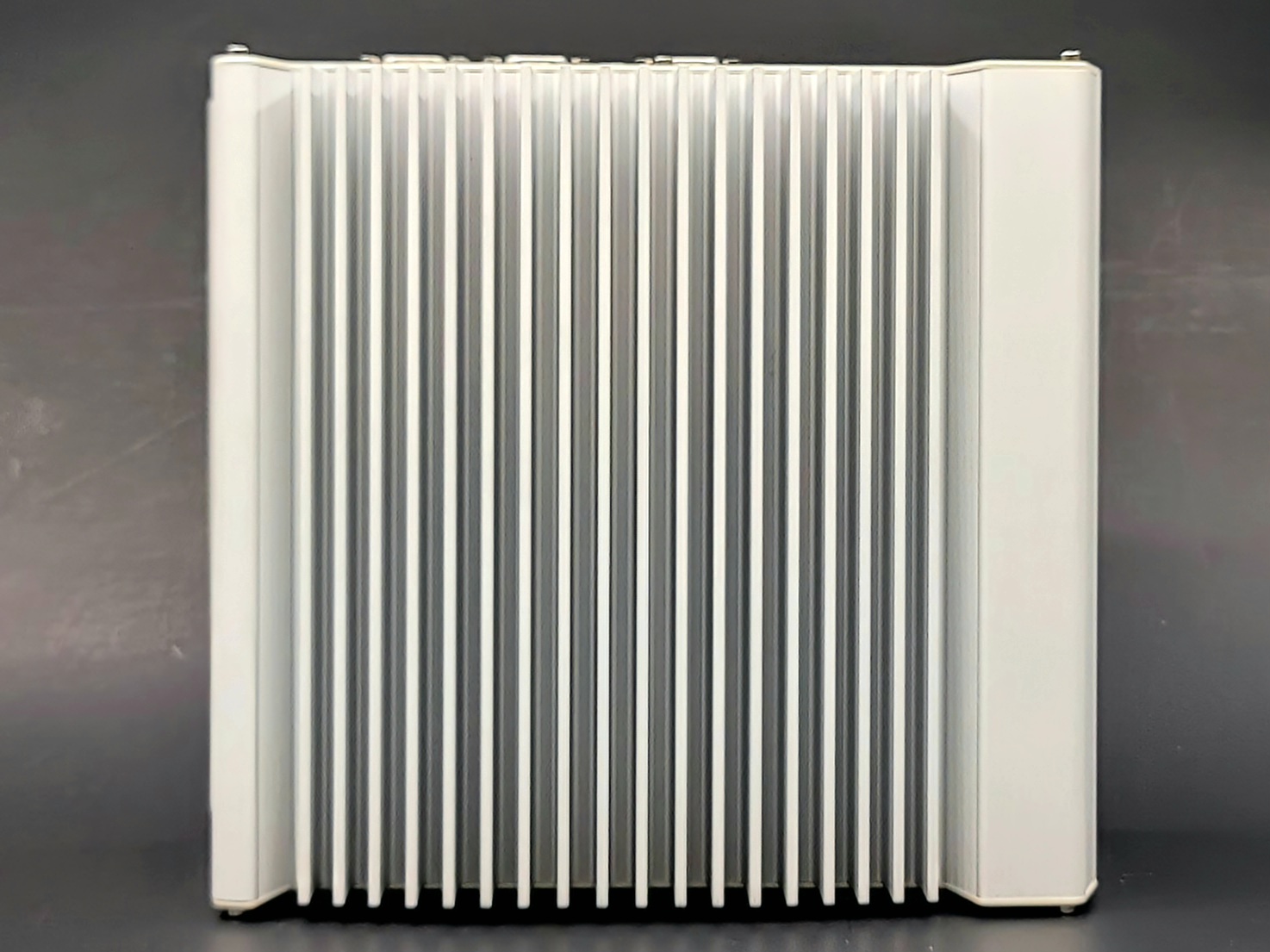

Small Foot Print Embedded Computer is 9.5”(W) x 9.0”(D) x 4.5”(H). Consists of of a n Extra Large 9.0" x 4.5" Heat Sink

Processor (s)

Intel®

 Intel® Core™ i7-12700E

System Board

DC Input

1x 3-pin pluggable terminal block for 8 to 48V DC input
Remote Ctrl. & LED Output

1x 3-pin pluggable terminal block for remote control and PWR LED output

Chip Set

Intel® Q670E

Intel® Q670E platform controller hub

Expansion Slots

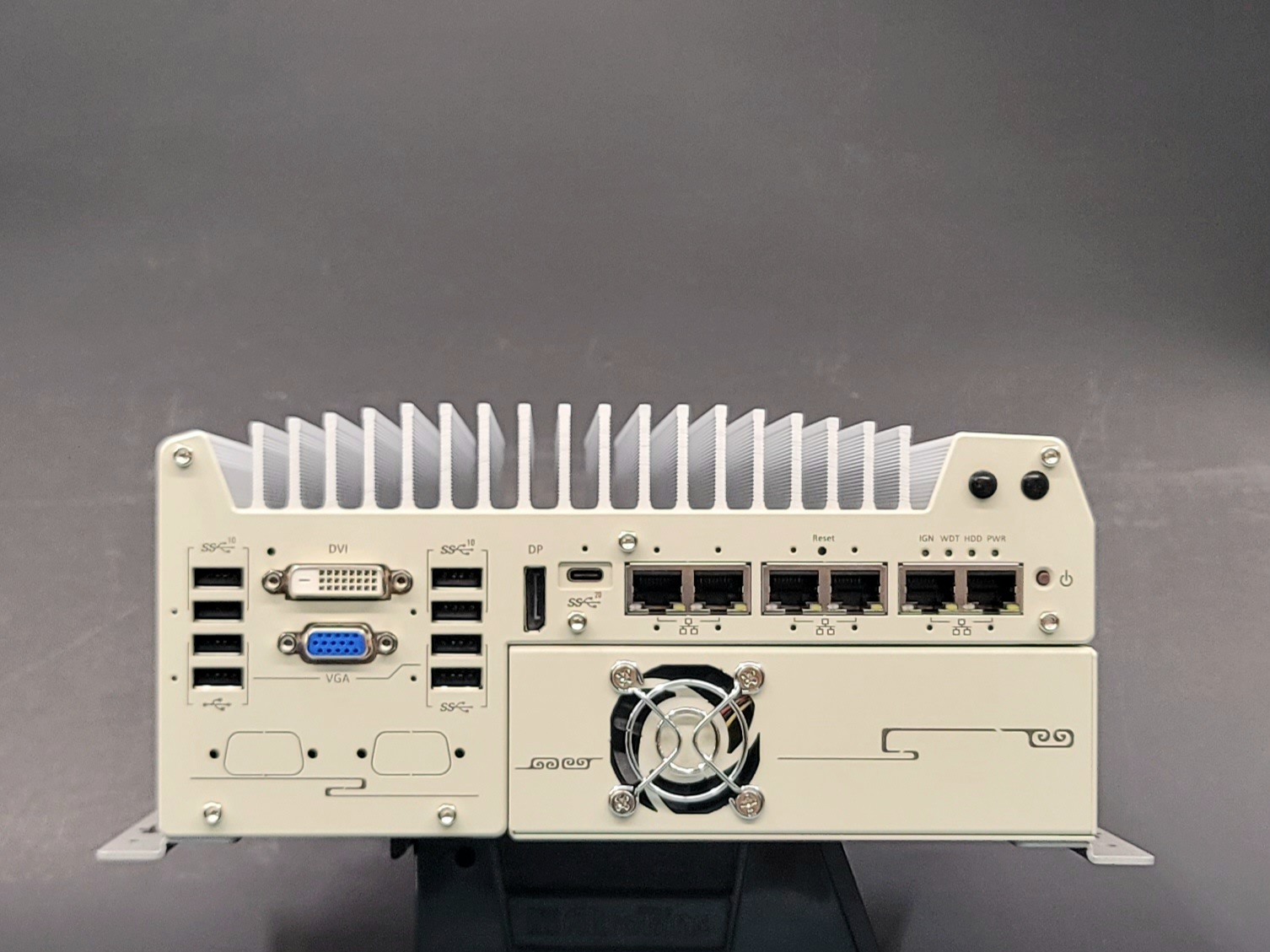

Ethernet Ports

1x 2.5G Ethernet by I225-IT and 1x Gigabit Ethernet by I219-LM (Nuvo-9002E/ P/ DE/ LP) with screw-lock
5x 2.5G Ethernet by I225-IT and 1x Gigabit Ethernet by I219-LM (Nuvo-9006E/ P/ DE/ LP) with screw-lock
Optional PoE+

Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6 100 W total power budget
Expansion Slots

2x PCIe x16 slots@Gen3, 8-lanes PCIe signals

Memory

SODIMM Standard

32GB consisting of 2x16GB DDR5-4800 SODIMM

Fixed Disk(s)

Disk 1 M.2

512Gb M.2 SSD V-NAND reliability backed by 5 Year Warranty

Drive Controller(s)

SATA HDD

2x internal SATA port for 2.5” HDD/ SSD installation, supporting RAID 0/ 1(Nuvo-9000E/ 9000P/ 9000DE)
1x hot-swappable 2.5" HDD tray (7mm HDD/ SSD) and 1x internal 2.5" SATA port (Nuvo-9000LP)
M.2 NVMe

1x M.2 2280 M key NVMe socket (PCIe Gen4x4) for NVMe SSD

I/O Ports

USB

1x USB 3.2 Gen2x2 (20 Gbps) port in type-C connector with screw-lock
4x USB 3.2 Gen2x1 (10 Gbps) ports in type-A connectors
2x USB 3.2 Gen 1x1 (5 Gbps) ports in type-A connectors
2x USB 2.0 ports

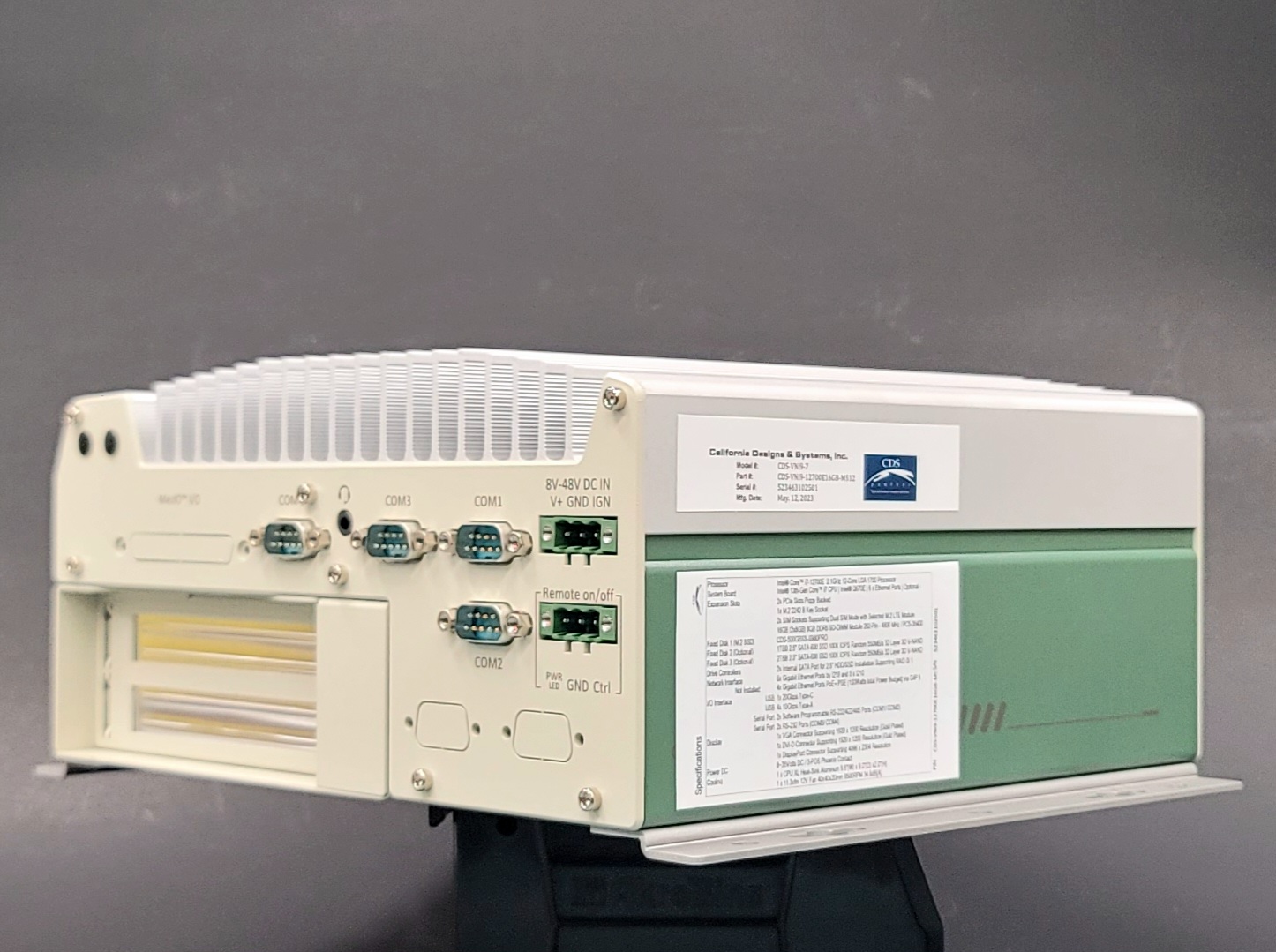

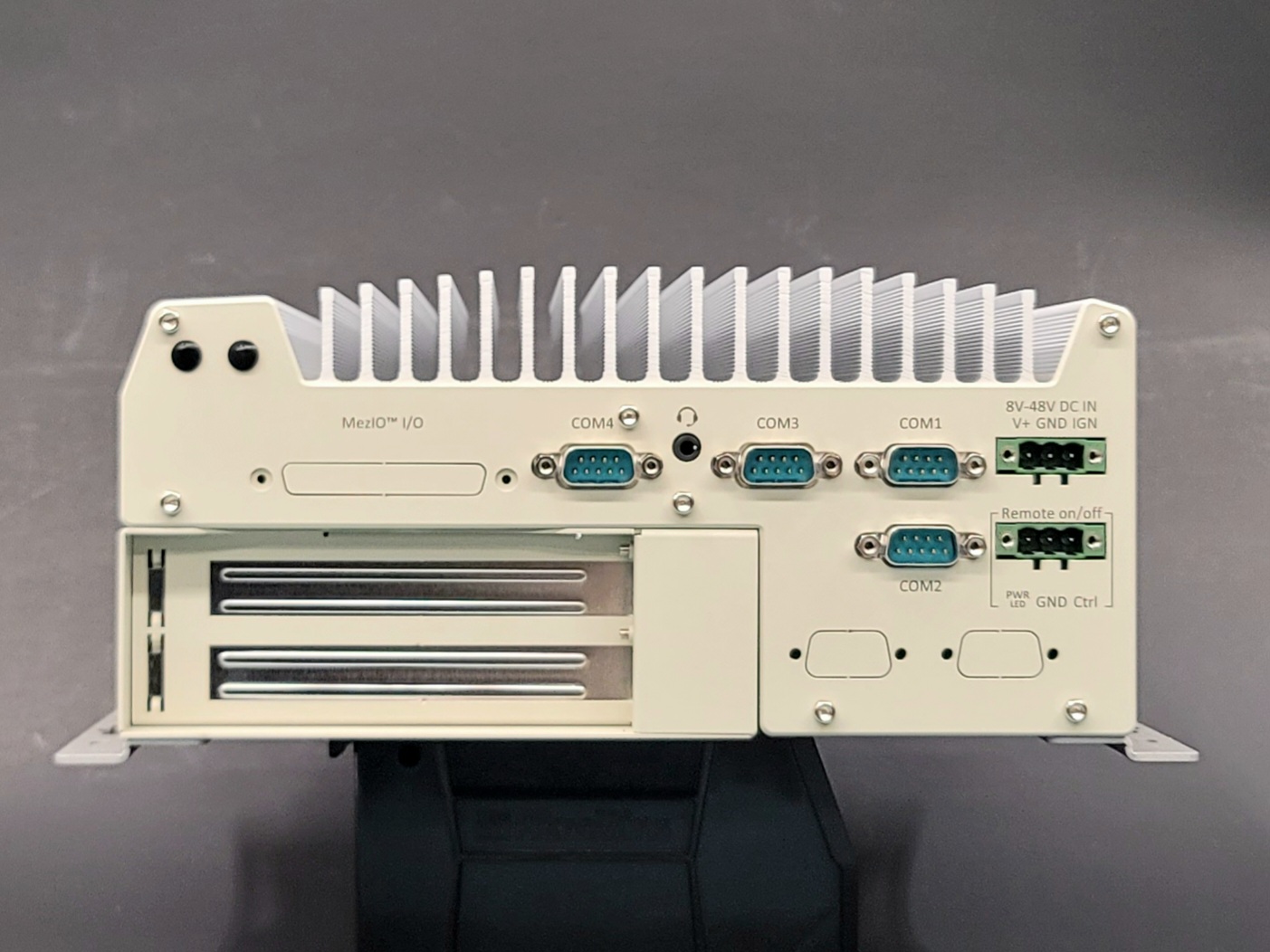

Serial Port

2x software-programmable RS-232/ 422/ 485 ports (COM1/ COM2)
2x RS-232 ports (COM3/ COM4)
Audio

1x 3.5 mm jack for mic-in and speaker-out

Display Adapter

Video Port (Integrated Graphics)

1x VGA, supporting 1920 x 1200 resolution
1x DVI-D, supporting 1920 x 1200 resolution
1x DisplayPort, supporting 4096 x 2304 resolution

Dimensions

Standard

Dimensions 9.5”(W) x 9.0”(D) x 4.5”(H)

Warranty

Limited Warranty

2 Year Limited Warranty
