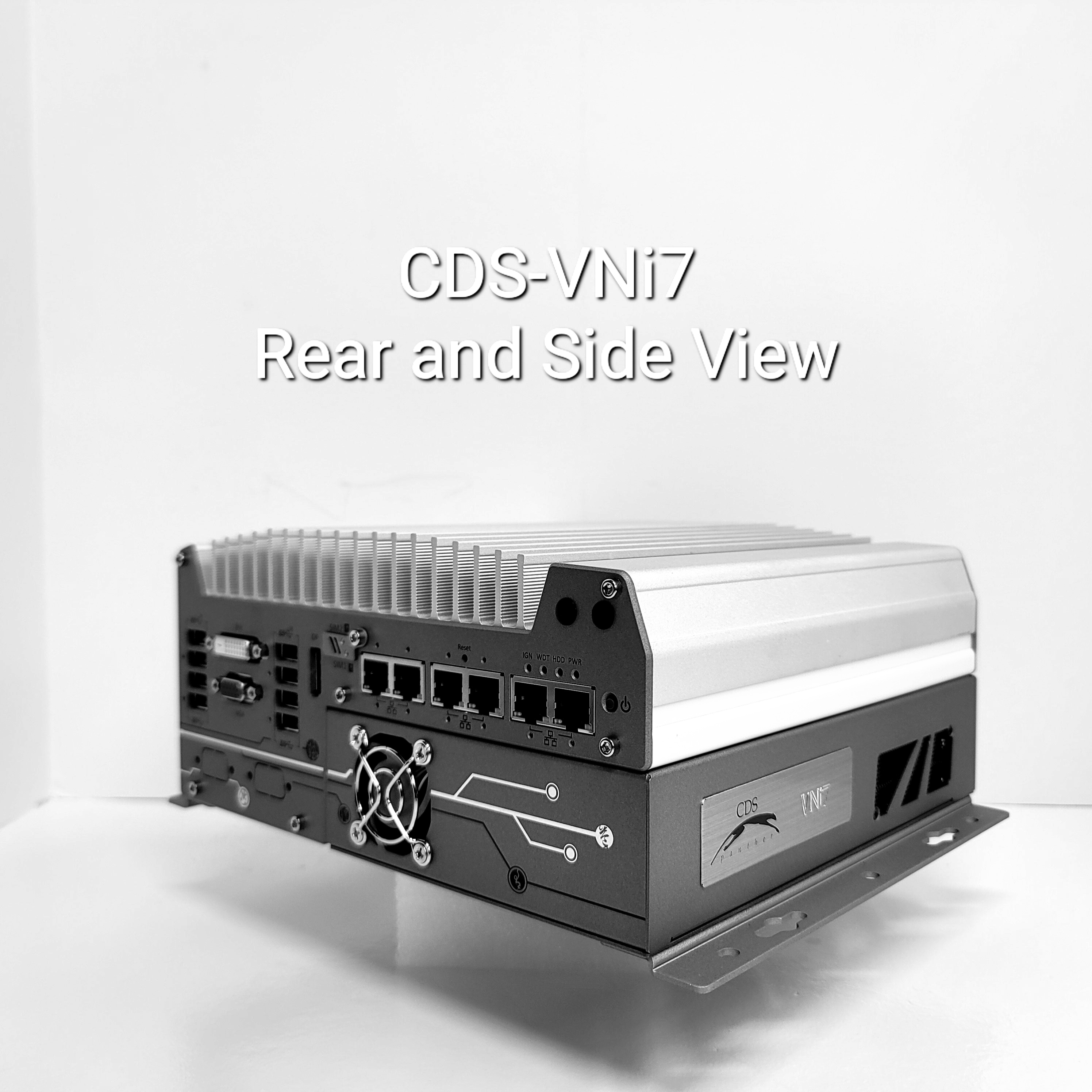

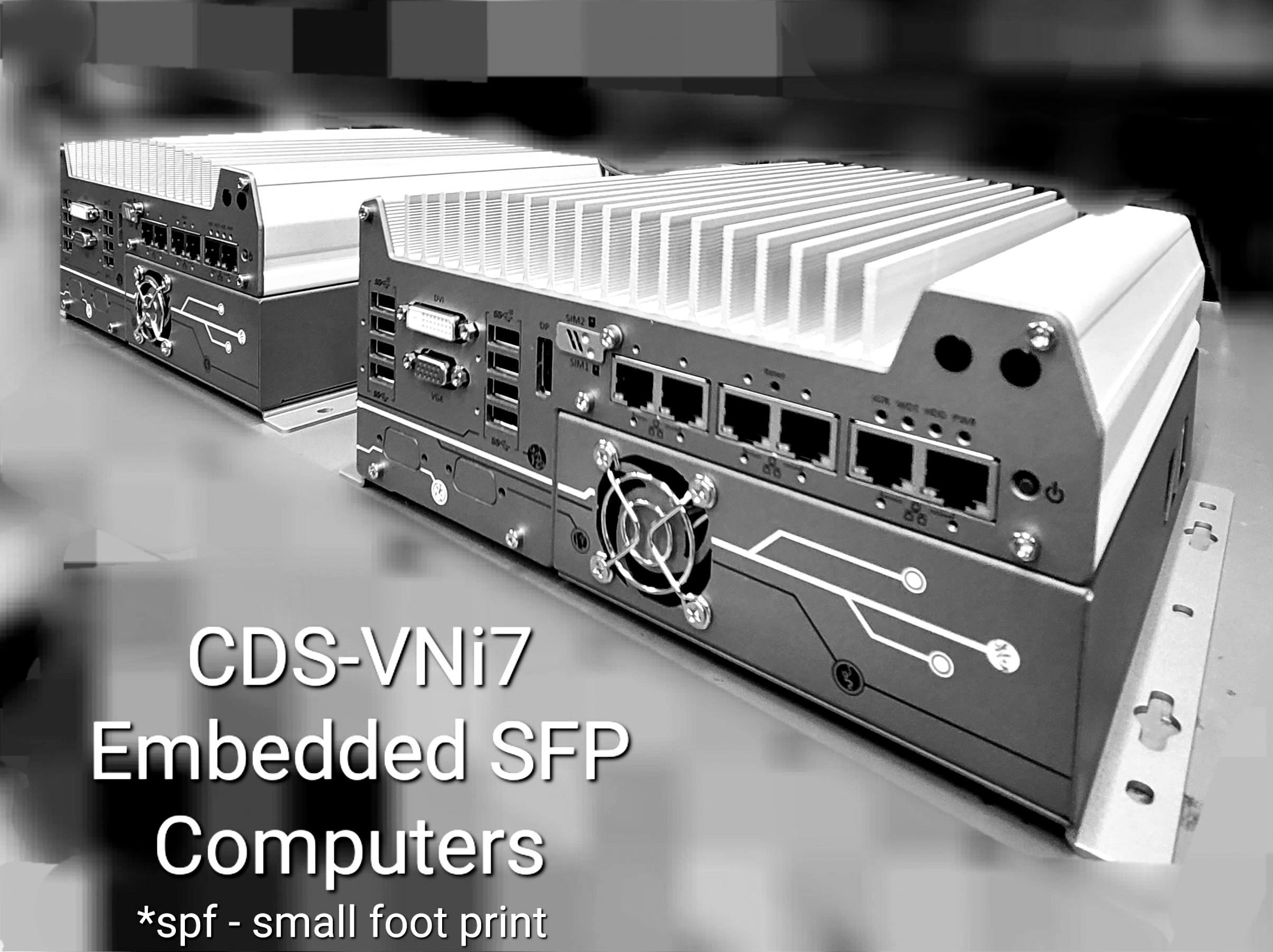

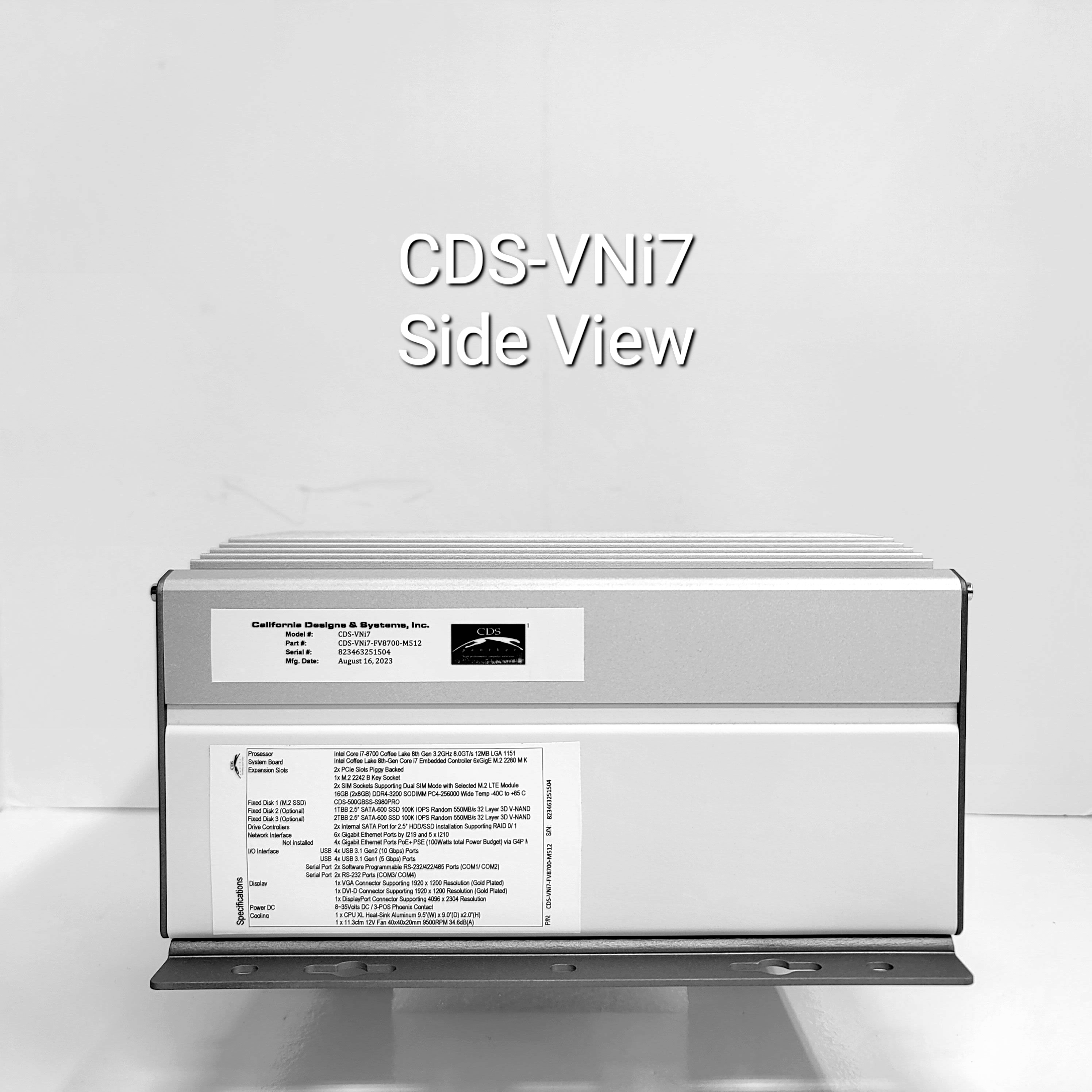

CDS VNi7 Embedded Computer: CPU Intel i7-8700 * Ethernet 6x GbE (Optional 4x PoE+ GbE) * RAM 16GB DDR4-3200 SODIMM PC4-256000 CL=19 Dual Ranked Unbuffered NON-ECC 1.2V * SSD 512GB M.2 NVMe PCIe 2280 970PRO (TLC) 0°C ~ 70°C / 32°F ~ 158°F (Operating) * DC Input 1x3-Pin Pluggable Terminal Block for 8~35 VDC * Dimensions 9.5”(W) x 9.0”(D) x 4.5”(H) * Win10 IoT Enterprise LTSB 2016 OEI High End EPKEA ESD L3690
| Chassis Configuration |

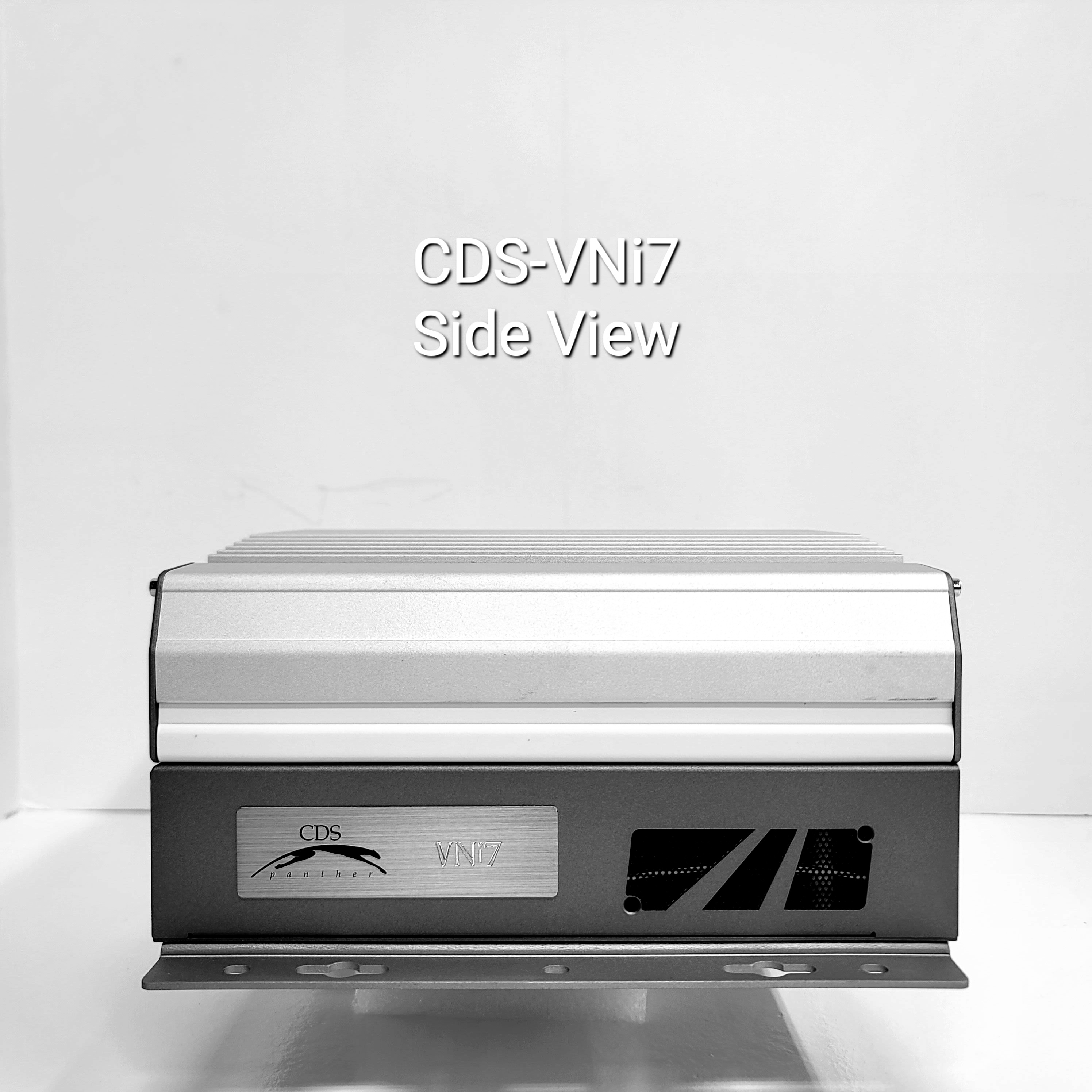

Stand Alone Modular XL Heat-Sink Design Panel Door or Wall Mount |
| Intel |
Intel Core i7-8700 Coffee Lake 8th Gen 3.2GHz 8.0GT/s 12MB LGA 1151 |

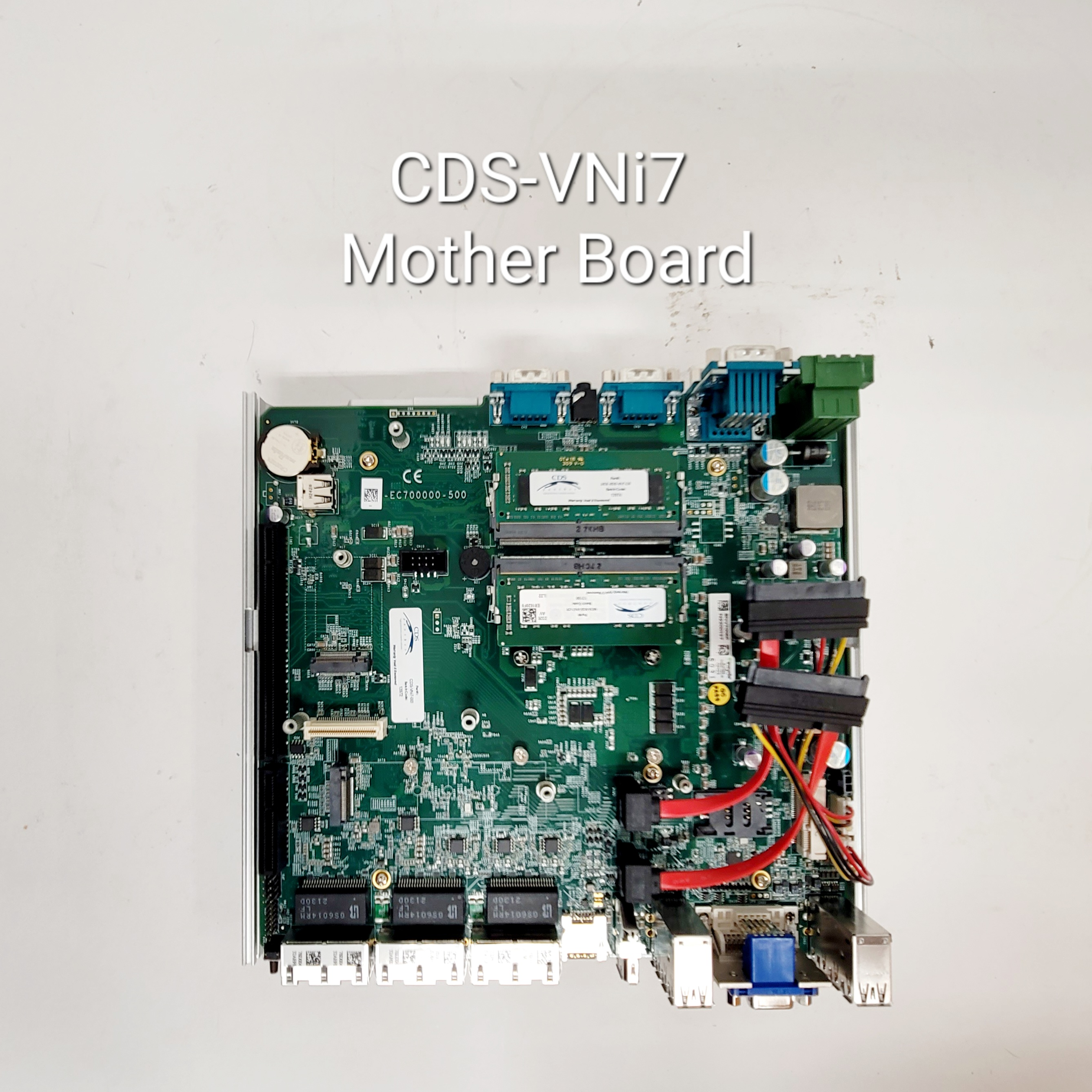

| Mother Board |
Intel® Coffee Lake 8th-Gen Core i7 Embedded Controller 6xGigE M.2 2280 M Key Socket (Gen3 x4) 8xUSB 3.1 VGA DVI DP Piggybacked 4xGigE Board Installed 2-Slot PCIe Cassette Installed |
| Intel® Chip Set |
Intel® Q370 Platform Controller Hub |
| Expansion Slots |

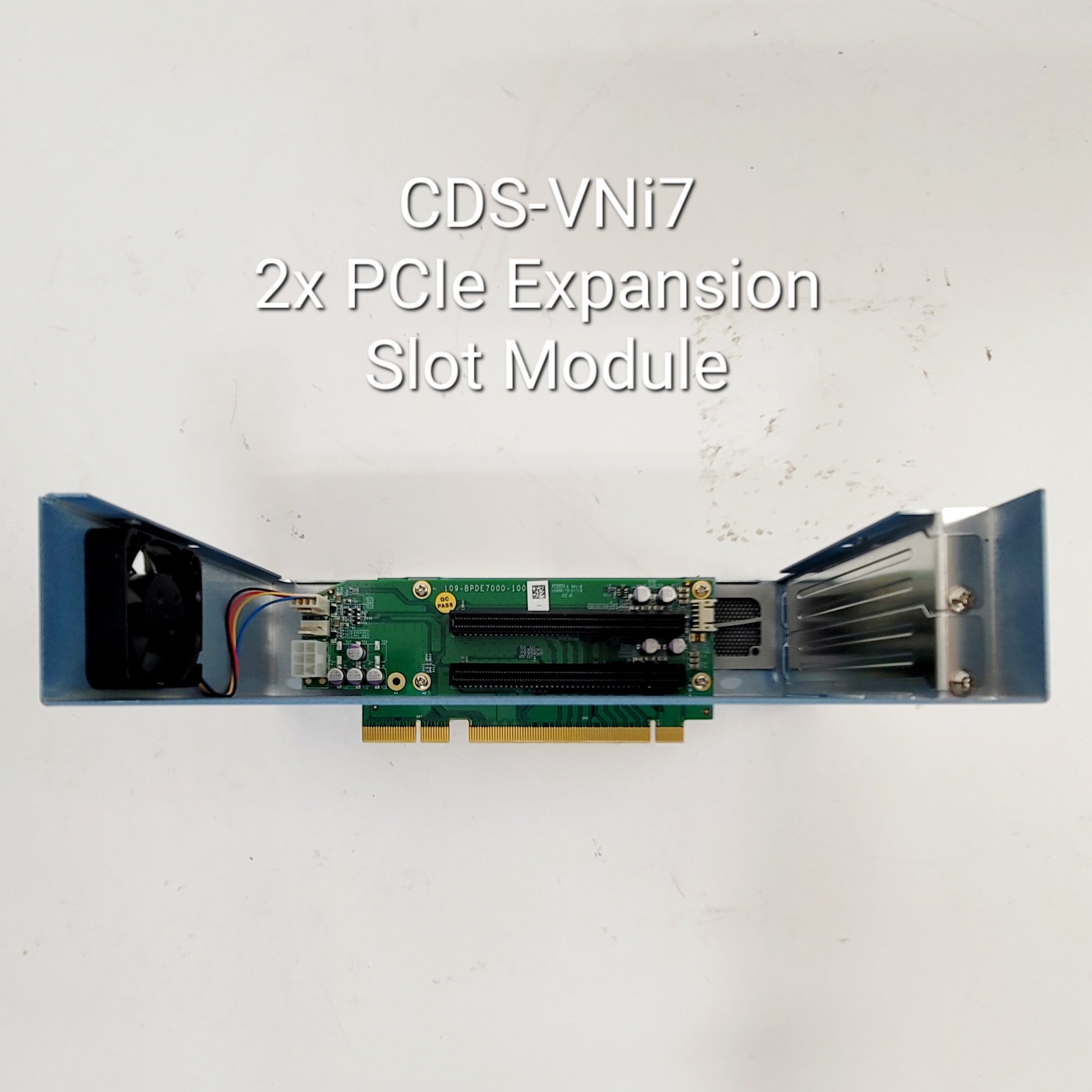

2x PCIe Slots Piggy Backed 1x M.2 2242 B Key Socket 2x SIM Sockets Supporting Dual SIM Mode with Selected M.2 LTE Module |
| BIOS Version |
Insyde Software BIOS Build 190708 Version NV7KA003 Date 07/08/2019 |
| SODIMM Standard |
16GB (2x8GB) DDR4-3200 SODIMM PC4-256000 Wide Temp -40C to +85 C |
| SODIMM Optional |
Up to 64GB DDR4 SO-DIMM 260-Pin 2666/2400 SDRAM Two SODIMM Slots 2x32GB |
| Fixed Disk 1 (M.2 SSD) |
512GB NVMe PCIe M.2 2280 SSD Samsung SSD 980 PRO Black/Red |
| Fixed Disk 2 (Optional) |
1TBB 2.5" SATA-600 SSD 100K IOPS Random 550MB/s 32 Layer 3D V-NAND |
| Fixed Disk 3 (Optional) |
2TBB 2.5" SATA-600 SSD 100K IOPS Random 550MB/s 32 Layer 3D V-NAND |
| SATA Drive Bays |
2 Drive Mounting Bays 2.5" SATA Drives |
| SATA HDD |
2x Internal SATA Port for 2.5" HDD/SSD Installation Supporting RAID 0/ 1 |
| M.2 Drive |
1x M.2 2280 M key socket (PCIe Gen3/ x4) for NVMe SSD |
| mSATA |
1x full-size mSATA port (mux with mini-PCIe) |

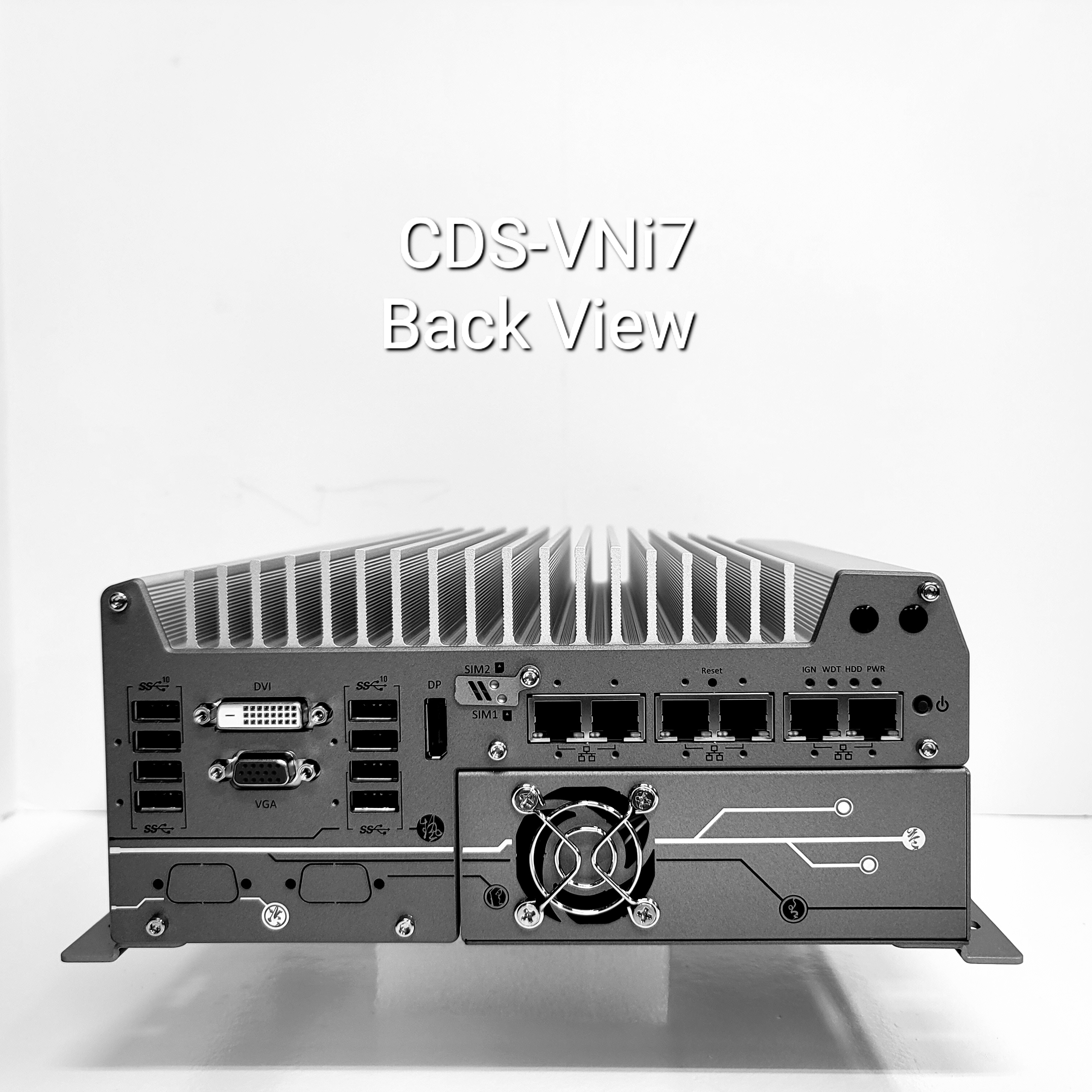

| 6x Gigabit |
6x Gigabit Ethernet Ports by I219 and 5 x I210 |
| 4x Gigabit PoE (Optional) |
4x Gigabit Ethernet Ports PoE+ PSE (100Watts total Power Budget) via G4P Module |
| 4x Gigabit Ethernet (Optional) |
LAN11, LAN12, LAN 13 & LAN14 Ethernet Intel PRO/1000 4-Port NIC Intel PRO/1000 PT Server Adapter x4 EN Fast EN Gigabit EN 10Base-T 100Base-TX 1000Base-T 4 Ports |
| USB |
4x USB 3.1 Gen2 (10 Gbps) Ports |
| USB |
4x USB 3.1 Gen1 (5 Gbps) Ports |

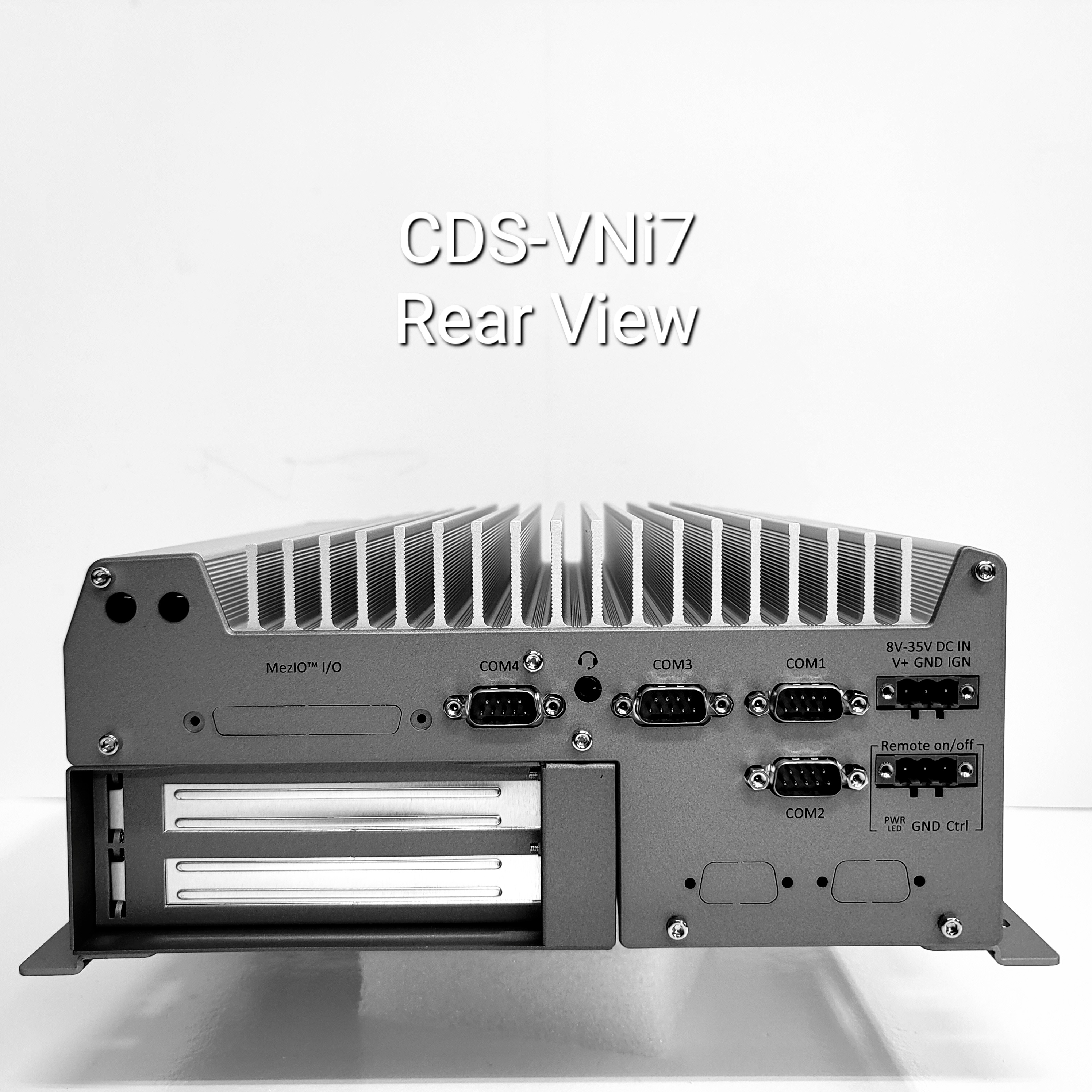

| Serial Port |
2x Software Programmable RS-232/422/485 Ports (COM1/ COM2) |
| Serial Port |
2x RS-232 Ports (COM3/ COM4) |
| 1x VGA Port |
1x VGA Connector Supporting 1920 x 1200 Resolution (Gold Plated) |
| 1x DVI-D Port |
1x DVI-D Connector Supporting 1920 x 1200 Resolution (Gold Plated) |
| 1x DisplayPort |
1x DisplayPort Connector Supporting 4096 x 2304 Resolution |
| Intel® UHD Graphics 630 |
3 Independent Ports Integrated Intel® UHD Graphics 630 |
| 24Volt DC Power Input |
8~35Volts DC / 3-POS Phoenix Contact |
| Temperatures |
-25°C ~ 50°C |
| Humidity |
10% ~ 90% Non-Condensing |
| Cooling Fan Optional |
1 x 11.3cfm 12V Fan 40x40x20mm 9500RPM 34.6dB(A) |

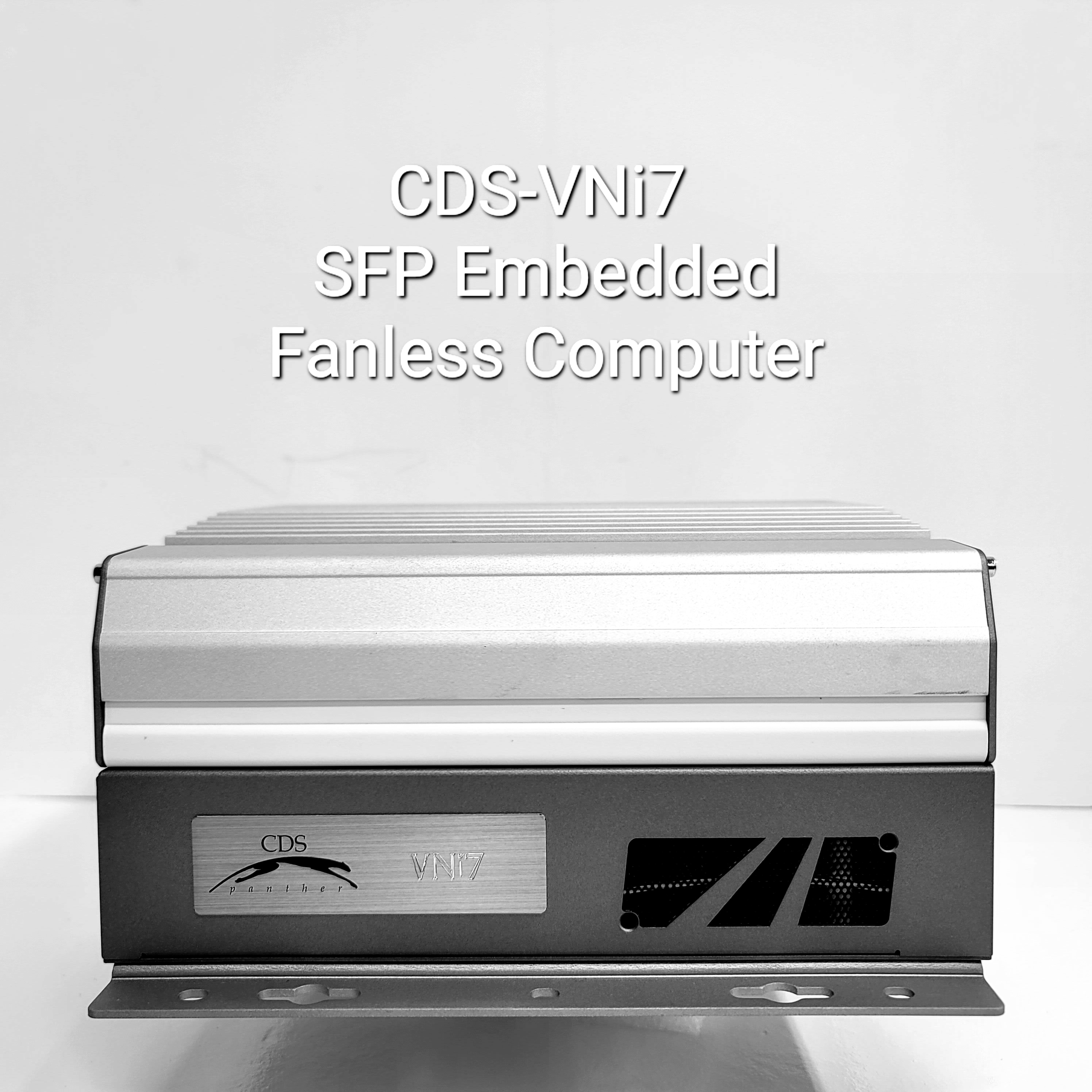

| Giant CPU Heat-Sink |
1 x CPU XL Heat-Sink Aluminum 9.5”(W) x 9.0”(D) x2.0”(H) |
| Microsoft Embedded |
Win10 IoT Enterprise LTSB 2016 MultiLang OEI High End EPKEA (ESD) 6EU-00034 |
| Weight |
8.5Lbs Net Weight |
| Powder Coat |
Off White and Blue Coating |
| Standard |
9.5”(W) x 9.0”(D) x 4.5”(H) |
| Metric |
24.13cm(W) x 22.86cm(D) x 11.43cm(H) |
| Limited Warranty |
2-Year Warranty |
