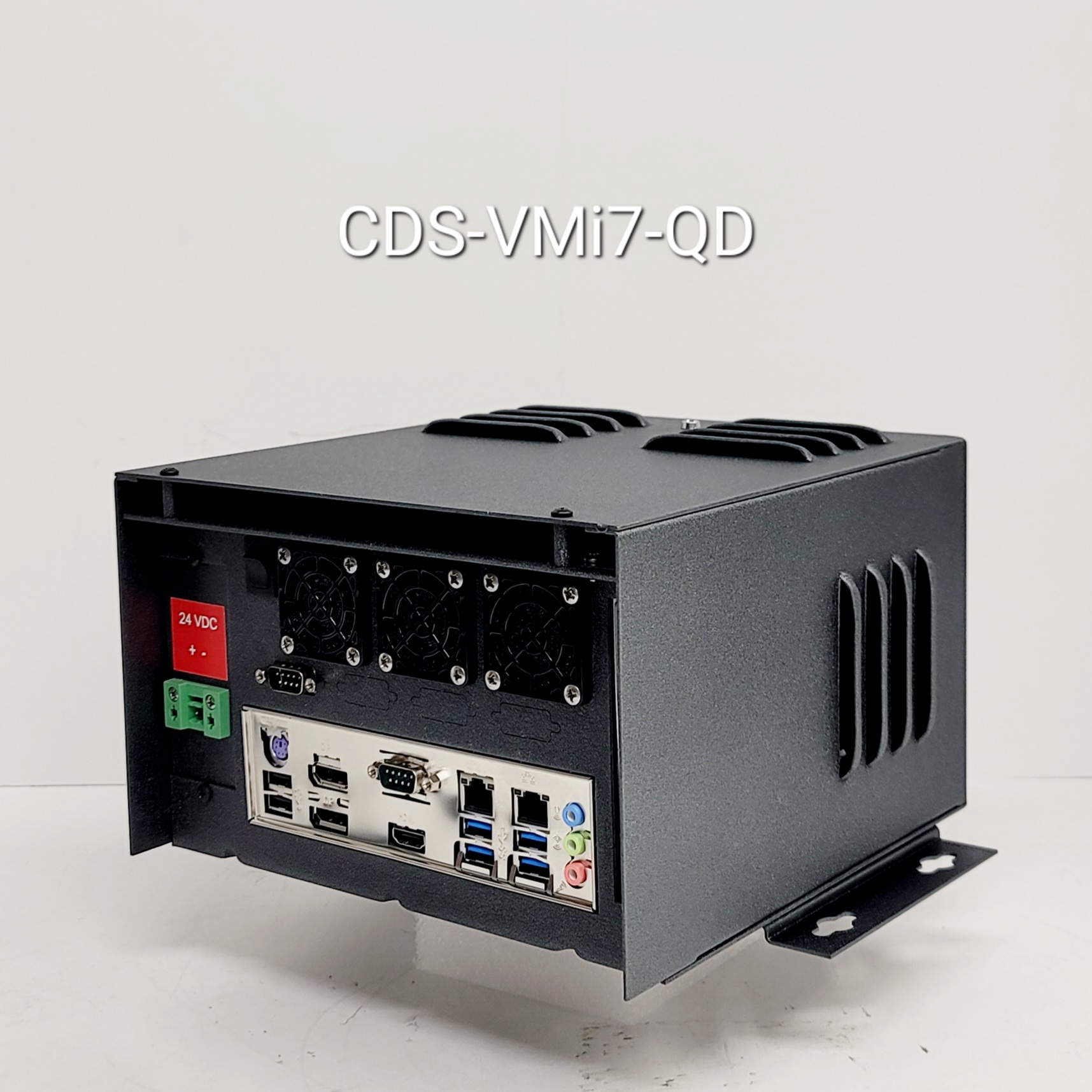

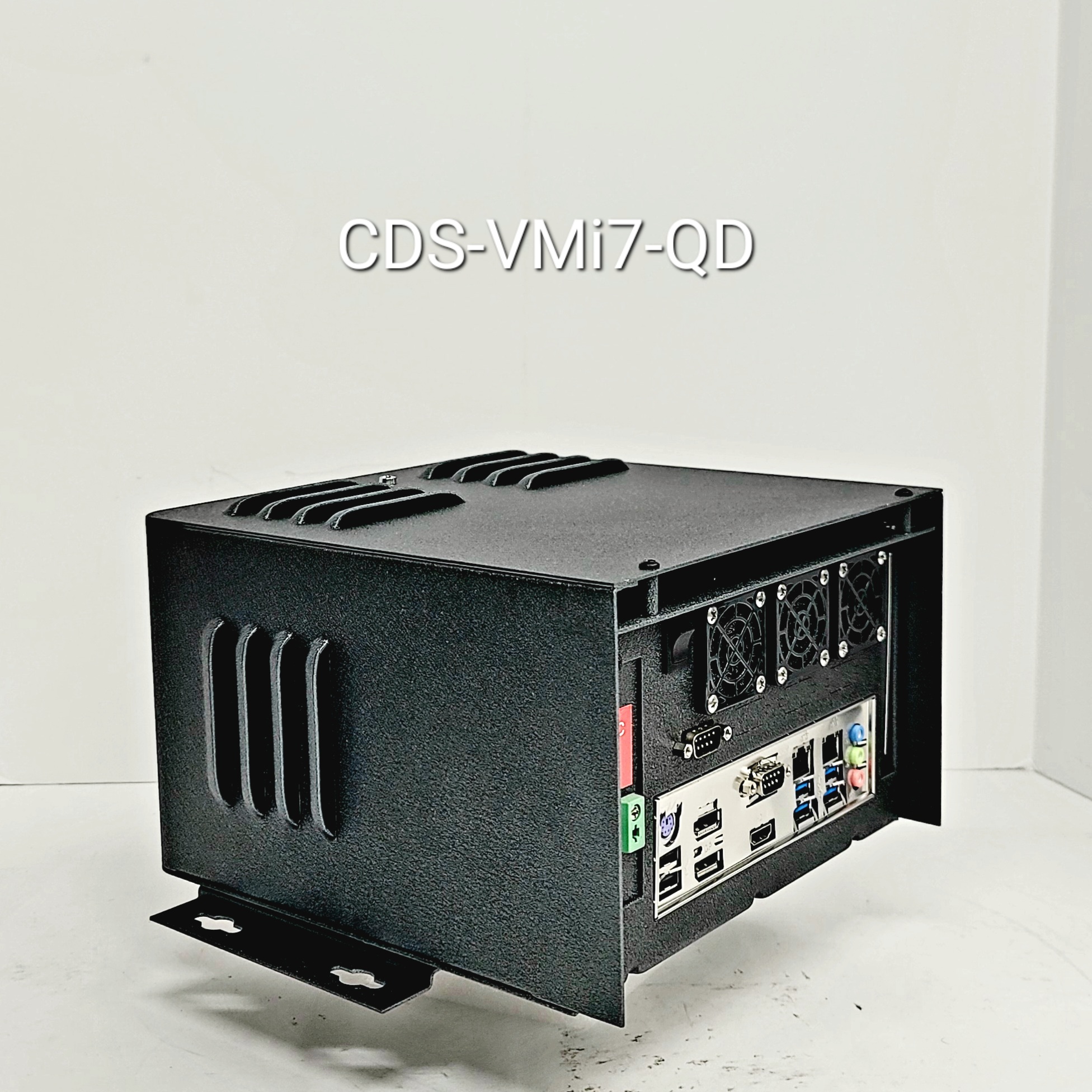

VMi7-QD

VMi7 Splash Proof Computer

    Features: CDS Panther VMi7 Intel® 170QD Embedded Splash Proof Computer: • Intel® Core i7 7700 7th Generation 3.6GHz 4 Cores 8 Threads 8MB CACHE • Intel® Q170 Chipset • 16GB DDR4 System Memory 2x (Gold Plated) SODIMM Slots [Max 32GB] • 1x 500GB Internal 2.5" SATA-600 Solid State [Max 4x 500Gb SATA Drives] • 4x SATA III (Gold Plated) Hard Drive Controller Sockets • 3x Positive Pressure Cooling PP3F 80cfm Fans • 2x DP++ (Gold Plated), 1 x HDMI (Gold Plated), 1 x LVDS • Optional eDP • 6x USB 3.0 (Gold Plated) • 4x USB 2.0 (Gold Plated) • 2x COM Ports • 1x PCIe x16 (Gold Plated) • 1x mini-PCIe (Gold Plated) with SATA Support • 1x M.2 (Gold Plated) (2280 or 2242) • 24Volt DC Power Input • iAMT 11.0 • TPM 2.0 • Power In-Put 12V, 16 - 24V DC via 1x 4-Pin DC-In (Gold Plated)Socket

Description:

Model: VMi7-QD

CDS Panther VMi7 Intel® 170QD Embedded Splash Proof Computer: VIM Footprint Core i7 7700K 4.2GHz 4-Core 16GB DDR4 SODIMM 2133MHz PC4-17000 1x500GB PRO850SSD 550/470MB/s Read/Write Hot Swap 24Volt DC-Power In-Put 2xRS232-DB9 3xUSB 4Fan Positive Pressure Cooling Win10 IoT Enterprise LTSB 2016 OEI High End EPKEA ESD L3900

Specifications :

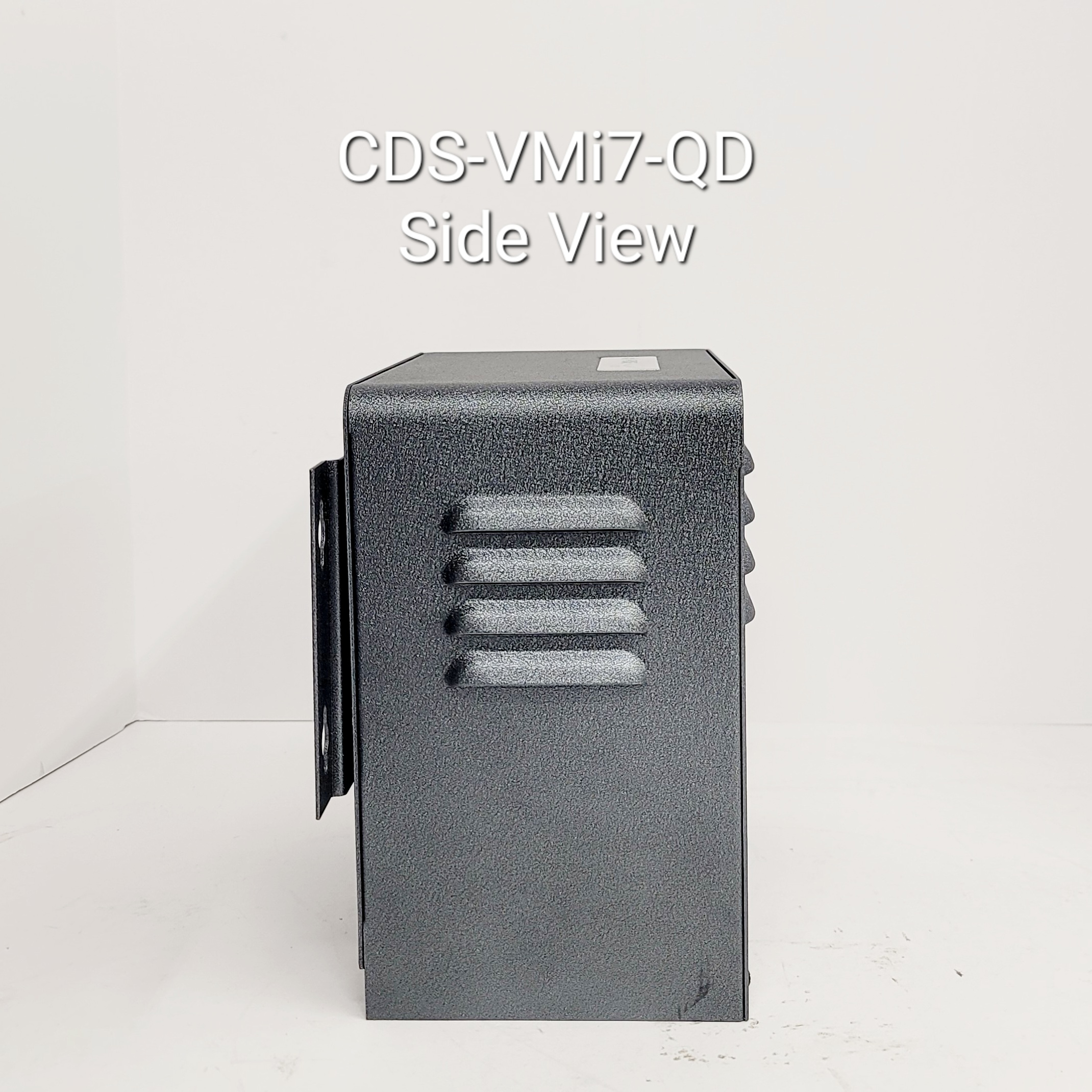

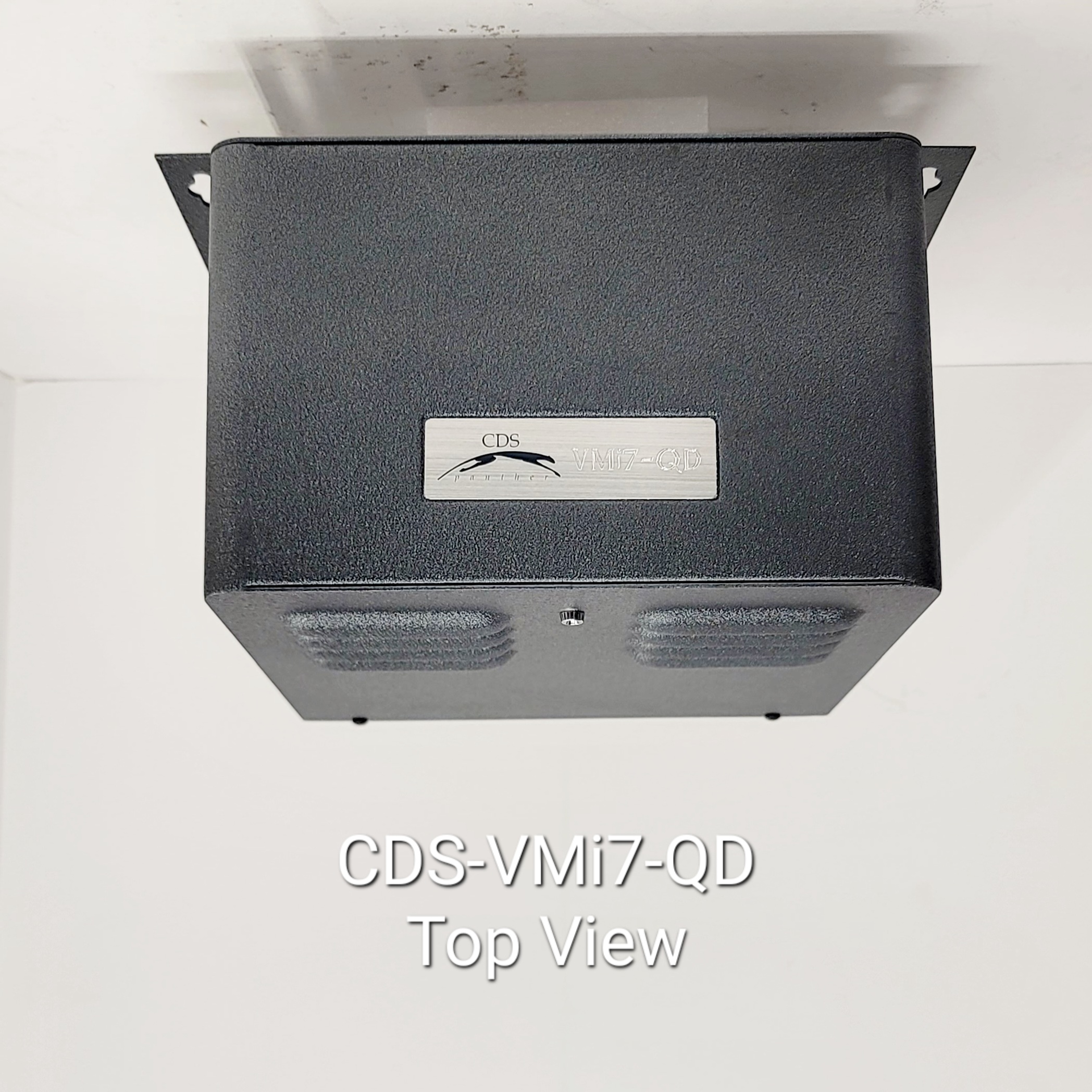

Enclosure

Chassis Configuration

Stand alone splash proof self contained unit 9.5"H x9.0"Wx6.0"D panel door or wall mount

Processor (s)

Intel®

Intel® Core i7 7700 3.6GHz 4 Cores 8 Threads  8MB  Smart CACHE Kaby Lake

System Board

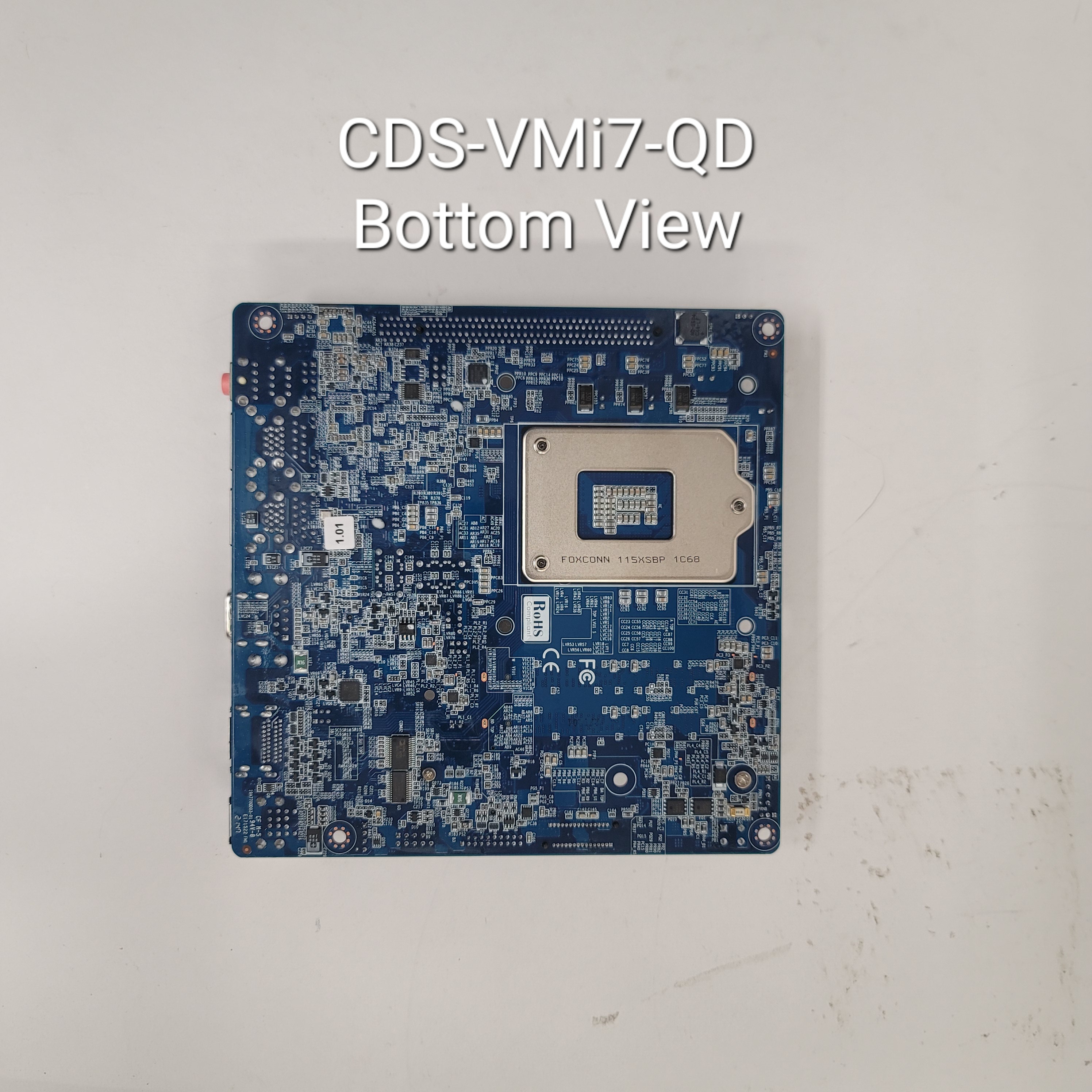

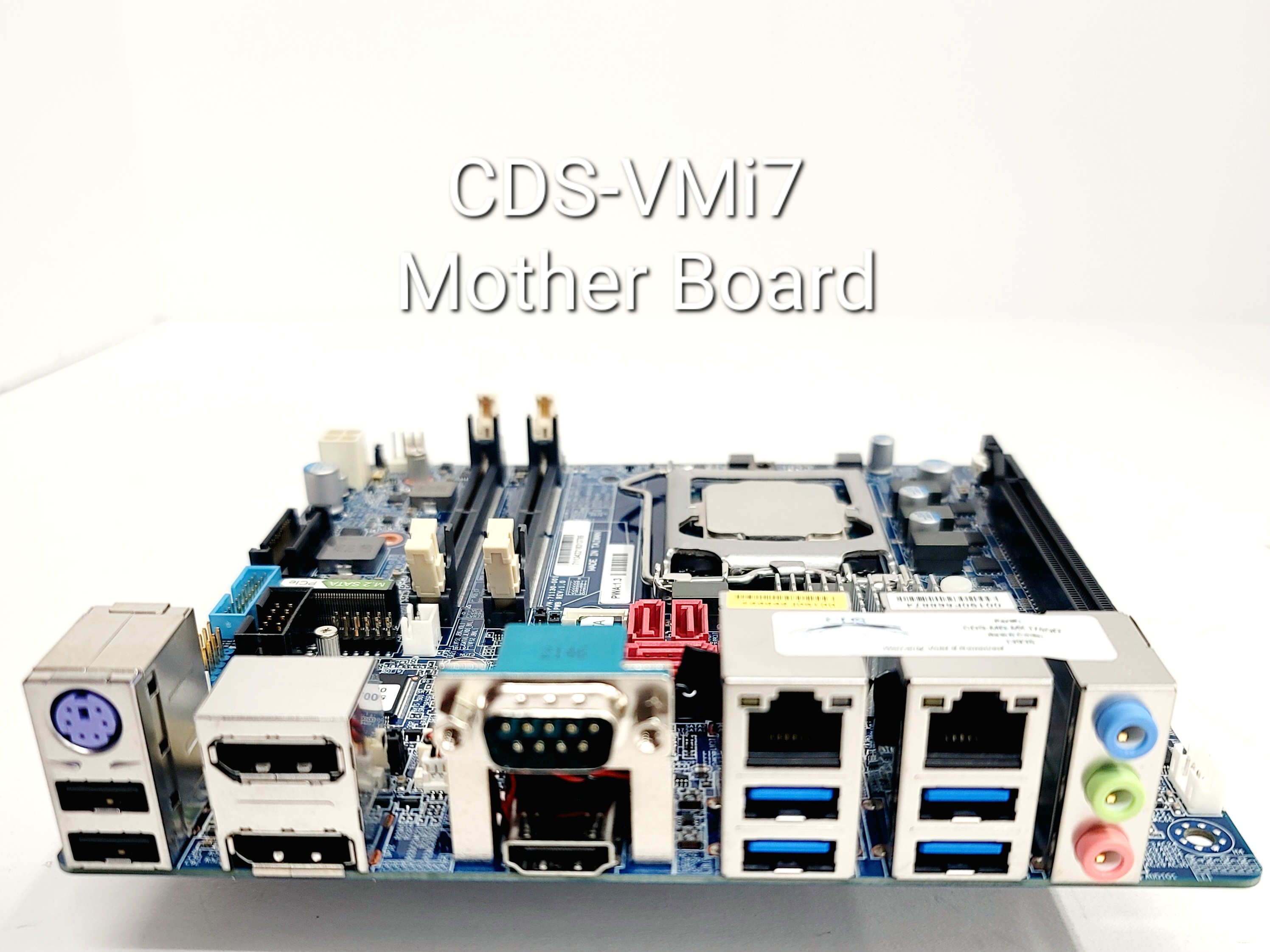

Mother Board

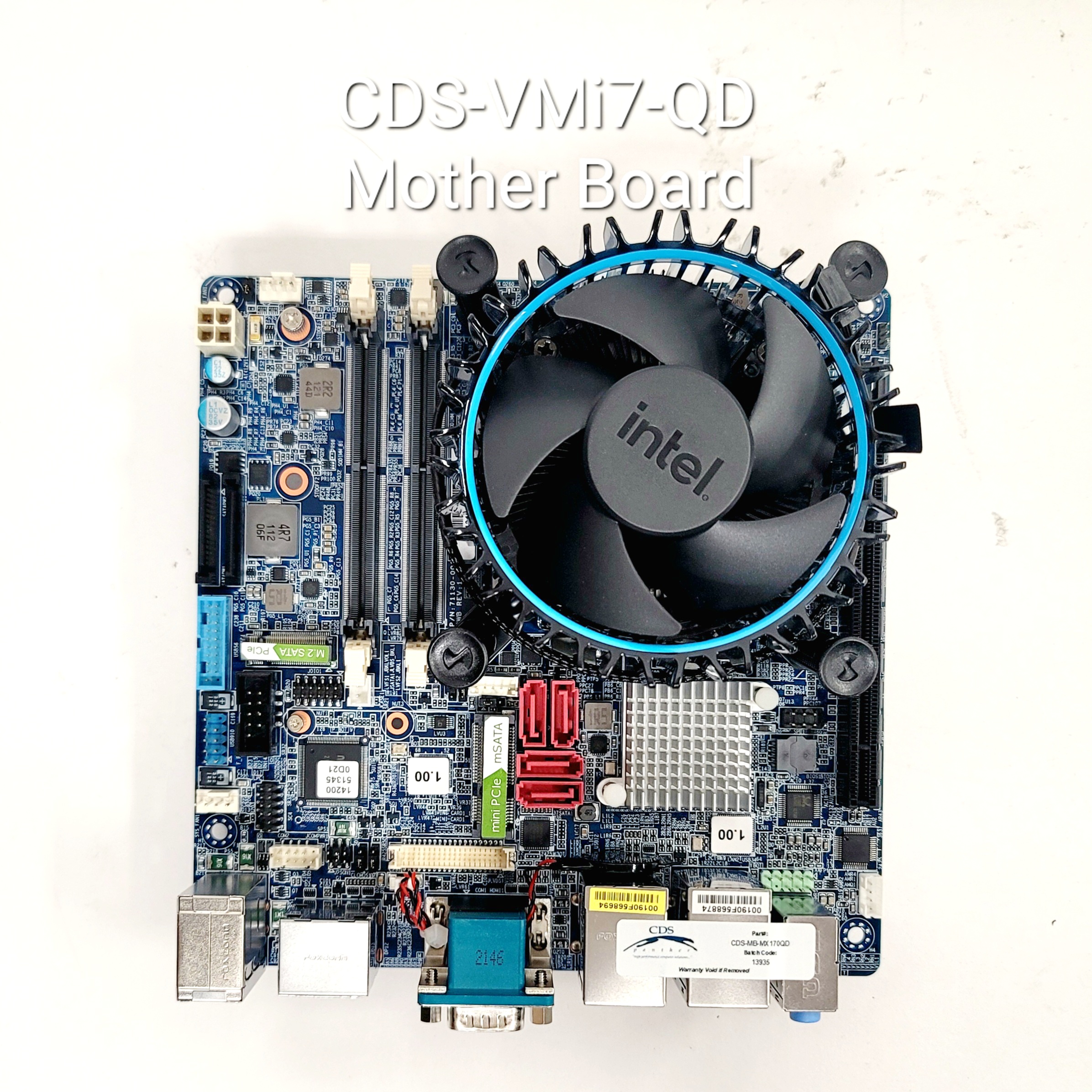

Mother Board Supports Intel® Sky Lake and Kaby Lake i7/i5/i3 Pentium® and Celeron® LGA1151 Socket

Chip Set

Intel® Chip Set

Intel® Q170 PCH Chip Set

Expansion Slots

Expansion Slots

1 x PCIe x 16 Slot (Gold Plated)

1 x Full/Half Size mini-PCIe (mSATA III Support) (Gold Plated)

1 x M.2 Slot (Gold Plated) (Support 2280 and 2242)

BIOS

SPI

128Mb SPI BIOS

Memory

SODIMM Standard

16GB DDR4 2x8GB DDR4 SO-DIMM 260-Pin 2400MHz / PC4-19200 CL15 1.2V Unbuffered Non-ECC
SODIMM Maximum

32GB DDR4 2x16GB SO-DIMM 260-Pin 2133MHz / PC4-17000 CL15

Fixed Disk(s)

SATA SSD

500GB 2.5" SATA-600 SSD 100K IOPS Random 550MB/s 32 Layer 3D V-NAND W10Y
SATA SSD Optional

2TBB 2.5" SATA-600 SSD 100K IOPS Random 550MB/s 32 Layer 3D V-NAND W10Y
M.2 SSD Optional

512Gb M.2 SSD V-NAND reliability backed by 5 Year Warranty Optional
Hot-Swap Drive Bay Optional

Dual SATA SSD 2.5" Hot Swap Drive Bay Assembly Optional

Quad SATA SSD 2.5" Hot Swap Drive Bay Assembly Optional

Drive Bays

SATA Drive Bays

Dual SATA SSD 2.5" Hot Swap Drive Bay Assembly

Drive Controller(s)

SATA III

4 x SATA III and SATA Power Connectors (Gold Plated)

Network Interface

Intel®

LAN1 Ethernet Intel® 82579LM PHY Gigabit LAN Controller
Intel®

LAN2 Ethernet Intel® 82574L PCIe Gigabit LAN Controller
Intel® Quad Gigabit EN (Optional))

LAN3, LAN4, LAN 5 & LAN6 Ethernet Intel PRO/1000 4-Port NIC  Intel PRO/1000 PT Server Adapter x4 EN Fast EN Gigabit EN 10Base-T 100Base-TX 1000Base-T 4 Ports

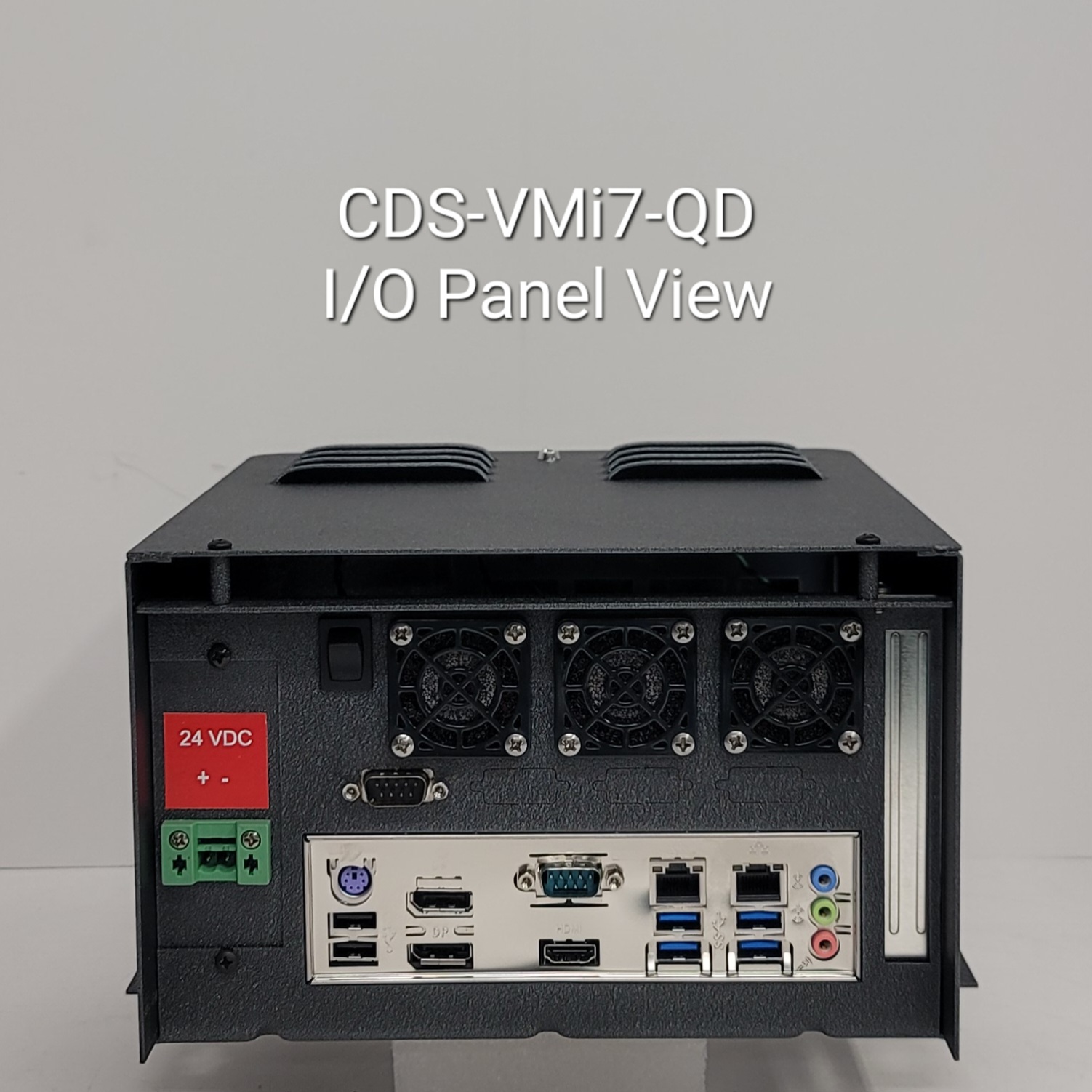

I/O Ports

USB 2.0

1 x USB 2.0 Headers (2 Ports Total) (Gold Plated)
USB 3.0

1 x USB 3.0 Header (2 Ports Total) (Gold Plated)
Serial COM Ports

COM1 RS-232 (with Voltage Selection) (Gold Plated) DB9M/M

COM2 RS-232 (with Voltage Selection) from Header DB9M/M
PS/2 Port

6-Pin Mini DIN PS/2 Port for Keyboard and Mouse *PS2 Y-Cable Included

DISPLAY

Display Ports

2 x Display Port Connectors (Gold Plated)
HDMI Port(s)

1 x HDMI Connector (Gold Plated)
LVDS Socket

1 x 18/24 bits Dual Channel LVDS
eDP

eDP

POWER

DC Power 12V, 16~24Volt

12V, 16 - 24V DC / 2-POS Phoenix Contact *Jumper Set to 24Volt DC

Via 1 x 4-pin DC-in (Gold Plated) Phoenix Contact TERM BLOCK PLUG 4POS

COMPATABILITY

Microsoft

Windows 10 and 11 Compatible

CONNECTORS

Power In-Put

1 x 4-pin DC-in (Gold Plated)
Other

1 x 8-bit GPIO, 1 x LPC, 1 x SPI, 1 x Front Audio, 1 x Front Panel (Gold Plated), 1 x 4-pin CPU Fan, 1 x 4-pin Chassis Fan, 1 x Cable Type CMOS Battery, 1 x Backlight Locking (Gold Flashed), 1 x Chassis Intrusion Locking Type Header (Gold Flashed)

OPERATING CONDITIONS

Temperatures

0~60°C (32~140°F)

5%~90% relative humidity, non-condensing
Relative Humidity

5%~90% relative humidity, non-condensing

Operating System

Microsoft

Win10 IoT Enterprise LTSB 2016 MultiLang OEI High End EPKEA (ESD) 6EU-00034

Software

Driver CD

CDS-VMi7-FV170QD Driver CD

Weight

Lbs

~12Lbs

Finish

Powder Coat

Custom Pacific Silver Splatter Powder Coating or CDS Signature Silver Splatter Powder Coating

Dimensions

Standard

9.5"H x9.0"Wx6.0"D

Warranty

Limited Warranty

2-Year Limited Warranty
