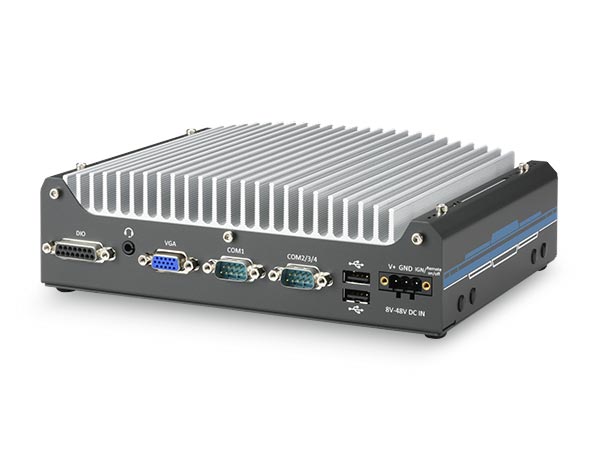

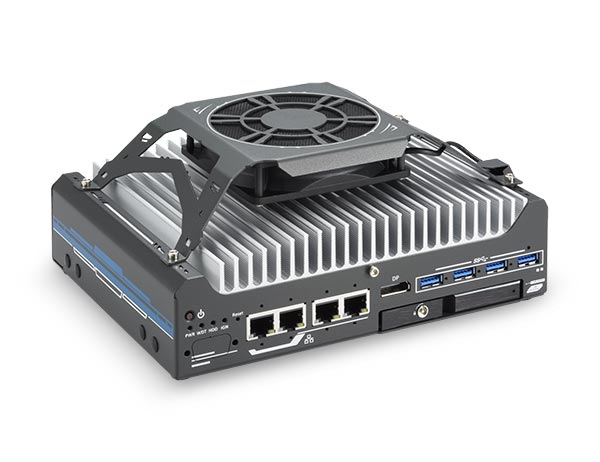

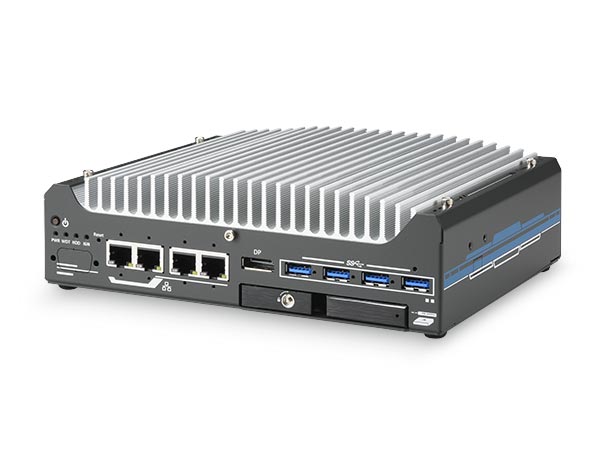

The CDS RAi9 Industrial Embedded SFP Robot Arm Computer is with * CPU Intel i9-8700 * Ethernet 10x GbE 2-Slot PCIe Includes 4x PoE+ IEEE 802.3 at PoE+ PSE * RAM 64GB DDR5-5200GHz SODIMM PC5-5200 CL=19 Dual Ranked Unbuffered NON-ECC 1.2V * SSD 1TB M.2 NVMe PCIe 2280 970PRO (TLC) 0°C ~ 70°C / 32°F ~ 158°F (Operating) * DC Input 1x3-Pin Pluggable Terminal Block for 8~35 VDC * Dimensions 9.5”(W) x 9.0”(D) x 4.5”(H) * Win10 IoT Enterprise LTSB 2016 OEI High End EPKEA ESD L4942
| Chassis Configuration |
Stand Alone Small Foot Print Modular Large Heat-Sink Design for Robot Arm, Panel Door or Wall Mount |
| Intel® |
Intel® Core i9-13900E 13th Gen Raptor Lake 24-Core 3GHz 8.0GT/s 12MB LGA 1700 Socket |
| Intel® Chip Set |
Intel® H610E platform controller hub |
| Mini PCI Express |
2x full-size mini PCI Express sockets with internal SIM sockets |
| M.2 E Key |
1x M.2 2230 E key socket for WiFi5, WiFi6 or Google edge TPU module |
| SODIMM Maximum |
32GB non-ECC DDR4 3200 SDRAM (one SODIMM slot) |
| Disk 1 M.2 |
512GB NVMe PCIe M.2 2280 SSD Samsung SSD 980 PRO Black/Red |
| Disk 2 SATA HDD |
512GB 2.5" SATA-600 SSD 100K IOPS Random 550MB/s 32 Layer 3D V-NAND |
| SATA Drive Bays |
1x Hot-Swappable SATA Port for 2.5" HDD/SSD Installation |
| M.2 Drive |
1x M.2 2280 M key socket (PCIe Gen4/ x4) for NVMe SSD |
| mSATA |
1x full-size mSATA port (mux with mini-PCIe) |

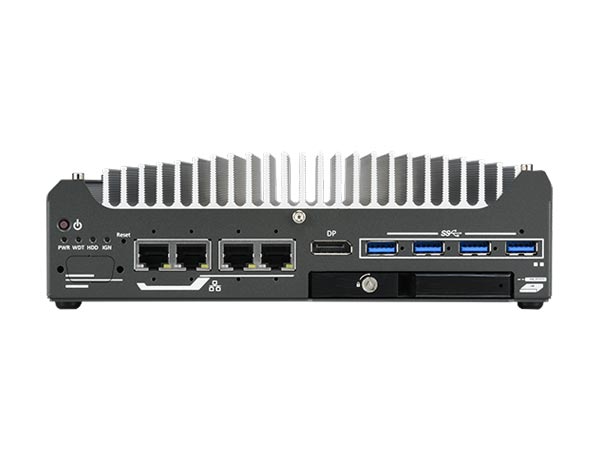

| Intel® |
4x 2.5GBASE-T Ethernet ports by Intel® I226-IT GbE controllers |
| PoE+ PSE |
Optional IEEE 802.3at PoE+ PSE for 4x2.5GbE ports 100 W total power budget |
| USB |
4x USB 3.2 Gen1 (5 Gbps) ports |
| USB |
2x USB 2.0 ports |

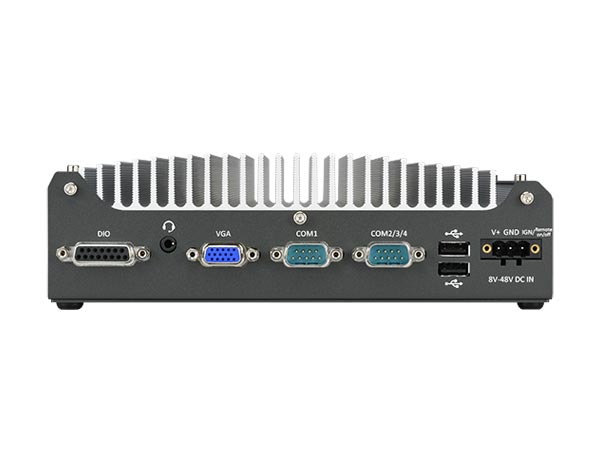

| Serial Port |
1x Software-Programmable RS-232/422/485 ports (COM1) |
| Serial Port |
3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2) |
| Isolated DIO |
4-CH Isolated DI and 4-CH Isolated DO |
| Intel® UHD Graphics 770 |
Integrated Intel® UHD Graphics 770 (32EU) / 730 (24EU) |
| VGA Port |
1x VGA output, supporting 1920 x 1200 resolution |
| Display Port |
1x DisplayPort Connector Supporting 4096 x 2304 Resolution |
| Voltage |
8~48Volts DC / 3-POS Phoenix Contact Jack/Socket (24Volts DC Typical) |
| Power In-Put |
1x 3-Pin Phoenix Contact 3 Position Jack Terminal Block for 8~40VDC Input |
| Remote Ctrl. & LED Output |
1x 3-Pin Phoenix Contact 3 Position Jack Terminal Block for 8~40VDC Input for Remote Control and PWR LED Output (Optional) |
| Operating Temperatures |
-25°C ~ 60°C |
| Storage Temperature |
-40°C ~ 85°C |
| Humidity |
10% ~ 90% Non-Condensing |
| Vibration |
Operating, MIL-STD-810G, Method 514.6, Category 4 |
| Shock |
Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| EMC |
CE/FCC Class A, according to EN 55032 & EN 55035 |
| Microsoft |
Win10 IoT Enterprise LTSB 2016 MultiLang OEI High End EPKEA (ESD) 6EU-00034 |
| Standard |
5.5Lbs Net Weight |
| Powder Coat |
Silver Splatter |
| Standard |
8.5"(W) x 6.5”(D) x 2.5”(H) |
| Limited Warranty |
2-Year Warranty |
