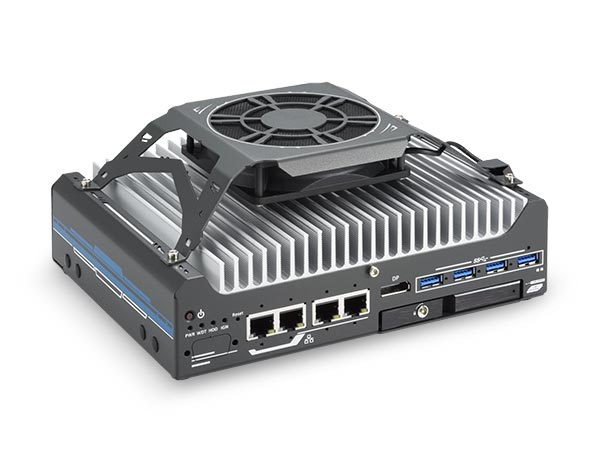

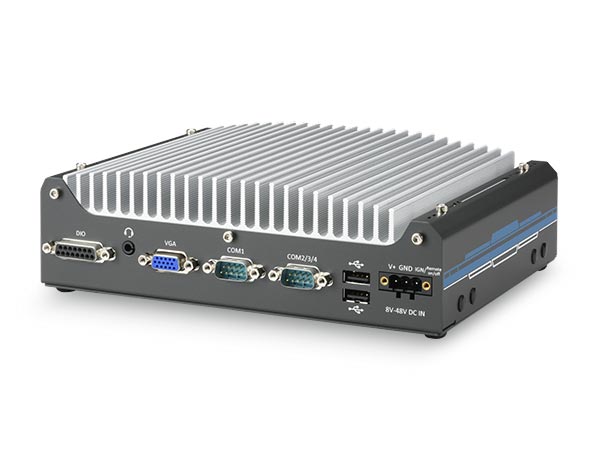

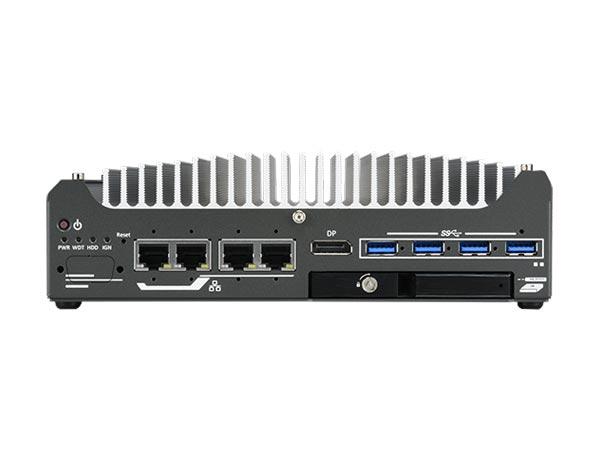

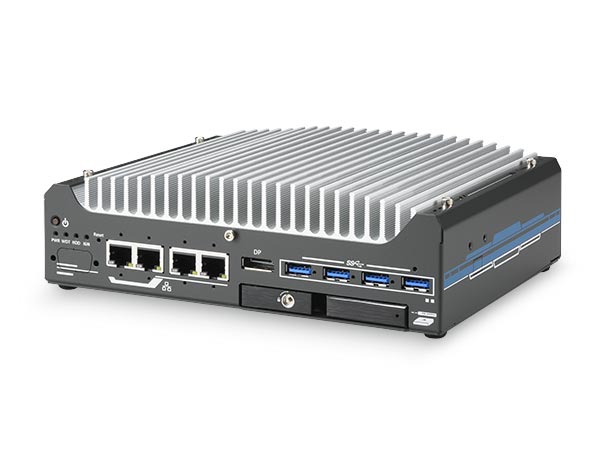

The CDS-RAi7 Industrial Embedded Robot Arm Computer is a compact small foot print unit able to fit in tight corners. It's powered by an Intel® Core™ i7-8700 CPU * Intel Core i7-
8700 Coffee Lake 8th Gen 3.2GHz 8.0GT/s * 4x 2.5GBASE-T Ethernet ports by Intel® I226-IT GbE controllers * Optional IEEE 802.3at PoE+ PSE for 4x2.5GbE ports 100 W total
power budget * 4x USB 3.2 Gen1 (5 Gbps) ports * 2x USB 2.0 ports * 1x VGA output, supporting 1920 x 1200 resolution * 1x DisplayPort, supporting 4096 x 2304 resolution * 1x
software-programmable RS-232/422/485 ports (COM1) * 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2) * 1x 3.5 mm jack for mic-in and speaker-out * 4-CH isolated
DI and 4-CH isolated DO * Mini PCI Express - 2x full-size mini PCI Express sockets with internal SIM sockets * M.2 E key - 1x M.2 2230 E key socket for WiFi5, WiFi6 or Google
edge TPU module * SATA HDD 1x hot-swappable 2.5" HDD/ SSD tray for 7mm HDD/ SSD * M.2 1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD * RAM 16GB DDR5-
5200GHz SODIMM PC5-5200 CL=19 Dual Ranked Unbuffered NON-ECC 1.2V * SSD 512GB M.2 NVMe PCIe 2280 970PRO (TLC) 0°C ~ 70°C / 32°F ~ 158°F (Operating) * DC Input
1x3-Pin Pluggable Terminal Block for 8~35 VDC * Dimensions 9.5”(W) x 9.0”(D) x 4.5”(H) * Win10 IoT Enterprise LTSB 2016 OEI High End EPKEA ESD L3942
| Chassis Configuration |
Stand Alone Small Foot Print Modular Large Heat-Sink Design for Robot Arm, Panel Door or Wall Mount |
| System |
Intel Core i7-8700 Coffee Lake 8th Gen 3.2GHz 8.0GT/s 12MB LGA 1151 |
| System Board |
Intel® Coffee Lake 8th-Gen Core i7 Embedded Controller 6xGigE M.2 2280 M Key Socket (Gen3 x4) 8xUSB 3.1 VGA DVI DP Piggybacked 4xGigE Board Installed 2-Slot PCIe Cassette Installed |
| Intel® Chip Set |
Intel® H610E platform controller hub |
| Internal Expansion Bus |
2x full-size mini PCI Express sockets with internal SIM sockets |
| M.2 E key |
1x M.2 2230 E key socket for WiFi5, WiFi6 or Google edge TPU module |
| BIOS |
Insyde Software BIOS Build 190708 Version NV7KA003 Date 07/08/2019 |
| Memory |
16Gb Up to 32GB non-ECC DDR4 3200 SDRAM (one SODIMM slot) |
| Memory (Optional) |
32Gb Maximum non-ECC DDR4 3200 SDRAM (one SODIMM slot) |
| TPM |
Supports dTPM 2.0 |
| Fixed Disk 1 (M.2 SSD) |
SATA HDD 512GB NVMe PCIe M.2 2280 SSD Samsung SSD 980 PRO Black/Red |
| Fixed Disk 2 (Optional) |
M2 512GB NVMe PCIe M.2 2280 SSD Samsung SSD 980 PRO Black/Red |
| Fixed Disk 3 (Optional) |
M.2 E Key 1TBB 2.5" SATA-600 SSD 100K IOPS Random 550MB/s 32 Layer 3D V-NAND |
| Drive Bays |
M.2 E Key 1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD |
| Storage Interface |
SATA HDD 1x Hot-Swappable SATA Port for 2.5" HDD/SSD Installation |
| Storage Interface |
M2 1x M.2 2280 M key socket (PCIe Gen4/ x4) for NVMe SSD |
| Storage Interface |
m SATA 1x full-size mSATA port (mux with mini-PCIe) |
| I/O Interface |
4x 2.5GBASE-T Ethernet ports by Intel® I226-IT GbE controllers |
| Network Interface (Optional) |
Optional IEEE 802.3at PoE+ PSE for 4x2.5GbE ports 100 W total power budget |
| USB |
4x USB 3.2 Gen1 (5 Gbps) ports |
| USB |
2x USB 2.0 ports |
| Serial Port |
1x Software-Programmable RS-232/422/485 ports (COM1) |
| Serial Port |
3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2) |
| Isolated DIO |
4-CH Isolated DI and 4-CH Isolated DO |
| Microsoft |
Win10 IoT Enterprise LTSB 2016 MultiLang OEI High End EPKEA (ESD) 6EU-00034 |
| Drivers |
Software Drivers |
| Standard |
5.5Lbs Net Weight |
| Powder Coat |
Black |
| Standard 1 |
8.4(W) x 6.5”(D) x 2.5”(H) |
| Standard 2 |
8.5"(W) x 6.5”(D) x 2.5”(H) |
| Limited Warranty |
2-Year Warranty |
