CDS-FM22

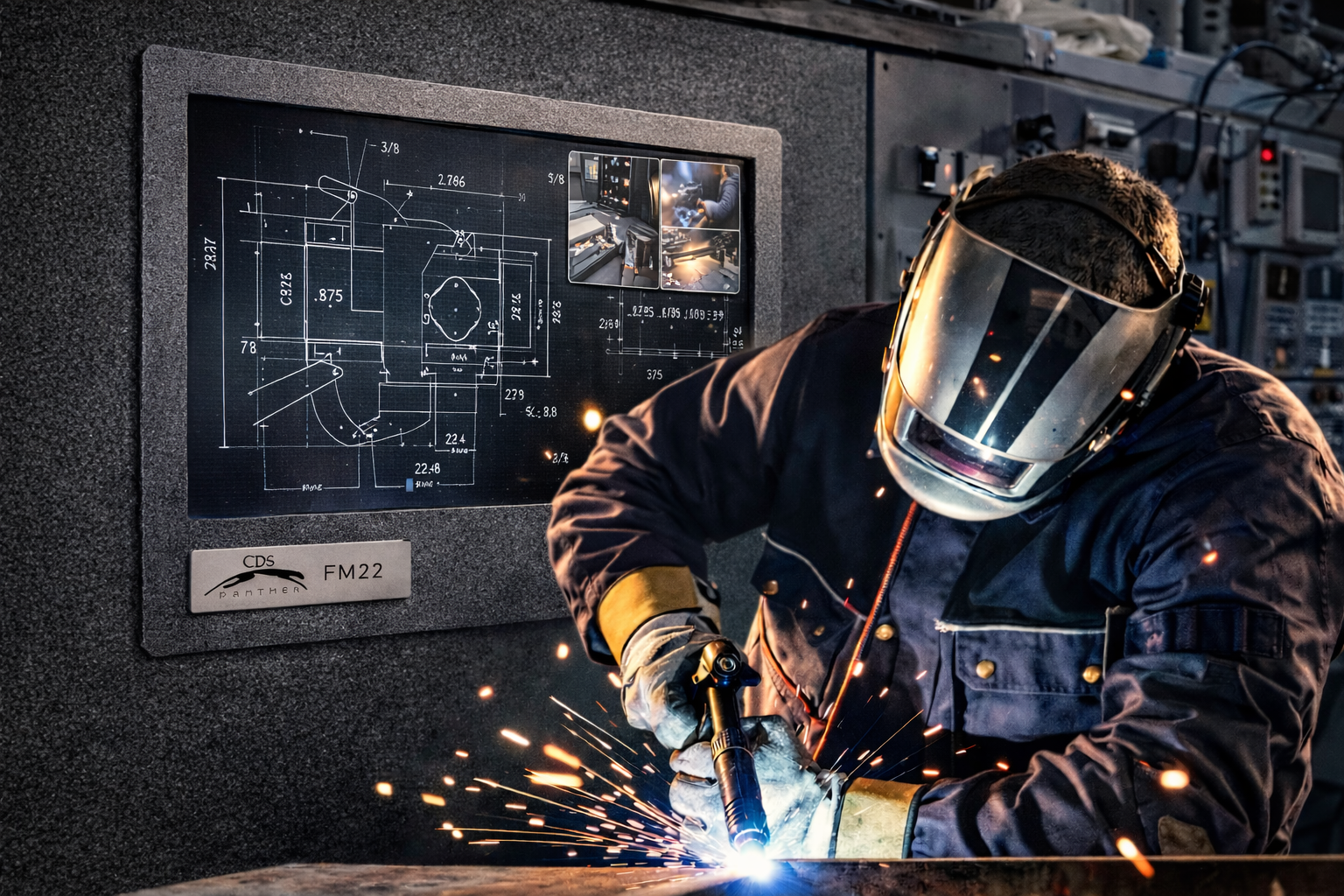

FM22 – 22" Panel Monitor Industrial Hose-Down (FM Series)

    Rugged, field-proven industrial panel mount monitor engineered for harsh and washdown environments. The CDS-FM22 is a fully enclosed industrial display designed for panel-mounted installations in automotive and industrial applications where protection from water, oil, dust, and contaminants is critical. Featuring a sealed front bezel with NEMA 4 / 4X / 12 compliant protection, it is suitable for hose-down environments and demanding factory conditions. The 22" widescreen display (1920×1080 Full HD) with HDMI and VGA inputs delivers clear visibility and reliable performance, while the heavy-duty aluminum chassis with a shatter-resistant LEXAN® protective shield ensures long-term durability. Each chassis is designed, built, and powder coated in California (Made in USA) with CDS’s signature silver-splatter finish. Designed for continuous 24/7 industrial operation with a long-life backlight, the CDS-FM22 is a field-proven platform with over 5 years of continuous deployment in automotive manufacturing environments.

Description:

Model: CDS-FM22

Proven in Automotive Manufacturing – Over 5 Years of Continuous Deployment.

The CDS-FM22 is a rugged industrial panel mount monitor designed for sealed installations in harsh and washdown environments. Built for durability and long-term performance, it provides reliable widescreen operation in applications requiring protection from water, oil, dust, and industrial contaminants.

Key Features

  • True panel mount design for sealed enclosure integration
  • Designed for integration into sealed control panels and operator interfaces
  • NEMA 4 / 4X / 12 compliant front panel (hose-down rated)
  • Sealed front panel comparable to IP65 ingress protection (front panel)
  • Sealed front bezel for protection against water, oil, and dust ingress

Display

  • 22" widescreen display (1920 × 1080 Full HD, 16:9)
  • 5ms response time
  • 16.7 million colors
  • HDMI and VGA inputs

Construction

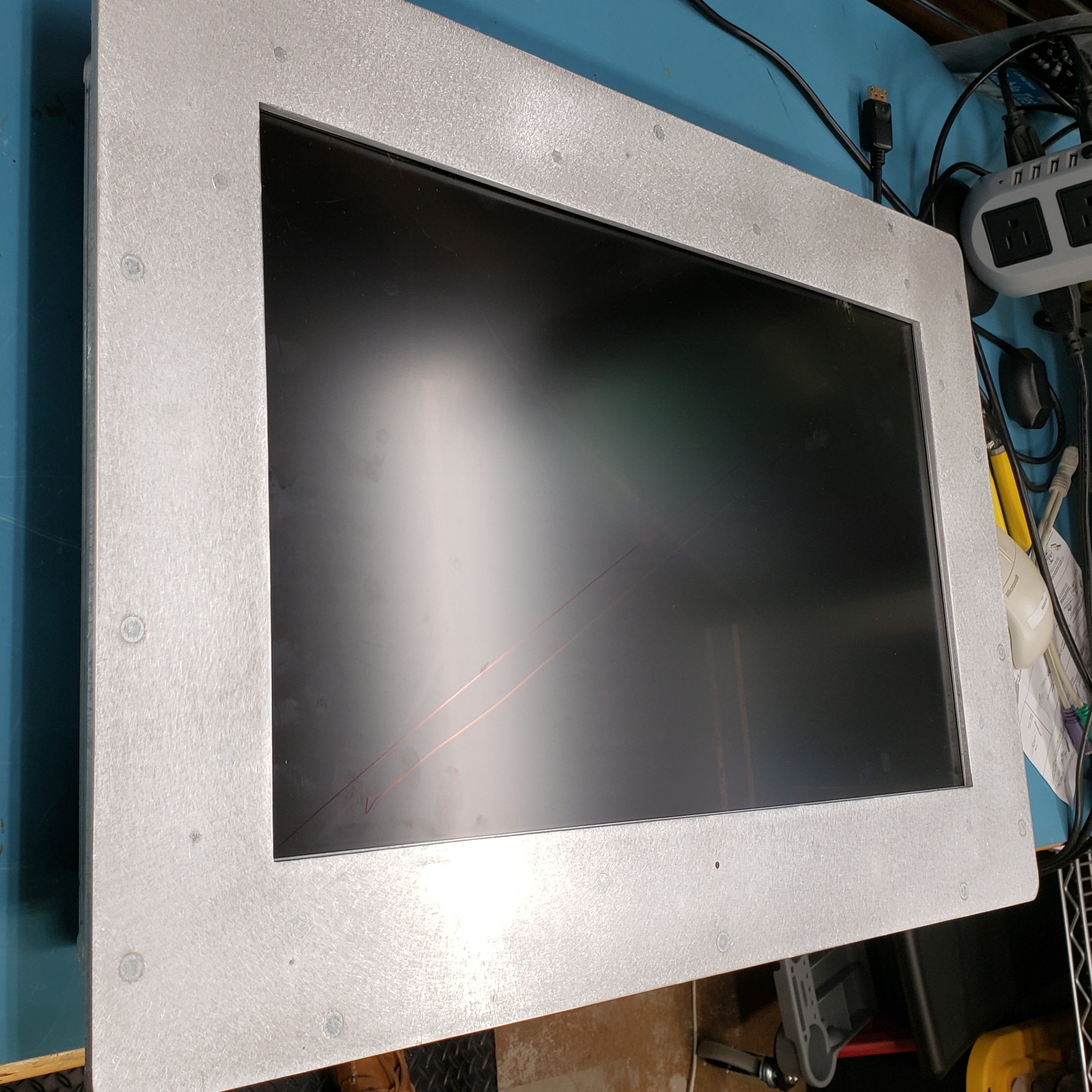

  • Heavy-duty aluminum chassis with CDS custom silver-splatter powder-coated finish; sealed front panel designed for washdown environments
  • LEXAN® protective shield (mar-resistant, shatter-resistant, oil, water, and gas resistant)
  • Chassis designed, built, and powder-coated in California (Made in USA)

Mechanical

  • Front Panel Dimensions: 19"W × 16"H

Reliability

  • Designed for continuous 24/7 industrial operation
  • Long-life LED backlight

Support & Compatibility

  • 3-Year Warranty
  • Field-proven platform with 5+ years of continuous deployment in automotive manufacturing environments

Specifications :

Enclosure

Chassis Configuration
Heavy Duty Custom Powder-Coated High Grade Aluminum Chassis, NEMA12/4/4X Compliant Hose Down, Slash Proof, Front Panel Enclosure 24W x 16H x 3"D
Display Shield
22" Diagonal Heavy Duty Lexan™ Shield Poly Carbonate Mar-Resistant 3/16" Thick for Display Glass Protection
Dimensions
24.00"W x 16.00"H x 3.00"D
Panel Cutout Dimensions
22.25"W x 14.50"H
Mounting Options
Uses 8 C-Clamp for Mounting onto panel. Also can be Rear or Side Mounted.
Cooling & Ventilation
20 x 3" Louvers on Rear Panel
Finish
CDS Signature Silver-Splatter Wrinkle Heavy Duty Powder-Coating

DISPLAY

Display Monitor
22" LED 16:9 Aspect Ratio Monitor Displays 1920 x 1080 Full HD (1080p) TN 250 cd/m² 1000:1 5ms HDMI and VGA
Display Ports

1 x VGA

1 x HDMI 1.4 (port inside rear flap)
Resolution
1920 x 1080
Aspect Ratio
16:9
Frequency

Horizontal 24 ~ 82KHz

Vertical 50 ~ 75Hz
Panel Type
TN
Static Contrast Ratio
1,000:1
Viewing Angles
170º Horizontal 160º Vertical
Viewable Area Diagonal
22" Diagonal
Dynamic Contrast Ratio
50,000,000:1
Backlight Life
40,000Hrs
Response Time
5ms (TYPICAL GTG)
Light Source
 WLED
Brightness
 250 cd/m2
Colors
16.7M

POWER

Voltage
AC 100-240V(Universal) 50-60Hz
Power Cable

6' North American Business-Machine NEMA 5-15/IEC 320 SVT 18/3 AWG

COMPATABILITY

PC Resolution (max)
1920 x 1080
Mac® Resolution (max)
1920 x 1080
PC Operating System:
Windows 11 certified

CONNECTORS

Power Socket
3-Pin North American Business-Machine Power Plug Socket Female IEC 320-C16
Power Cable
6' North American Business-Machine NEMA 5-15/IEC 320 SVT 18/3 AWG 6'
VGA Socket
VGA HDDB15 Female
VGA Cable
6' VGA Cable HDDB15 Male to Male Cable
HDMI Socket
HDMI Port Flange Mounted
HDMI Cable

6' HDMI to HDMI Cable

6' HDMI to USB-C Cable (Optional)

OPERATING CONDITIONS

Operating Temperatures
32-104º F (0 - 40º C)
Humidity
20-90% Humidity (non-condensing)

Weight

Standard

15Ibs

Finish

Powder Coat

CDS Signature Silver-Splatter Wrinkle Heavy Duty Powder Coating

Dimensions

External 24"W x 16"H x 3"D

Warranty

Limited Warranty

3-Years
