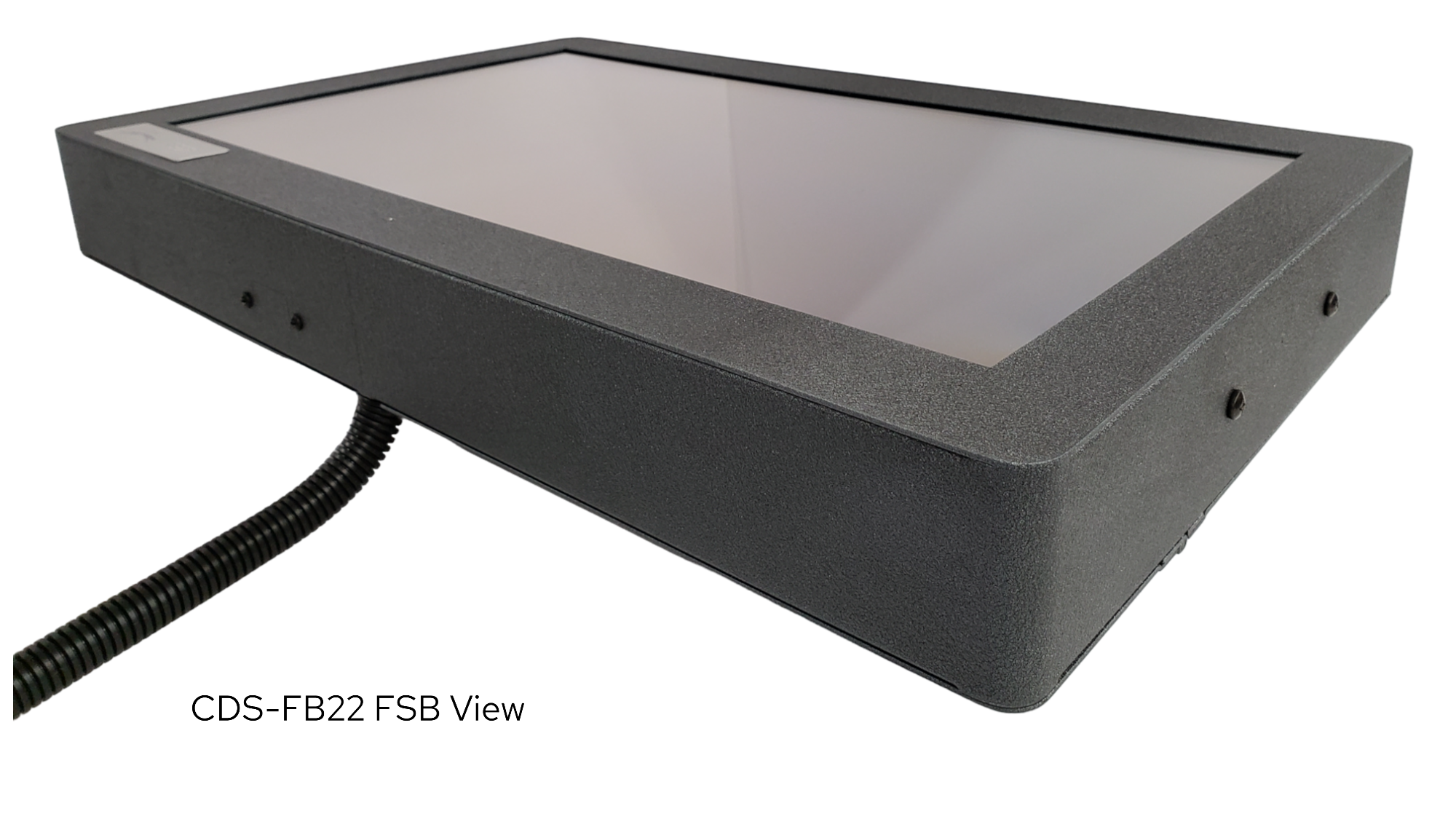

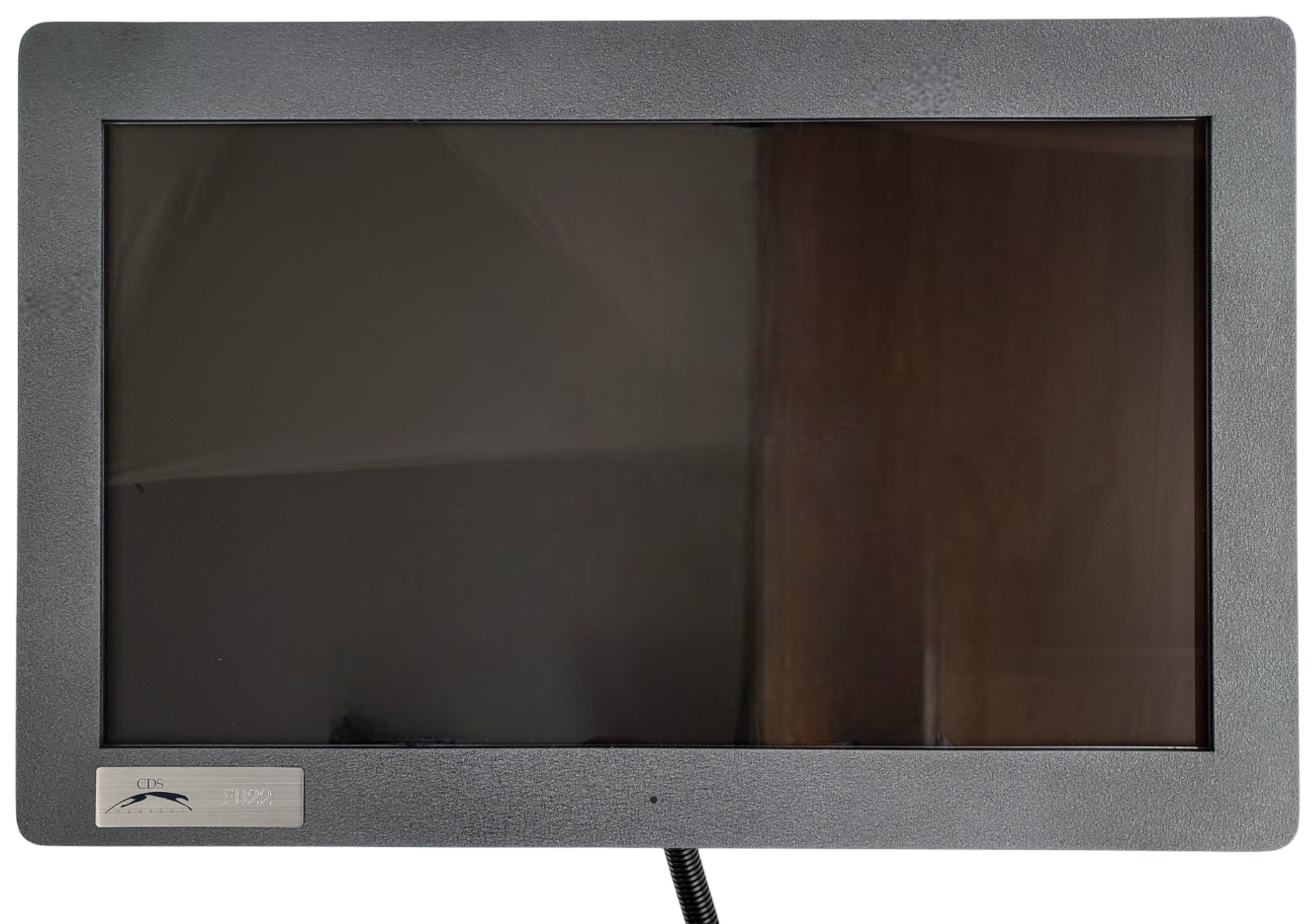

CDS Industrial Pit Monitors are NEMA4/4X Compliant. The Heavy Duty Aluminum Enclosure, is Custom Power Coated with our Signature Silver-Splatter Wrinkle Finish. The CDS-FB22 Flat Panel Monitor Display has a 22" LED Wide Screen and is Shielded with 3/8" Heavy Duty LEXAN® Polycarbonate. It is Shatter Resistant, Mar Resistant, Water, Oil, Gas and Rust Resistant. It's 22" Wide Screen Display is a Full HD 1920x1080 (1080p) with 16.7Million Color Capability, has both HDMI VGA Display Ports. It is VERSA Mountable. CDS FB-Series PIT Monitors have and Excellent Track Record and are known to function for Many Years. They have a Proven Track Record and comes with Generous Warranty Terms. The CDS-FB22 is the predecessor to our CDS-FB17 and CDS-FB15 Pit Monitors that have been in Production for Over 25 Years. The CDS-FB17 is still Produced and In-Stock.
| Chassis Configuration |
Heavy Duty Custom Powder Coated Aluminum Chassis with NEMA4/4X Compliant Sealed 22.25”W x 14.0”H x 2.5"D |
|
| Display Shield |
Heavy Duty Lexan™ Shield Poly Carbonate Mar-Resistant 3/16" Thick for Display Glass Protection |
|
| Mounting Options |
Rear VERSA Mount or Side Mount |
|
| Operating Temperatures |
32-104º F (0 - 40º C) |
|
| Humidity |
20-90% Humidity (non-condensing) |
|
| Cooling & Ventilation |

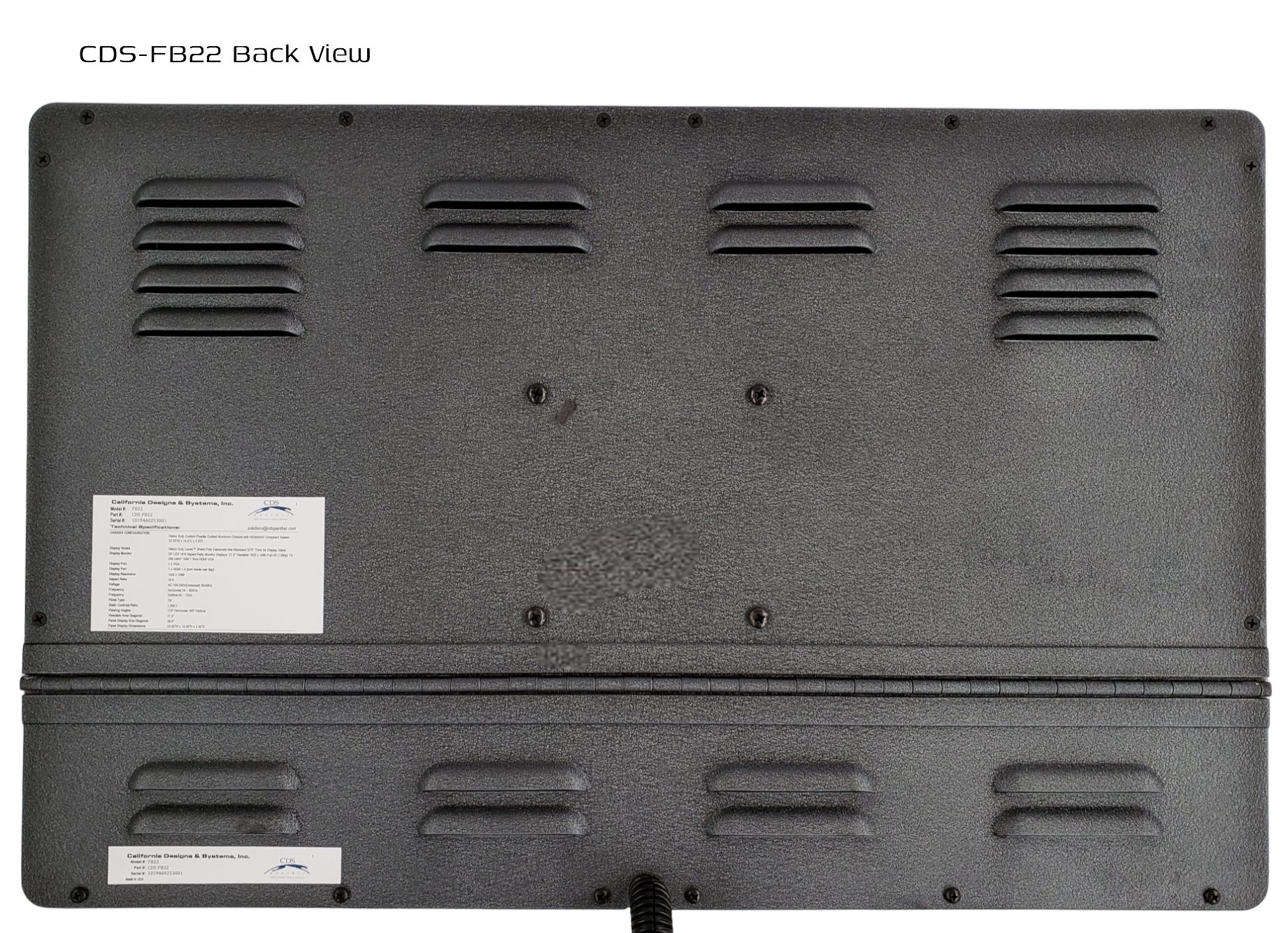

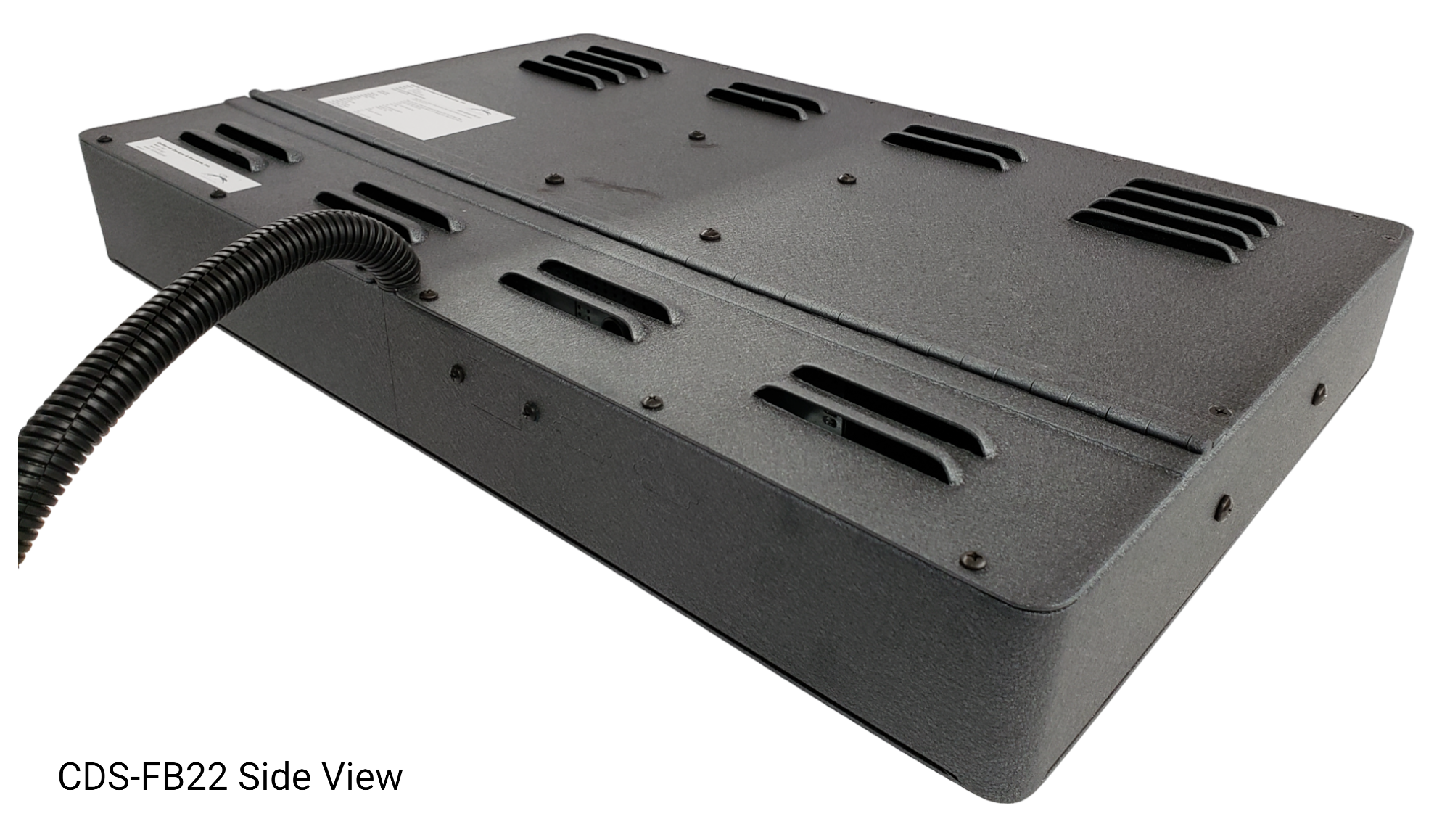

20 x 3" Louvers on Rear Panel |
|
| Finish |
CDS Signature Silver-Splatter Wrinkle Heavy Duty Powder Coating |
|
| Dimension |
|
| Display Size |
22" LED 16:9 Aspect Ratio Monitor Displays 21.5" Viewable 1920 x 1080 Full HD (1080p) TN 250 cd/m² 1000:1 5ms HDMI VGA |
| Display |
1 x VGA 1 x HDMI 1.4 (port inside rear flap) |
| Resolution |
1920 x 1080 |
| Aspect Ratio |
16:9 |
| Display |
Heavy Duty Lexan™ Shield Poly Carbonate Mar-Resistant 3/16" Thick for Display Glass Protection |
| Frequency |
Horizontal 24 ~ 82KHz Vertical 50 ~ 75Hz |
| Panel |
TN |
| Static |
1,000:1 |
| Viewing |
170º Horizontal 160º Vertical |
| Viewable |
22" Diagonal |
| Dynamic |
50,000,000:1 |
| Voltage |
AC 100-240V(Universal) 50-60Hz |
| Power |
North American Business-Machine NEMA 5-15/IEC 320 SVT 18/3 AWG 6' |
| PC Resolution (max) |
1920 x 1080 |
| Mac® Resolution (max) |
1920 x 1080 |
| Power Cable |
North American Business-Machine NEMA 5-15/IEC 320 SVT 18/3 AWG 6' |
| VGA Cable |
VGA Cable HDDB15 Male 6' Cable |
| HDMI Cable |
6' HDMI to HDMI Cable 6' HDMI to USB-C Cable (Optional) |
| Operating Temperatures |
32-104º F (0 - 40º C) |
| Humidity |
20-90% Humidity (non-condensing) |
| Net Weight |
12Lbs |
| Powder Coating |
CDS Signature Silver Splatter Custom Powder Coating |
| Dimensions |
|
| Limited Warranty |
3-Year Warranty |
