Intel®
Xeon® E-2176G Embedded Six-Core 3.7GHz/4.7GHz Turbo w/12MB Smart CACHE * Intel®
C621 Chipset * 32GB DDR4-3200Hz ECC [Max
1TB] * 2x512GB RAID1 SSD M.2 2280 NVMe 970PRO PCI EXPRESS 3.0x4 W10Y * Hot Swap
SATA/PCIE NVMe Dual Bays * DVDRW 48x/24x * Positive Pressure 4 Fan System * P4F
200cfm Cooling * 2xPCI-E 3.0 x8(inx16) * 4xPCI-E 3.0 x8 * 1 PCI-E 3.0 x4 (in
x8) * 2xGbE LAN Ports * 8xSATA3 (6Gbps) Ports * 1xVGA * 2 COM Ports * TPM
Header * 2xSuperDOM w/Built-in Power * 5xUSB 3.0 (2x Rear 1xType-A 2xVia
header) * 8xUSB 2.0 (2xRear 6xVia Headers) * M.2 NGFF Connector * 860Watt PS2
High Efficiency Power Supply
| Chassis Configuration |

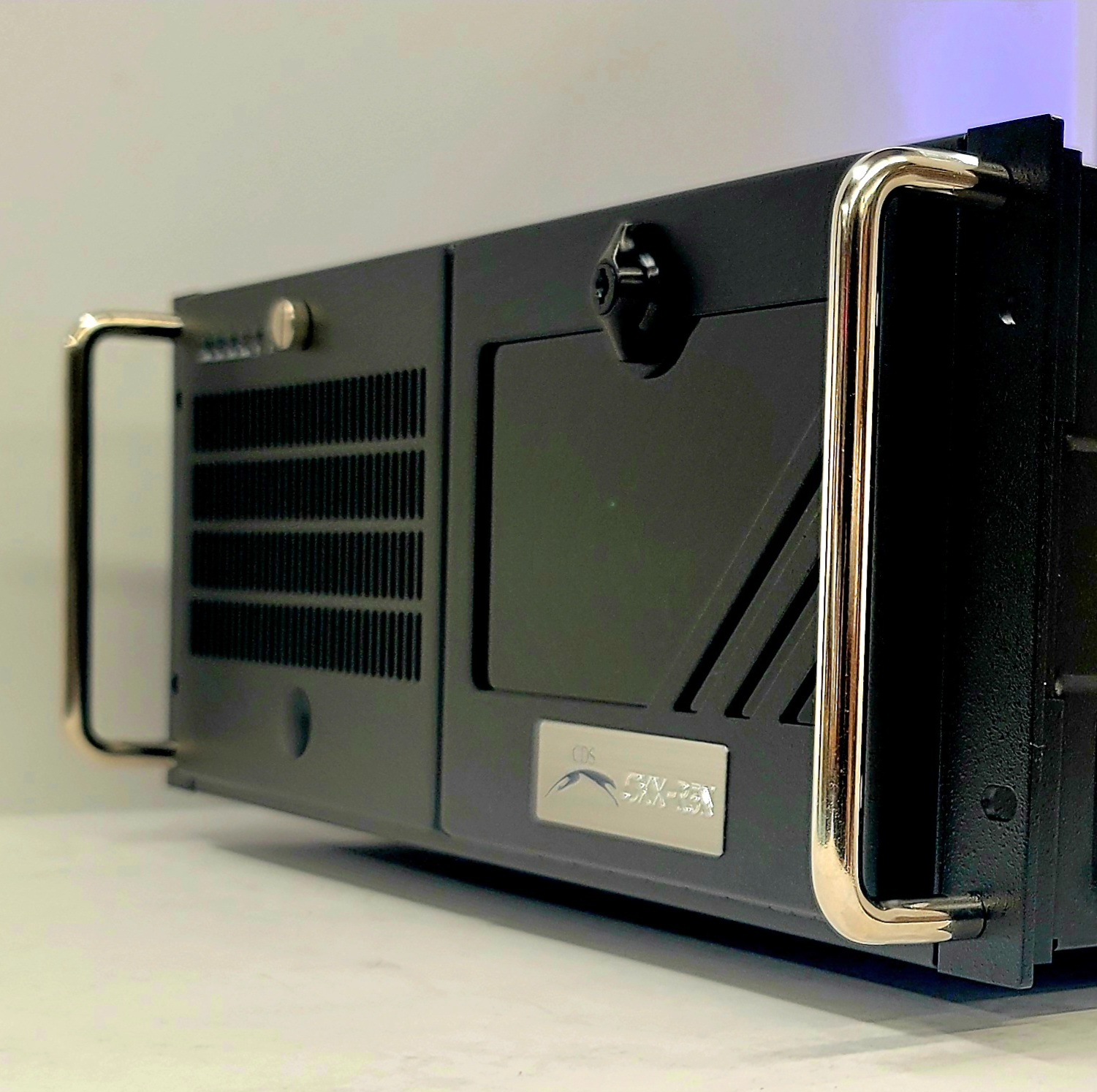

Industrial Rackmount 7"H x19.0"Wx20"D CDS-CX Chassis Panel Door, Wall Mount or Rackmount w/FDM, 200 cfm Positive Pressure 4-Fan Cooling and Chrome Pull Out Handles |
| Chassis Cooling Intake |

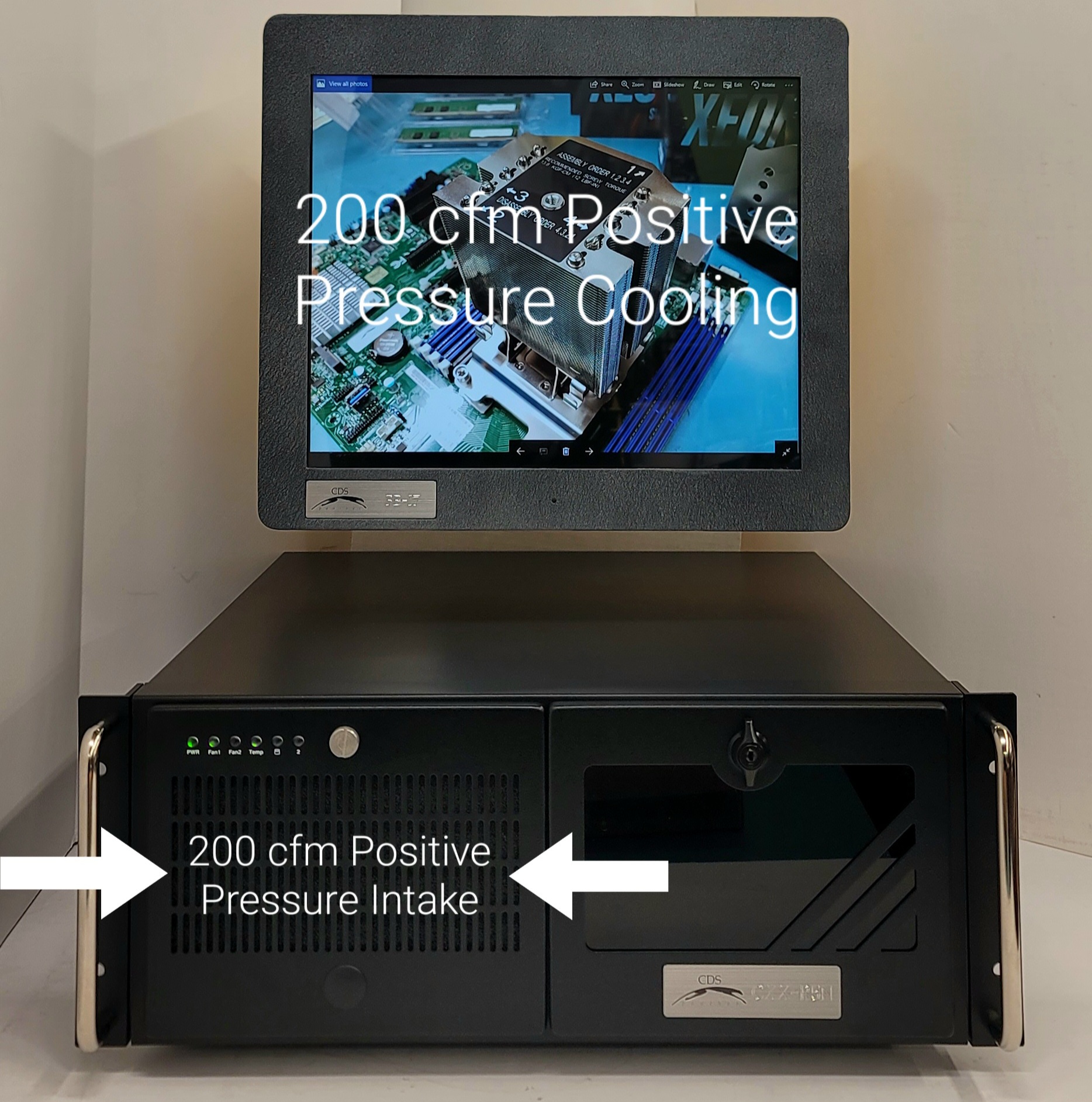

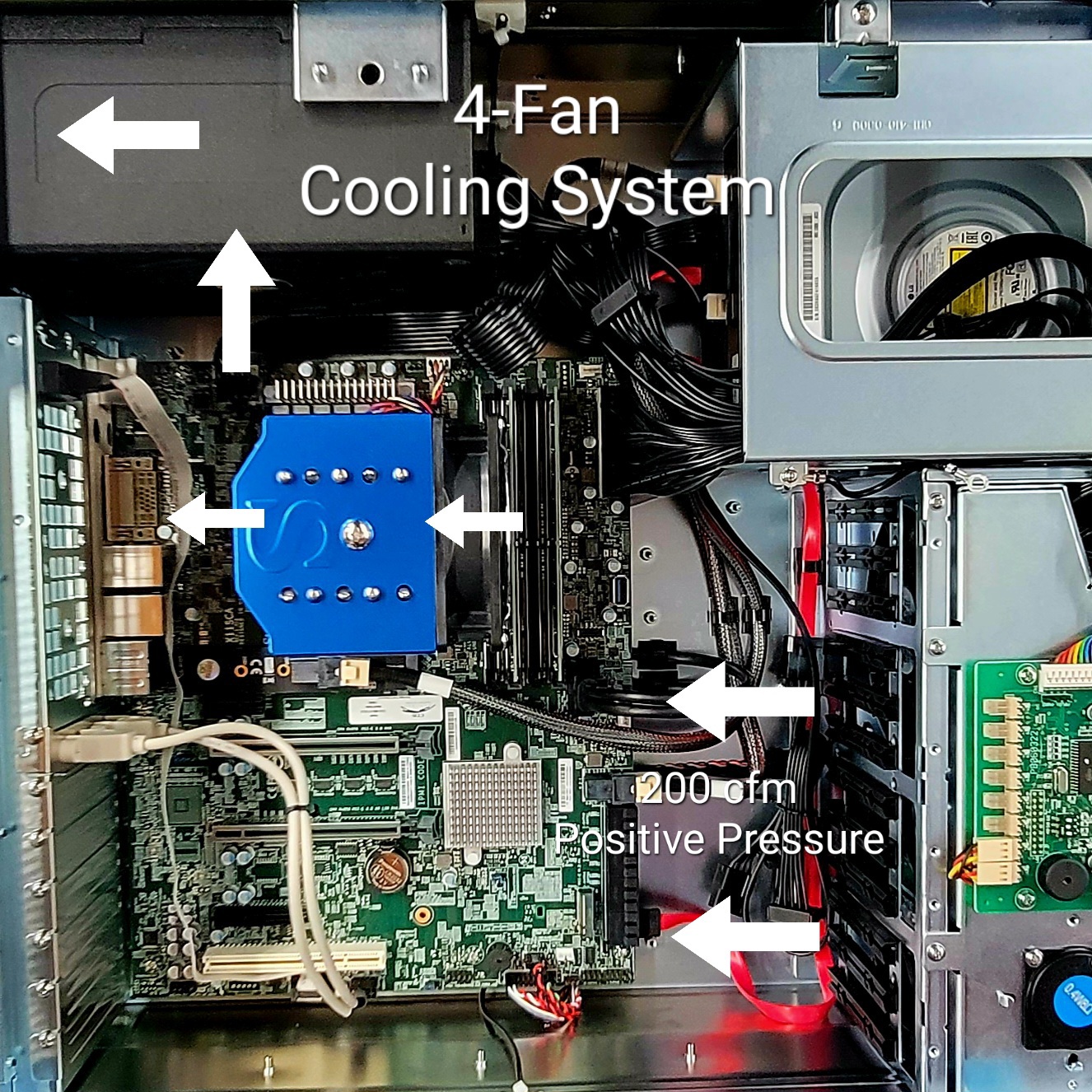

200cfm Positive Pressure 4 Fan Cooling System Includes 2x108cfm Axial 120mm 12VDC 6.8W 8-Pole High Speed Vapo |
| Power Supply Cooling Exhaust |
1 x 80cfm 12V Fan 120mm x 120mm x 20mm 2800RPM 26.5dB(A) |
| CPU Fan-Sink Cooling |

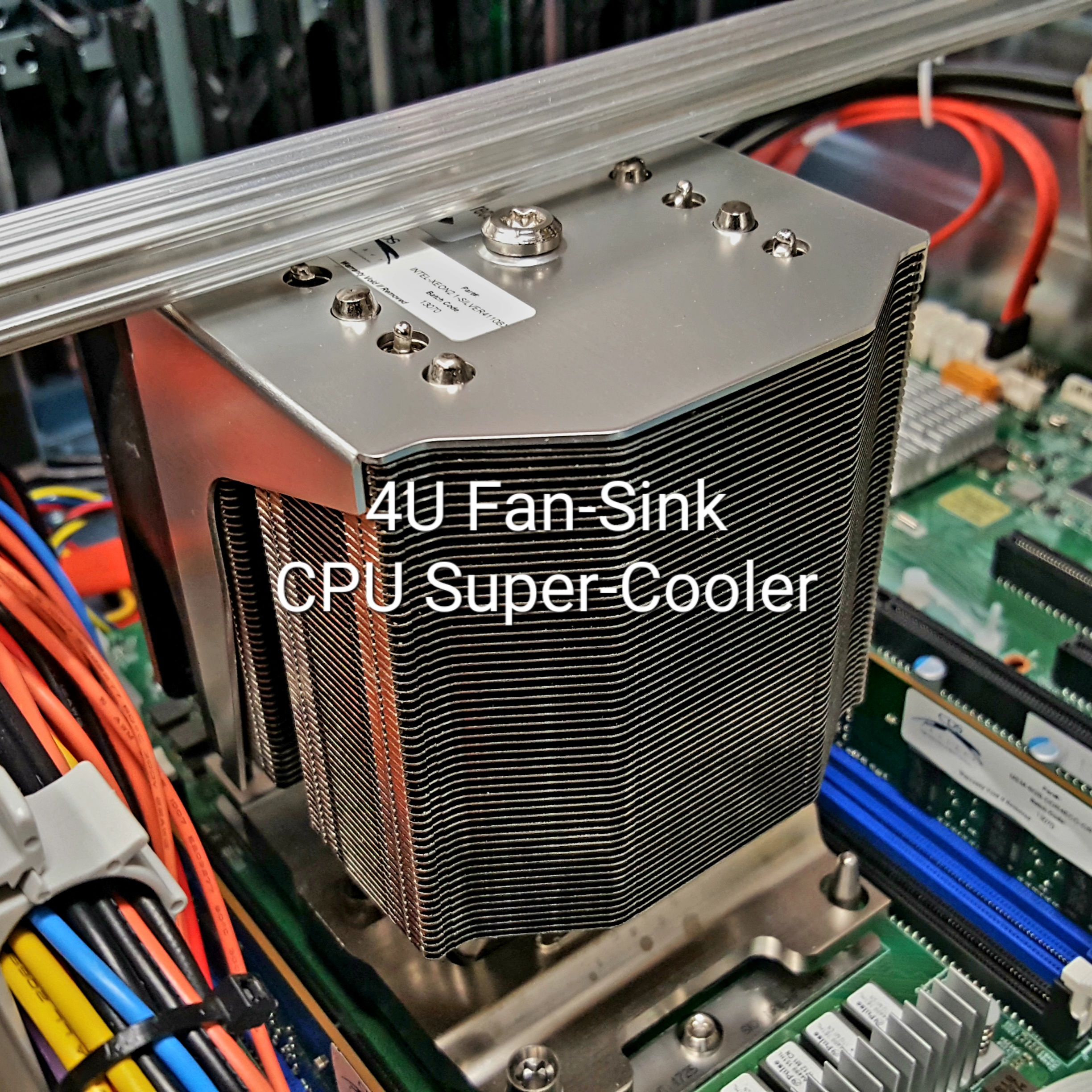

1 x 4U Active Xeon CPU Fan-Sink X11-Series Aluminum & Copper LGA3647-0 |
| Intel |
Intel Xeon E-2176G 3.7GHz 6-CXore 12 Threads 12MB CACHE LGA1151 Socket Server CPU OEM |
| Mother Board |
Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor Single Socket LGA-1151 (Socket H4) CPU TDP support Up to 95W TDP Intel® C246 ChipSet * Up to 128GB Unbuffered ECC/non-ECC UDIMM DDR4-2666MHz, in 4 DIMM slots LAN Ports 8xSATA3(6Gbps) Ports 1xVGA 2xCOM TPM Header 2xSuperDOM with Built-In Power 5xUSB3.0 8xUSB2.0 M.2 NGFF Connector |
| Intel® Chip Set |
Intel® C246 |
| 4x PCIE / 1x PCI / 2x M.2PCIE |
1x PCI-E 3.0 x4 1x PCI-E 3.0 x1 2x PCI-Ex16 slots are running at NA/16, or 8/8 1x - 5V PCI 32bit M.2 Interface #1: Shared with PCI-E 3.0 x4 M.2 Interface #2: Shared with U.2 1 PCI-E 3.0 x4 |
| BIOS Version |
AMI UEFI 128Mb (Real Time Clock) Wakeup SMBIOS Version 1.0C |
| 288-Pin DIMM |
16Gb 2x8GB 1Rx8 1G x 72-Bit DDR4-2666 288-Pin DIMM Unbuffered D1G CL19 SDRAM (Synchronous DRAM) 1Rx8 ECC Memory Module |
| Optional Max Memory |
Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots |
| Fixed Disk 1 (M.2 SSD) |
512GB SSD M.2 2280 NVMe 970PRO PCI Express 3.0x4 |
| Fixed Disk 2 (M.2 SSD) |
1TB SSD M.2 2280 NVMe 970PRO PCI Express 3.0x4 2TB SSD M.2 2280 NVMe 970PRO PCI Express 3.0x4 4TB SSD M.2 2280 NVMe 970PRO PCI Express 3.0x4 |
| M.2 Module |

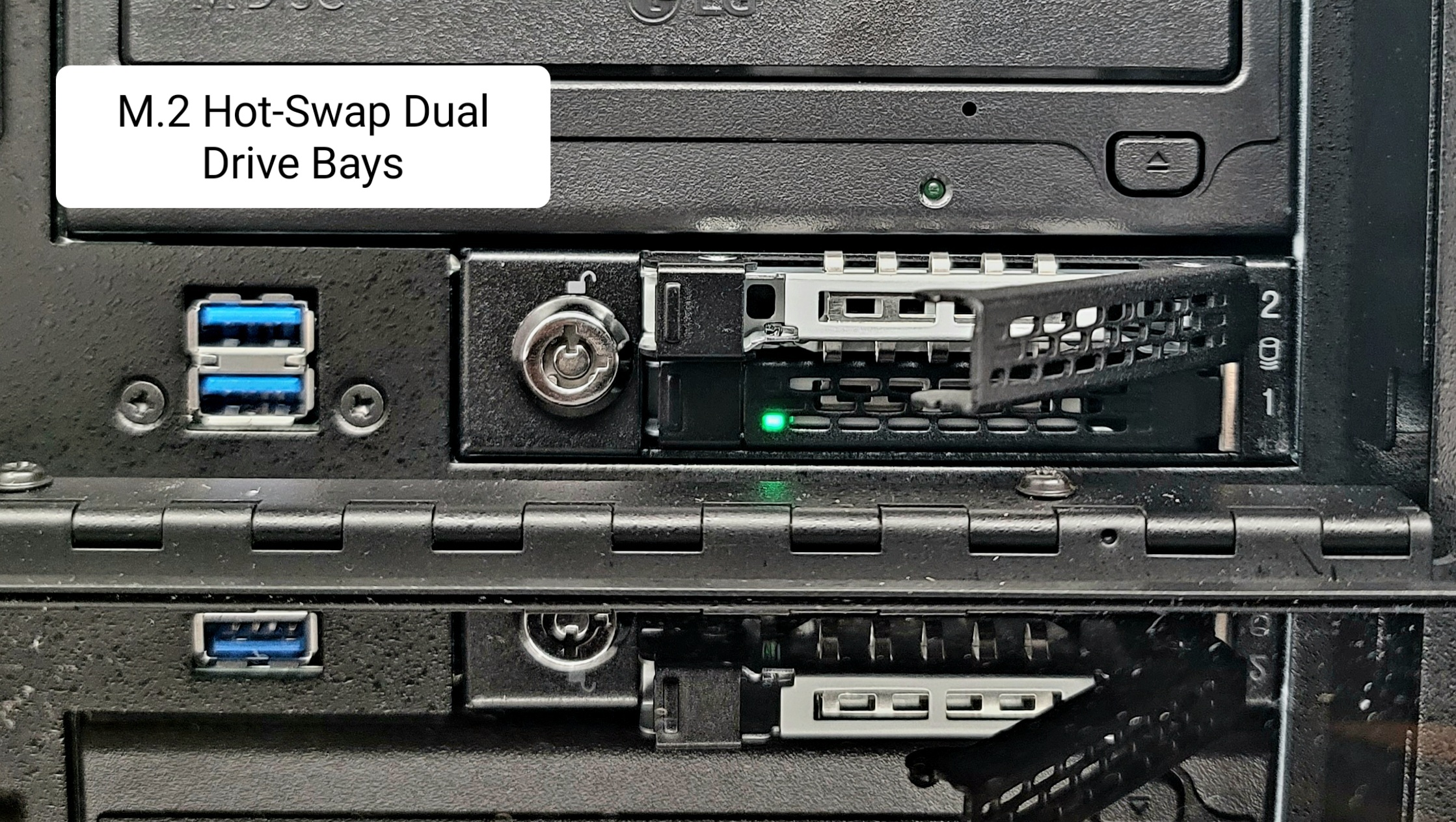

Dual Hot Swap M.2 PCIe NVMe SSD Drive Bays External 3.5” Drive Bay |
| DVD/RW Drive |
LG SerialATA DVDRW Drive DL 24X +/- Black Storage Device |
| SATA III |
8xSATA3 (6Gbps) Ports |
| LAN1 Intel® |
LAN1 Ethernet Intel® i350 Dual port Gigabit LAN Controller |
| LAN2 Intel® |
LAN2 Ethernet Intel® i350 Dual port Gigabit LAN Controller |
| Network Adapter (Optional) |
LAN3, LAN4, LAN 5 & LAN6 Ethernet Intel PRO/1000 4-Port NIC Intel PRO/1000 |
| 10 USB Ports |
8 SATA3 (6 Gbps) Ports; RAID 0,1,5,10 Intel® C246 controller 4 USB 3.1 Gen2 Ports - 1 Rear Type A, 1 Rear Type C, 2 Via Headers Type C & Type A 4 USB 3.1 Gen1 Ports (2 Rears Type A, 2 Via Headers) 2 USB 2.0 Ports (2 Via Headers) |
| Serial Ports |
1 x RS-232 Serial Ports (Via Header) |
| Display Ports |
1 x HDMI Port 1 x DVI - D Port 1 x DP Port Intel UHD P630 graphic |
| Power Supply |
850Watt EPS-12Volt Power Supply High Efficiancy AC Input 100-240V 47-63Hz |
| Operating Temperatures |
0~60°C (32~140°F) |
| Operating Humidity |
5%~90% relative humidity, non-condensing |
| Microsoft |
Windows 10 IoT Enterprise 2019 LTSC EPKEA High End Runtime License |
| Software Drivers |
CDS-CXX-X11SCA Driver CD |
| Lbs |
~55Lbs |
| Powder Coat |
Custom Black Powder Coating with Chrome Handles |
| 4U Rackmount |
19.0"W x 7.0"H x 20.0"D |
| Limited Warranty |
3-Year Warranty |
