CXQ-Series Intel® 4U Industrial Rackmount Computer Intel® Core2Quad 2.8/3.0GHz Q9550/Q9650 CPU Intel® Q35 ChipSet 4GbDDR800 1x250GBSSD DVDRW PP2F-Coolng 5xPCI Slots (32-bit 33MHz 5V) 1xPCI-e(x16)Slot 1xPCI-e(x4)Slot 500Watt-HighEffeciancy Power Supply WinXP-EmbeddedSTD2009 MS KB Door-Mountable L5395
| Chassis Configuration |

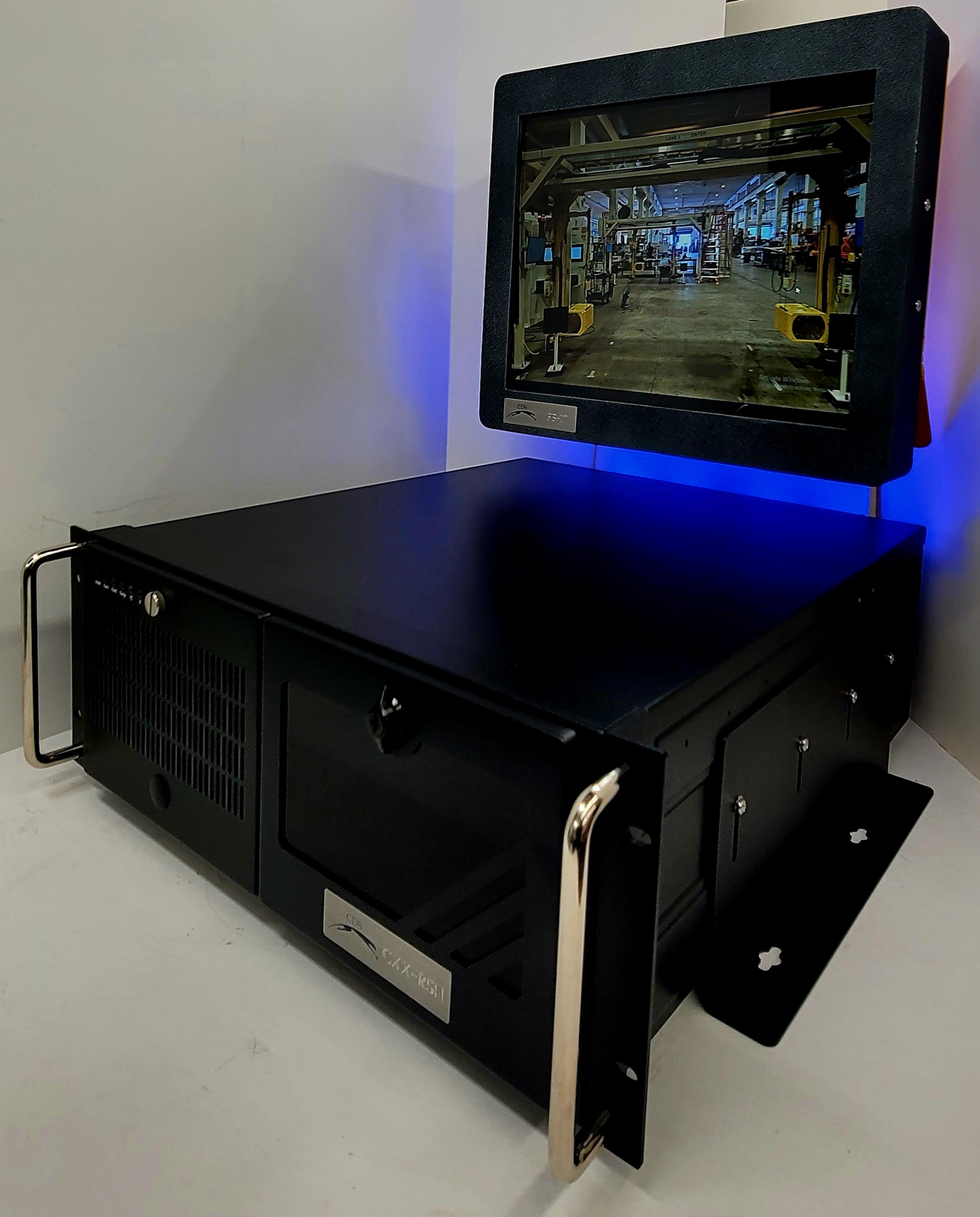

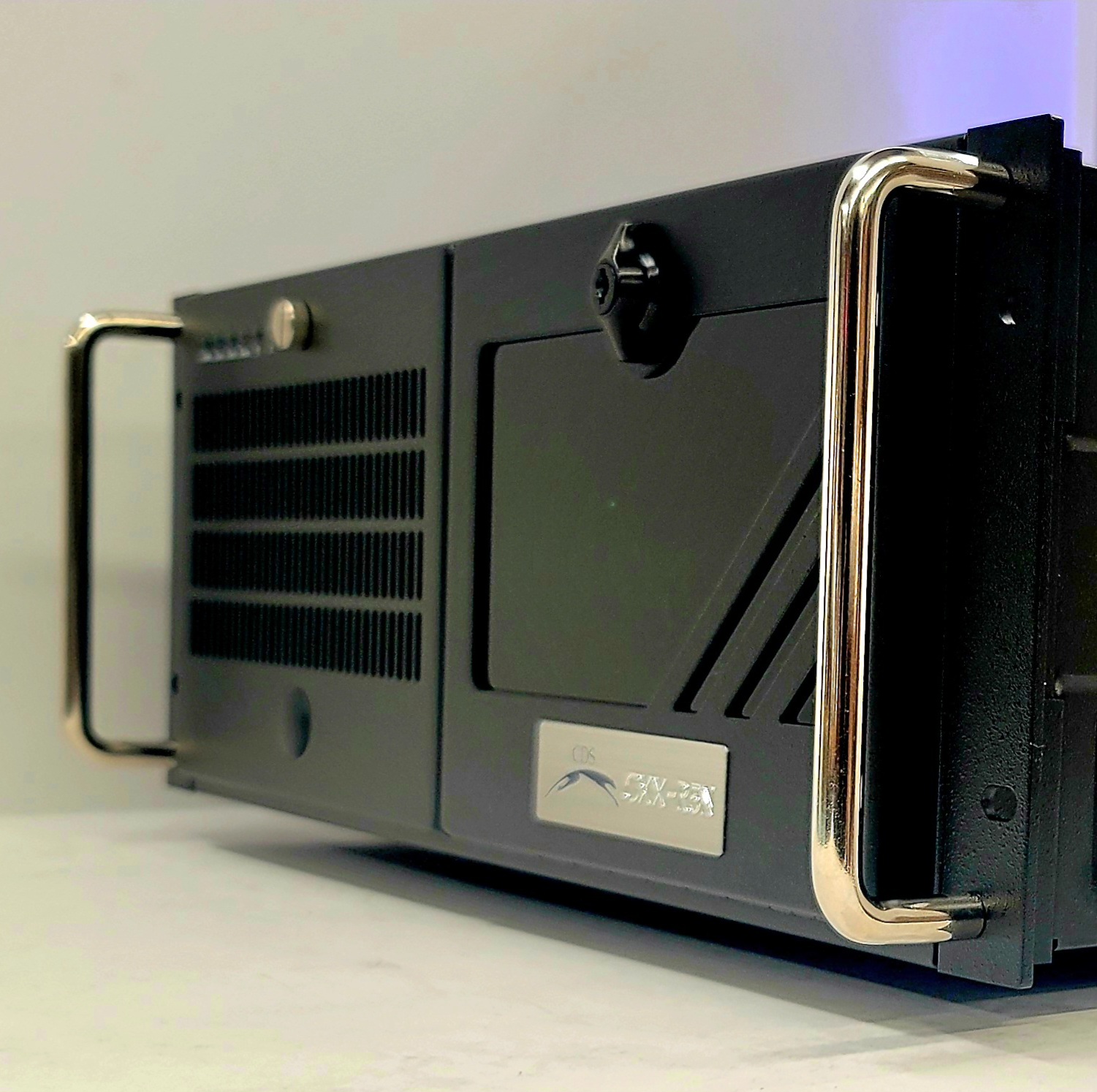

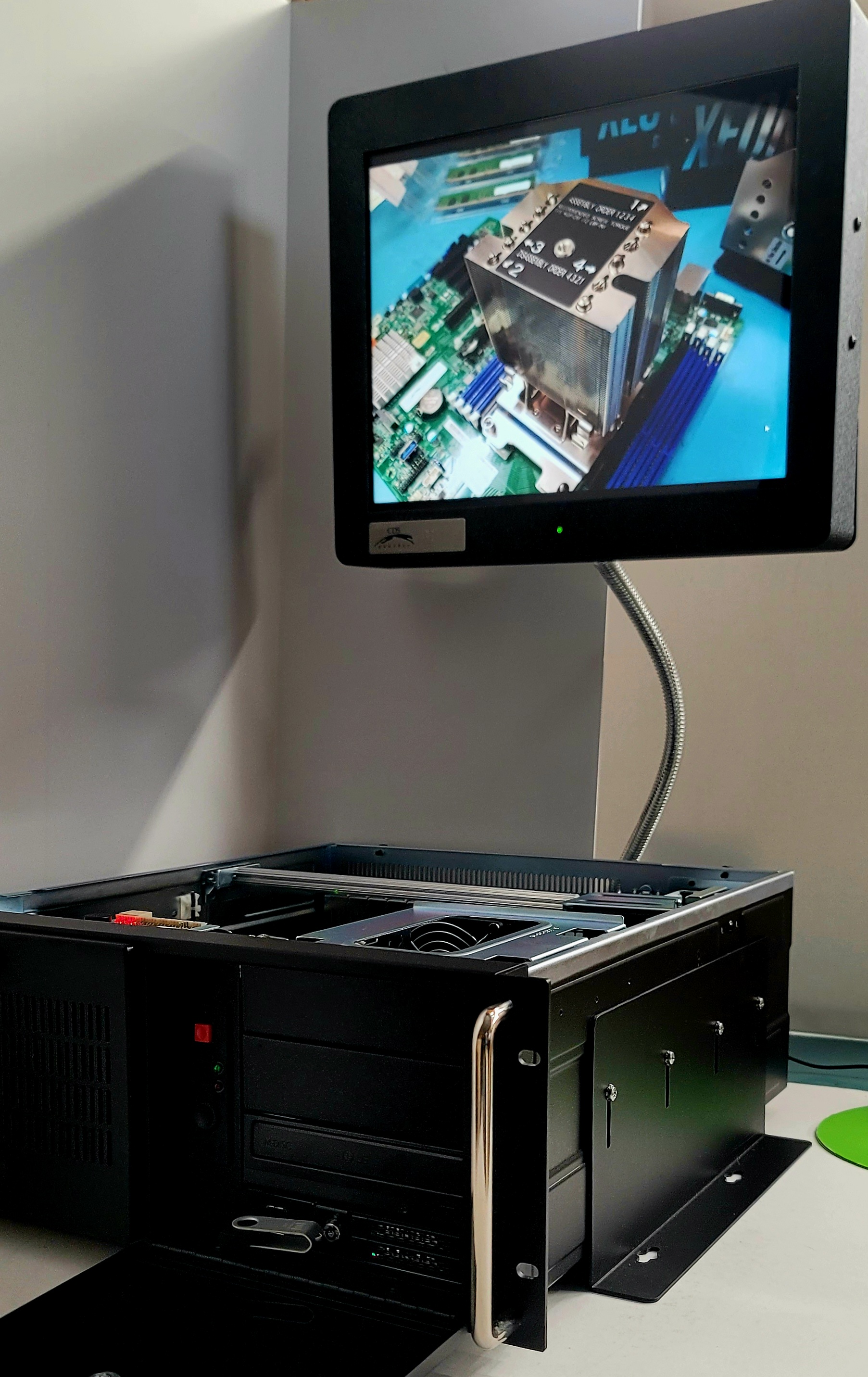

Industrial Rackmount 7"H x19.0"Wx20"D CDS-CX Chassis Panel Door, Wall Mount or Rackmount w/FDM, 200 cfm Positive Pressure 4-Fan Cooling and Chrome Pull Out Handles |
| Chassis Cooling Intake |
200cfm Positive Pressure 4 Fan Cooling System Includes 2x108cfm Axial 120mm 12VDC 6.8W 8-Pole High Speed Vapo |
| Power Supply Cooling Exhaust |
1 x 60cfm 12V Fan 120mm x 120mm x 20mm 2800RPM 26.5dB(A) |
| CPU Fan-Sink Cooling |
1 x Active CPU Fan-Sink X11-Series Aluminum |
| Intel |
Intel® Core 2 Quad Processor Q9550 2.83GHz 1333MHz LGA775 Socket L2 12Mb OEM |

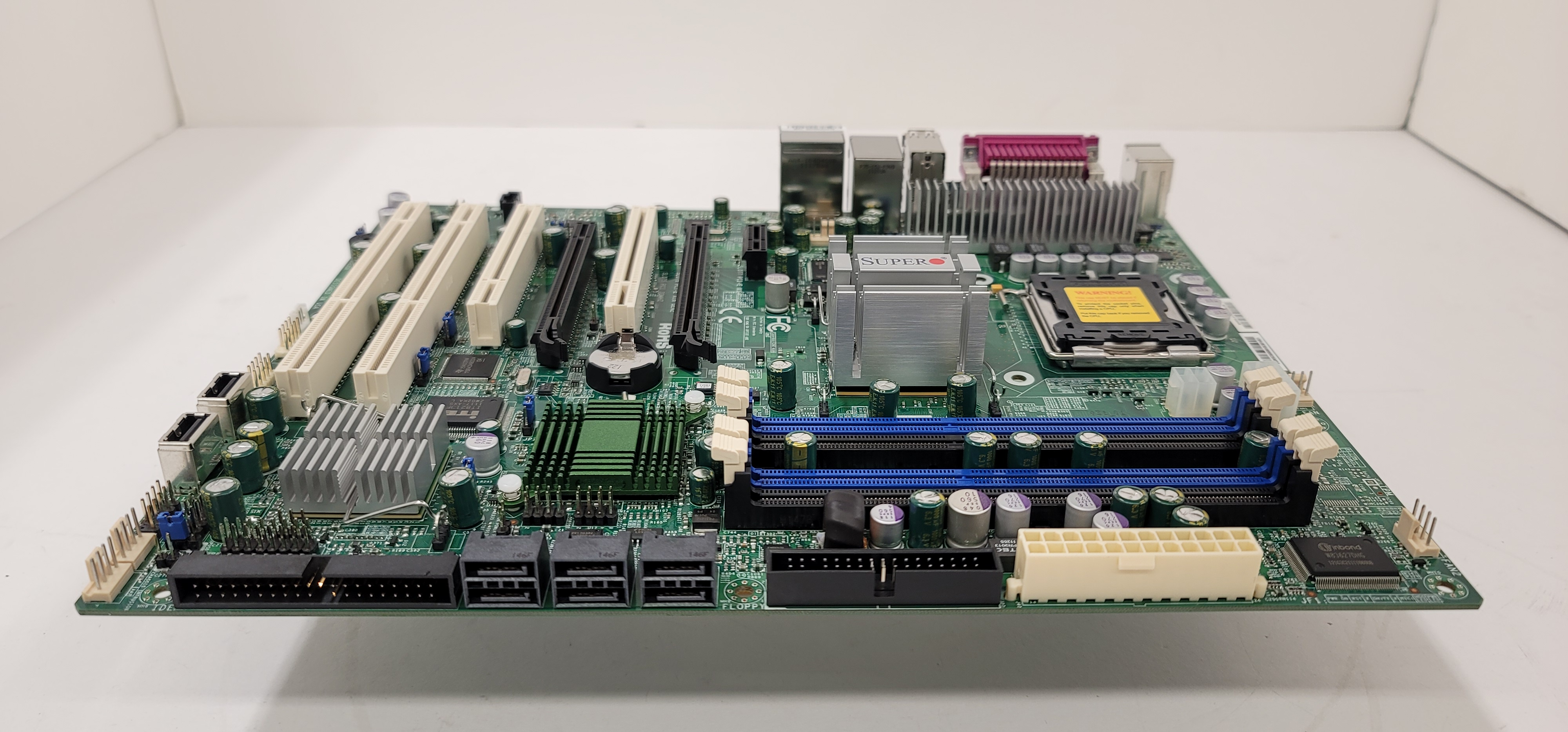

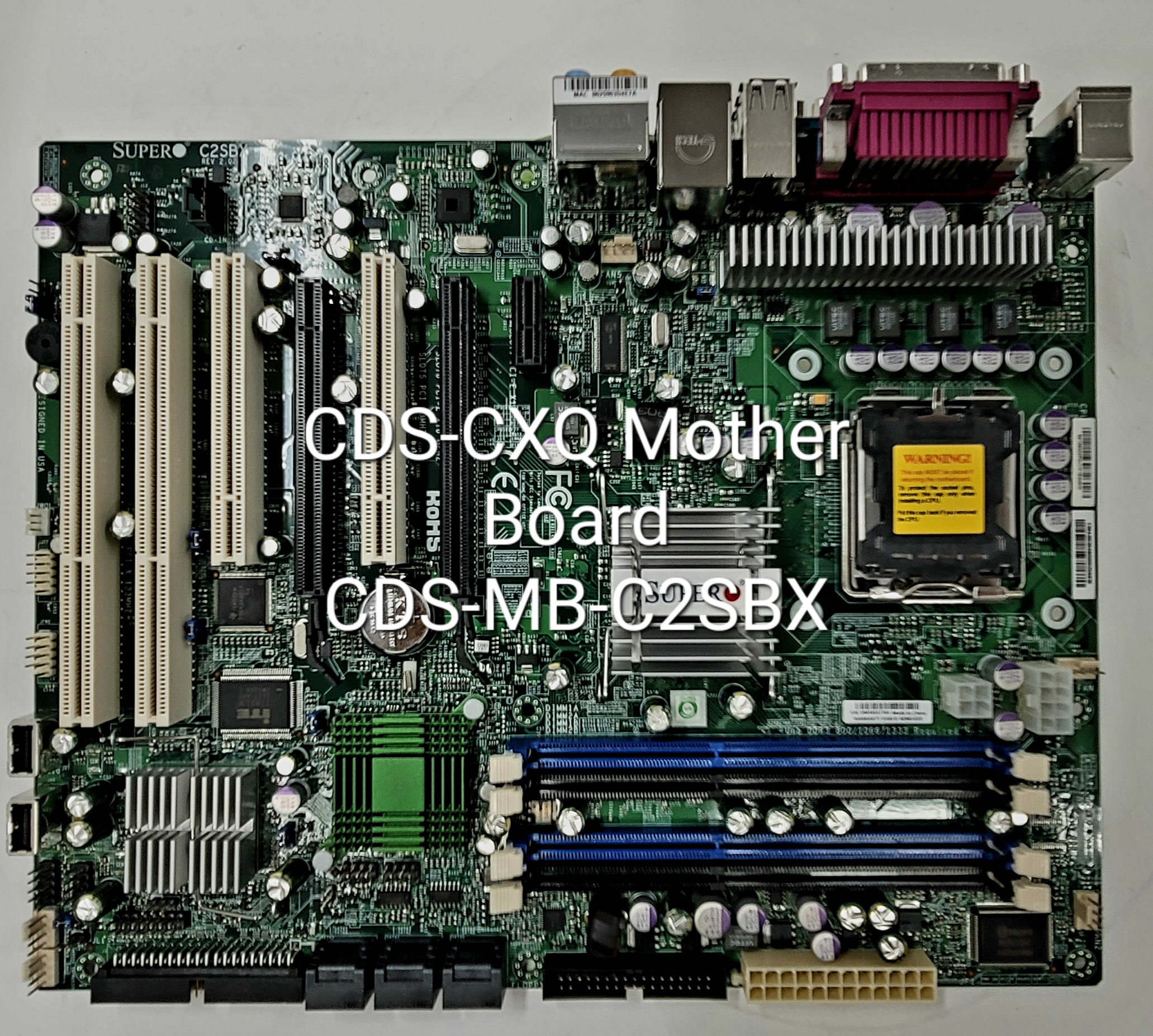

| Mother Board |
Core 2 Quad ATX Intel Q35 LGA775 Socket UDMA100 1333 1066 800MHz Bus Serial ATA-300 RAID 0 1 5 10 Support 2 x Gigabit Ethernet Video HD Audio (8-channel) |
| Intel® Chip Set |
Intel® Q35 chipset ICH9DO |
| 2x PCI Express / 5x PCI |
1x (x16) PCI-e slot 1x (x4)(using x8) PCI-e slot 5x 32-bit 33MHz PCI (5V) slots |
| BIOS Version |
AMI® Aptio® Beyond BIOS 64Mb SPI Flash EEPROM |
| DDR3 |
4GB, 2x2GB DDR3 1333MHz PC3-10600 240-Pin DIMM CL9 1.5V 128x8 HY Unbuffered Non-ECC |
| Optional Max Memory |
8GB, 2x4GB DDR3 PC3-10600 240-Pin DIMM CL9 1.5V Unbuffered Non-ECC |
| Fixed Disk 1 (M.2 SSD) |
250GB 2.5" SATA-600 SSD 100K IOPS Random 550MB/s 32 Layer 3D V-NAND W10Y |
| Fixed Disk 2 (M.2 SSD) |
500GB 2.5" SATA-600 SSD 100K IOPS Random 550MB/s 32 Layer 3D V-NAND |
| Dual SSD |
Dual SATA SSD 2.5" Hot Swap Drive Bay Assembly |
| DVD/RW Drive |
LG SerialATA DVDRW Drive DL 24X +/- Black Storage Device |
| Floppy Drive |
1.44Mb 3.5" Floppy Disk Drive |
| SATA III |
6 x SATA2 (3Gbps) Integrated |
| LAN1 Intel® |
LAN1 Ethernet Intel® i350 Dual port Gigabit LAN Controller |
| LAN2 Intel® |
LAN2 Ethernet Intel® i350 Dual port Gigabit LAN Controller |
| Network Adapter (Optional) |
LAN3, LAN4, LAN 5 & LAN6 Ethernet Intel PRO/1000 4-Port NIC Intel PRO/1000 PT Server Adapter x4 EN Fast EN Gigabit EN 10Base-T 100Base-TX 1000Base-T 4 Ports |

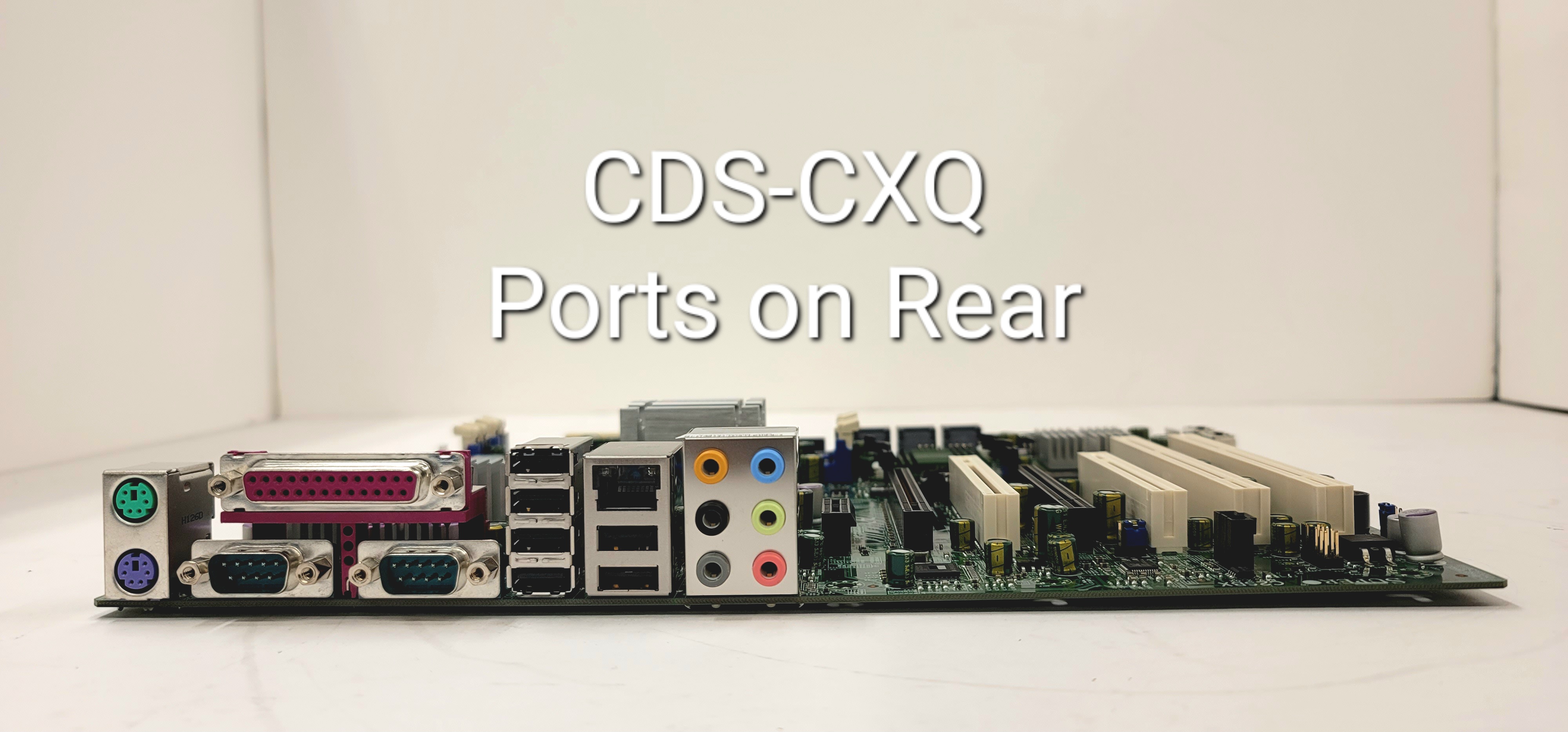

| 12 USB Ports |
6 x SATAIII (3Gbps performance) 12x USB 2.0 / 1.1 compatible (6x rear ports + 2x on-board + 2x headers) |
| Serial Ports |
4 Serial Ports. 1 x Fast UART 16550 serial ports plus 3x Serial Headers |
| Parallel Port |
1x Parallel Port Header |
| Display Ports |
1 x VGA Port Matrox G200eW 16MB DDR2 graphics |
| Power Supply |
500Watt High Efficiency Switching AC Input 100-240V 47-63Hz |
| Operating Temperatures |
0~60°C (32~140°F) |
| Operating Humidity |
5%~90% relative humidity, non-condensing |
| Microsoft |
Microsoft Windows Embedded Standard 2009 Runtime License 1-LIC |
| Software Drivers |
CDS-CXQ-C2SBX Driver CD |
| Lbs |
~50Lbs |
| Powder Coat |
Custom Black Powder Coating with Chrome Handles |
| 4U Rackmount |
19.0"W x 7.0"H x 20.0"D |
| Limited Warranty |
1-Year Warranty |
