CDS-FB17

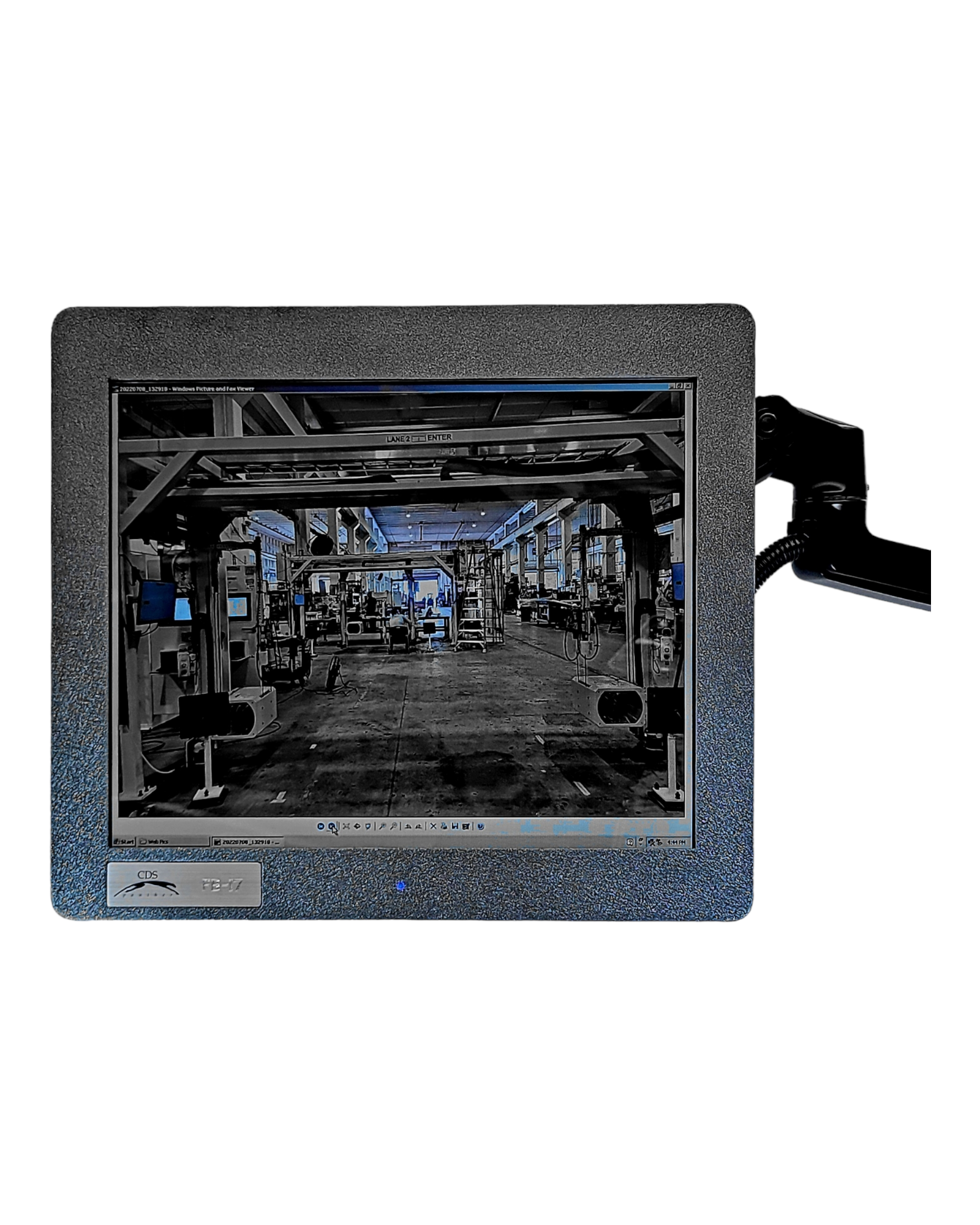

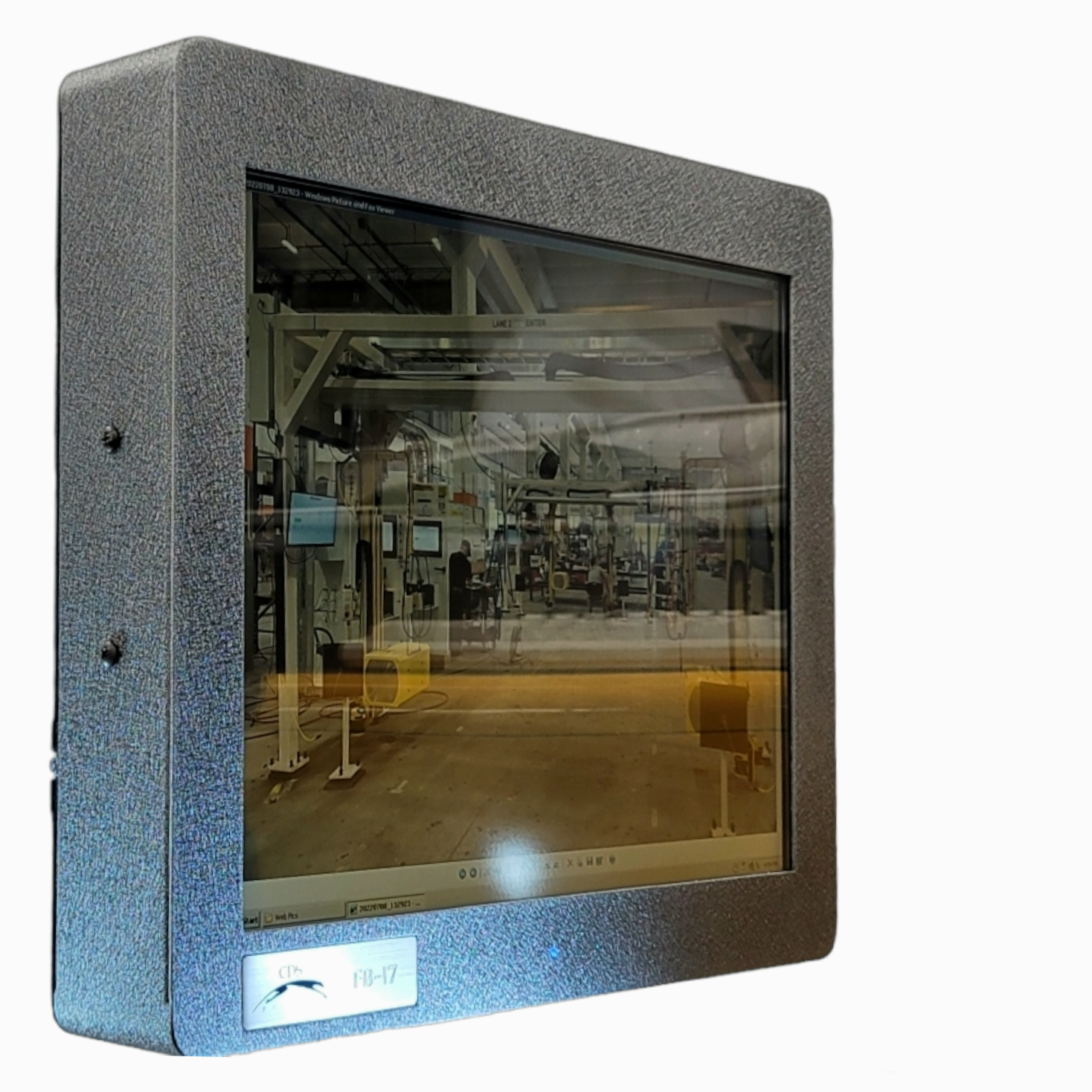

CDSpanther FB17 - 17" Industrial Pit Monitor, VGA, Heavy-Duty Shielded, Shatter Resistant, Splash-Proof, NEMA4/4X Compliant, 3" Square VERSA Mount, Drop-In Replacement for CDS Model FB15

    Introducing the 17" Industrial Pit Monitor, a robust and reliable solution designed for demanding environments. This flat-screen, color VGA monitor features heavy-duty shielding, making it shatter-resistant and splash-proof, ensuring durability and longevity. Key Features: Screen Size: 17 inches Display Type: Flat-Screen, Color VGA Durability: Heavy-Duty Shielded, Shatter Resistant, Splash-Proof Mounting Options: VERSA Mount, with both Rear and Side Mount capabilities Display Technology: TFT-Active Matrix Analog Brightness: 300 cd/m² Material: Sturdy Aluminum construction Dimensions: 16" Width x 14" Height x 2.5" Depth Compatibility: Serves as a direct drop-in replacement for the CDS Model FB15 L2190 This monitor is engineered for industrial applications, providing a reliable display solution with enhanced protection and versatile mounting options.

Description:

Model: CDS-FB17

This description outlines the specifications for a heavy-duty industrial monitor. Here are the details:

  1. Screen Size: 17 inches
  2. Type: Flat-Screen, Color, VGA
  3. Features:
    • Heavy-Duty Shielded
    • Shatter Resistant
    • Splash-Proof

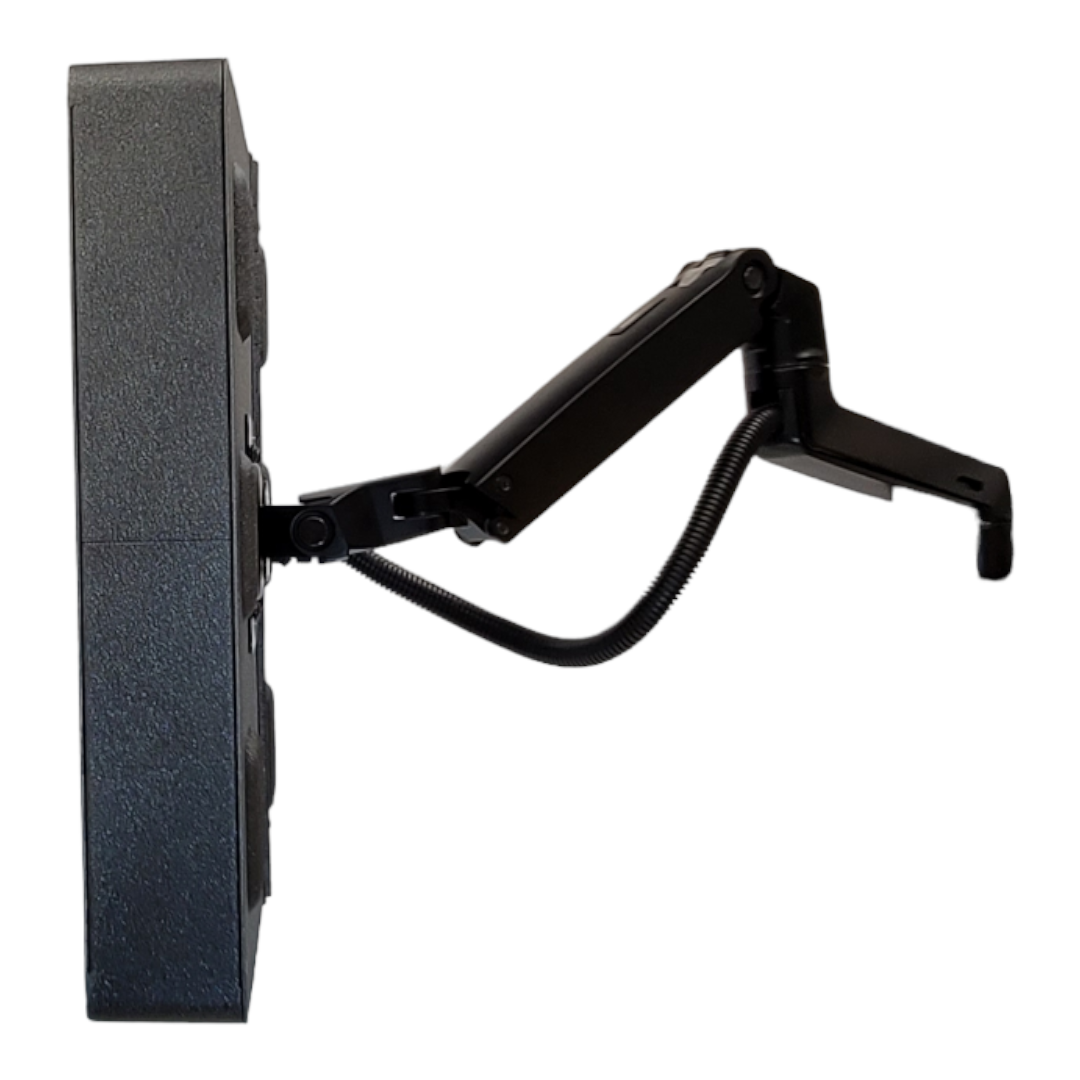

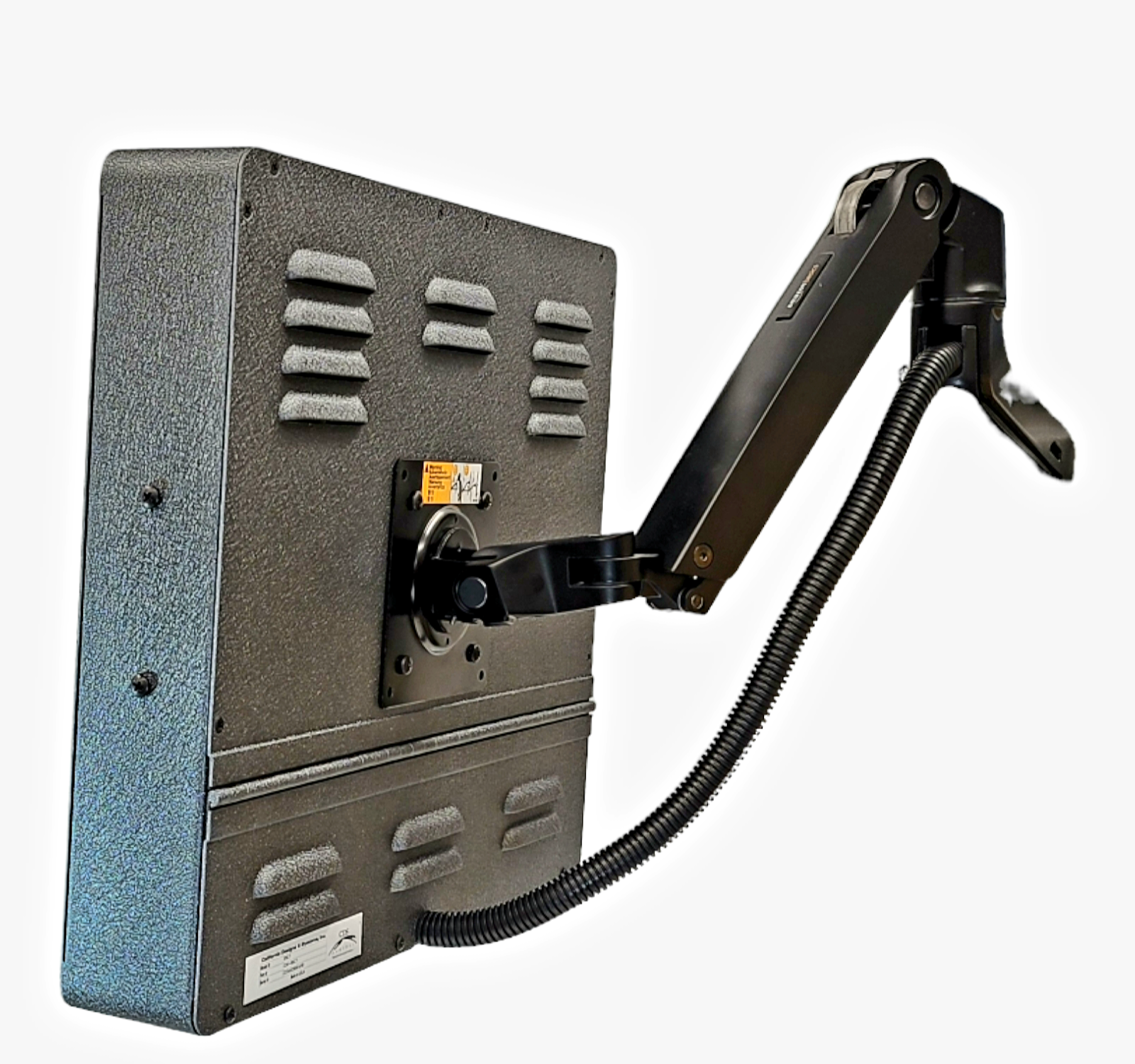

  4. Mounting Options:
    • VERSA Mount
    • Rear & Side Mount
  5. Display Technology: TFT-Active Matrix
  6. Brightness: 300 cd/m²
  7. Material: Aluminum
  8. Dimensions:
    • Width: 16 inches
    • Height: 14 inches
    • Depth: 2.5 inches
  9. Drop-In Replacement For: CDS Model FB15 L2190

Specifications :

Enclosure

This description outlines the specifications for a heavy-duty industrial monitor. Here are the details:

  1. Screen Size: 17 inches
  2. Type: Flat-Screen, Color, VGA
  3. Features:
    • Heavy-Duty Shielded
    • Shatter Resistant
    • Splash-Proof
  4. Mounting Options:
    • VERSA Mount
    • Rear & Side Mount
  5. Display Technology: TFT-Active Matrix
  6. Brightness: 300 cd/m²
  7. Material: Aluminum
  8. Dimensions:
    • Width: 16 inches
    • Height: 14 inches
    • Depth: 2.5 inches
  9. Drop-In Replacement For: CDS Model FB15 L2190

DISPLAY

Display Monitor

17" LED  Aspect Ratio Monitor Displays  17.1" Viewable 1280 x 1024 TN 250 cd/m² 1000:1 5ms VGA

Display Ports

1x VGA, HDDB15 Male

Display Resolution

1280x 1024

Frequency

Horizontal 24 ~ 82KHz

Vertical 50 ~ 75Hz

Panel Type

TN

Static Contrast Ratio

1,000:1

Static Contrast Ratio

160º horizontal, 160º vertical

Viewing Area

17" Diagonal

Back Light

40,000Hrs

Light Source

LED with 50,000 hours (min.)

Brightness

250 cd/m2

Colors

16.7M
