CDS-FB22SR

22" Spark-Resistant Pit Monitor - FB22SR

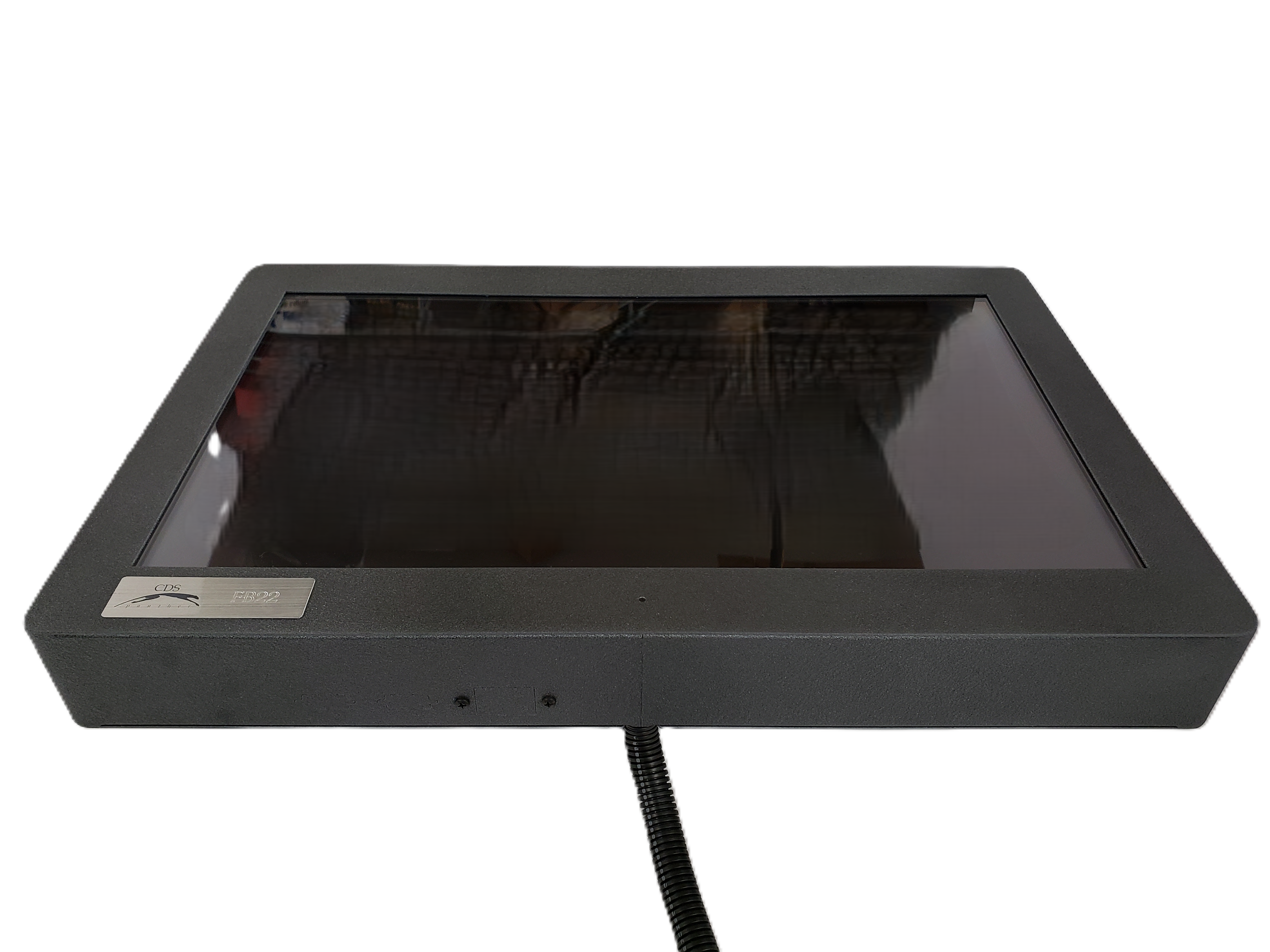

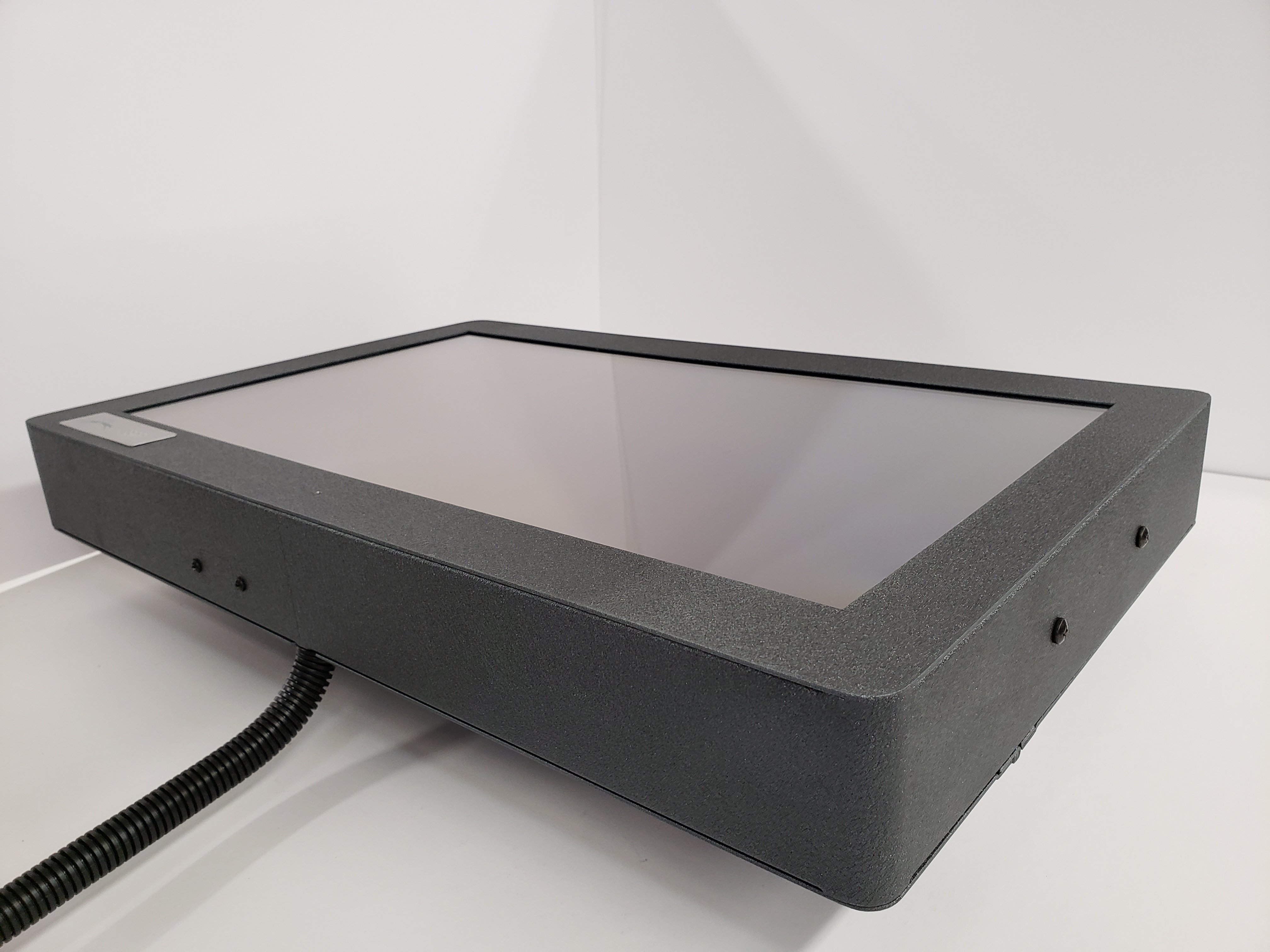

    Rugged, field-proven monitor engineered for automotive pit and industrial environments with enhanced protection for welding applications. The CDS-FB22-SR is a heavy-duty enclosed industrial monitor designed for use in automotive service pits and production environments where exposure to oil, coolant, and hot metal debris is common. Featuring a weld-spark resistant design with a tempered glass protective shield, it provides added durability in robotic welding cells and fabrication areas. Designed for reliability and flexible installation, it supports both VESA arm mounting and side bracket mounting, while its splash-resistant front provides protection equivalent to NEMA 4 (non-hose-down). The 21.5" widescreen display (1920×1080 Full HD) with HDMI and VGA inputs delivers clear visibility and consistent performance in demanding conditions. Built with a heavy-duty aluminum enclosure, each unit is designed, built, and powder-coated in California (Made in USA) with CDS’s signature silver-splatter finish. Designed for continuous 24/7 industrial operation, the CDS-FB22-SR is a field-proven platform with over 5 years of continuous deployment in automotive manufacturing environments.

Description:

Model: CDS-FB22SR

Proven in Automotive Manufacturing – Over 5 Years of Continuous Deployment.

The CDS-FB22-SR is a rugged enclosed industrial monitor designed for automotive service pits, fabrication areas, and welding environments where durability and spark resistance are critical. Built on a field-proven platform, it provides reliable widescreen performance in demanding industrial applications.

Key Features

  • Designed for integration into automotive service pits and production environments

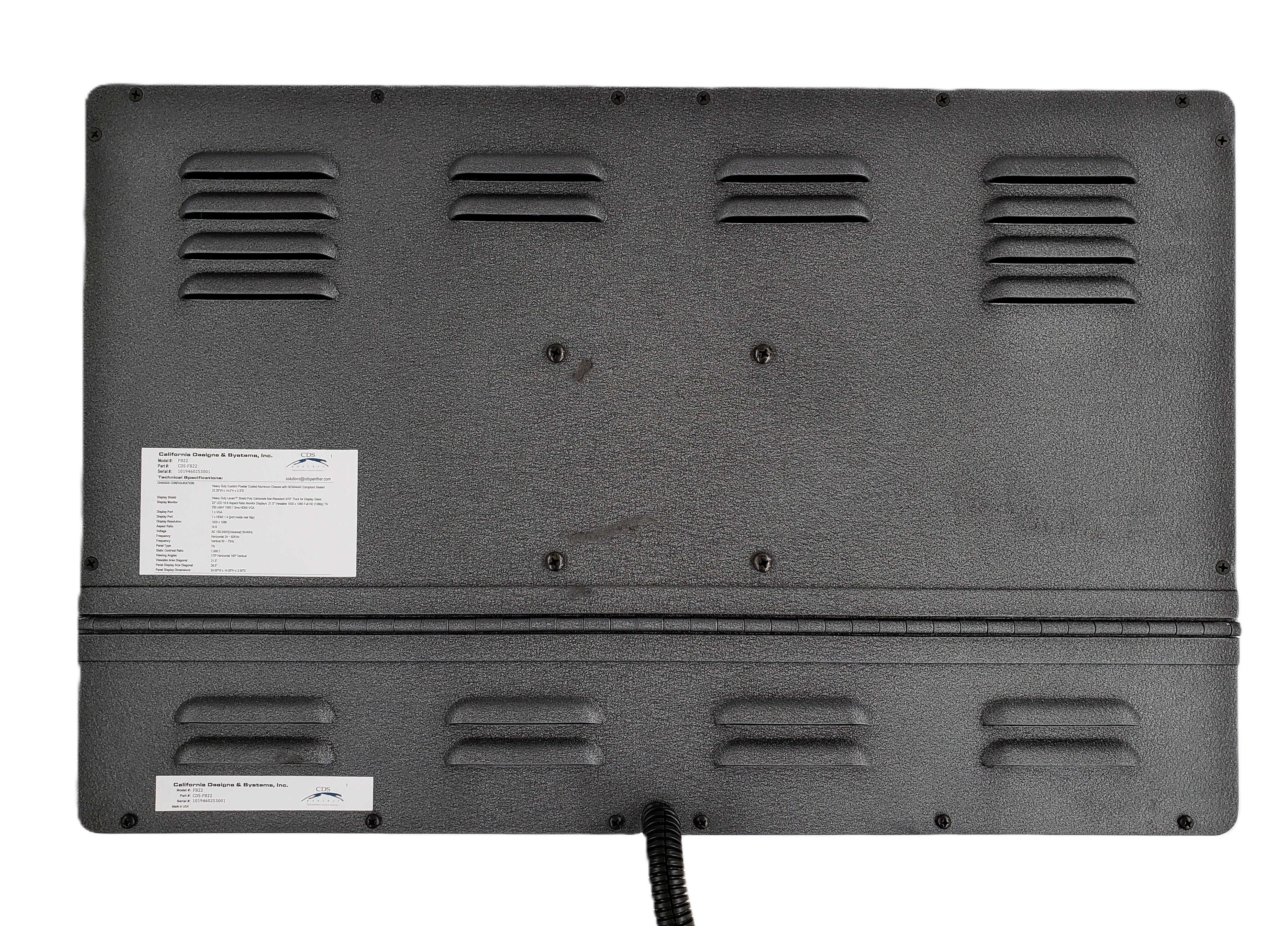

  • Enclosed design for flexible mounting (VESA rear mount and dual side mounts)
  • Weld-spark resistant design with tempered glass protective shield
  • Designed for robotic welding cells and fabrication environments
  • Splash-resistant front (oil, coolant, and fluid exposure)
  • Protection equivalent to NEMA 4 front (non-hose-down, splash-resistant)

Display

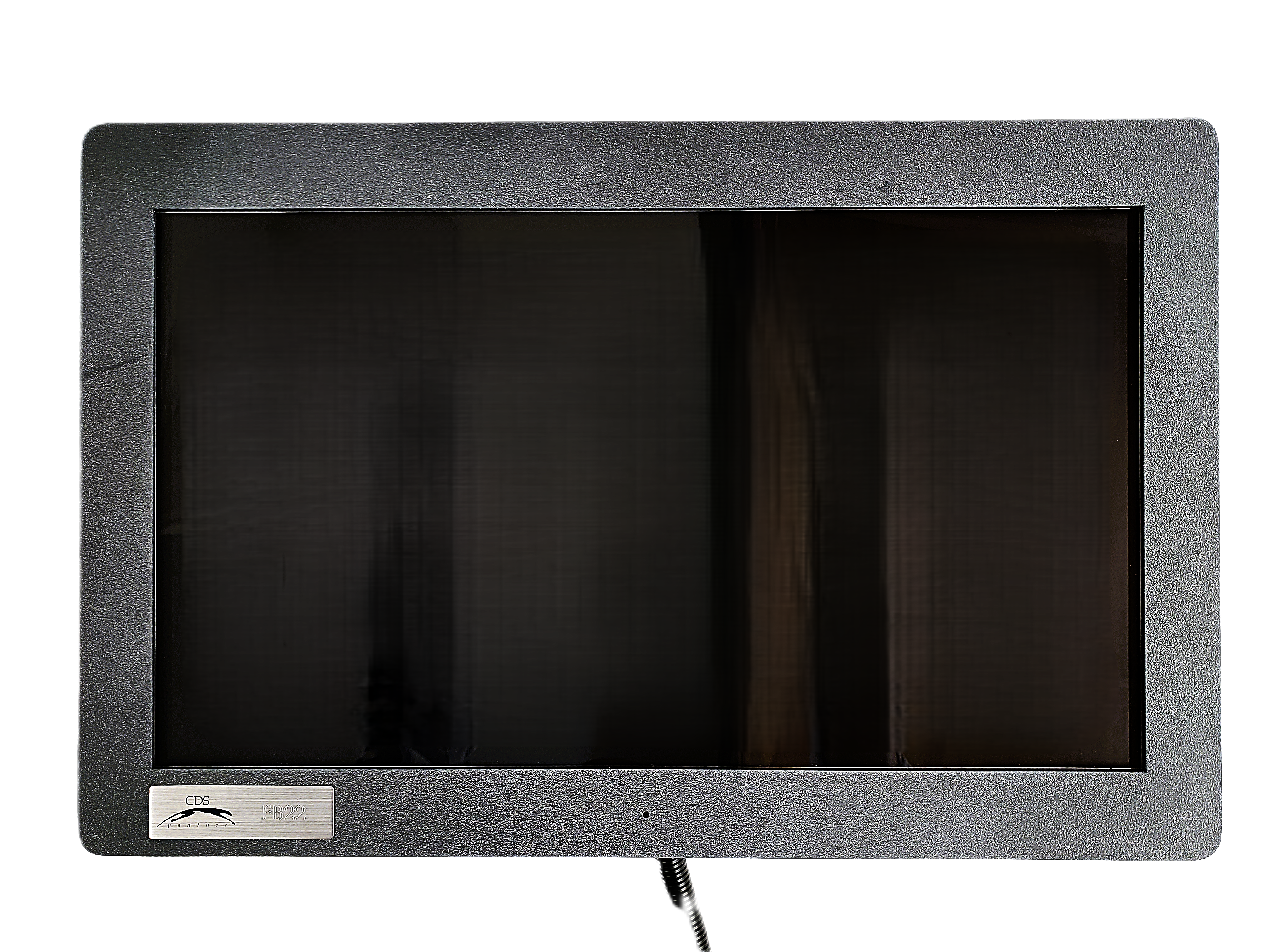

  • 21.5" viewable widescreen display (1920 × 1080 Full HD, 16:9)
  • 250 cd/m² brightness
  • 1000:1 contrast ratio
  • HDMI and VGA inputs

Construction

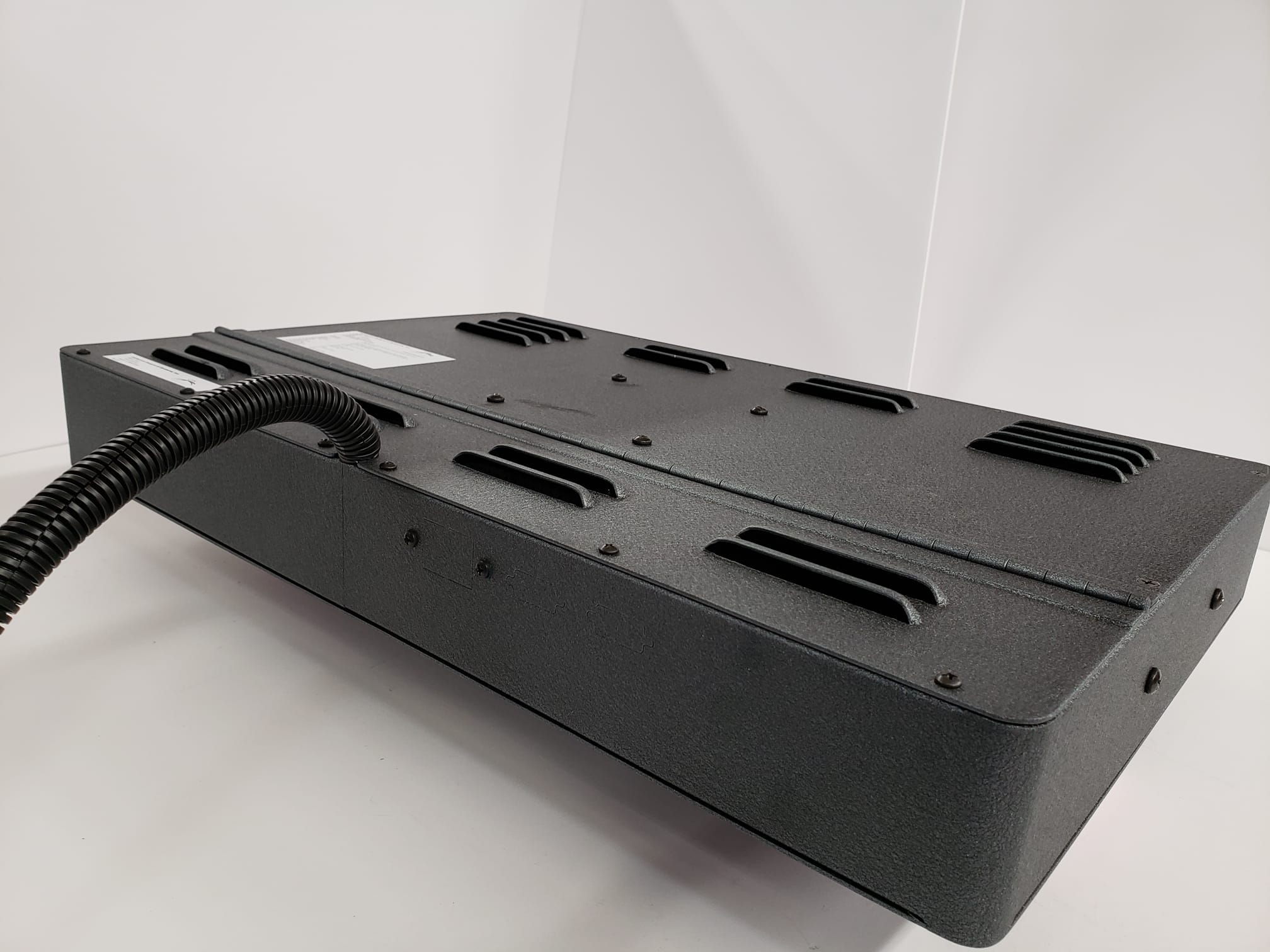

  • Heavy-duty aluminum enclosure, 22"W × 14"H × 3"D, with CDS custom silver-splatter powder-coated finish…
  • Tempered glass protective shield engineered for weld-spark resistance, providing protection against hot metal debris, abrasion, and high-temperature exposure in welding and fabrication environments
  • Chassis designed, built, and powder-coated in California (Made in USA)

Mechanical

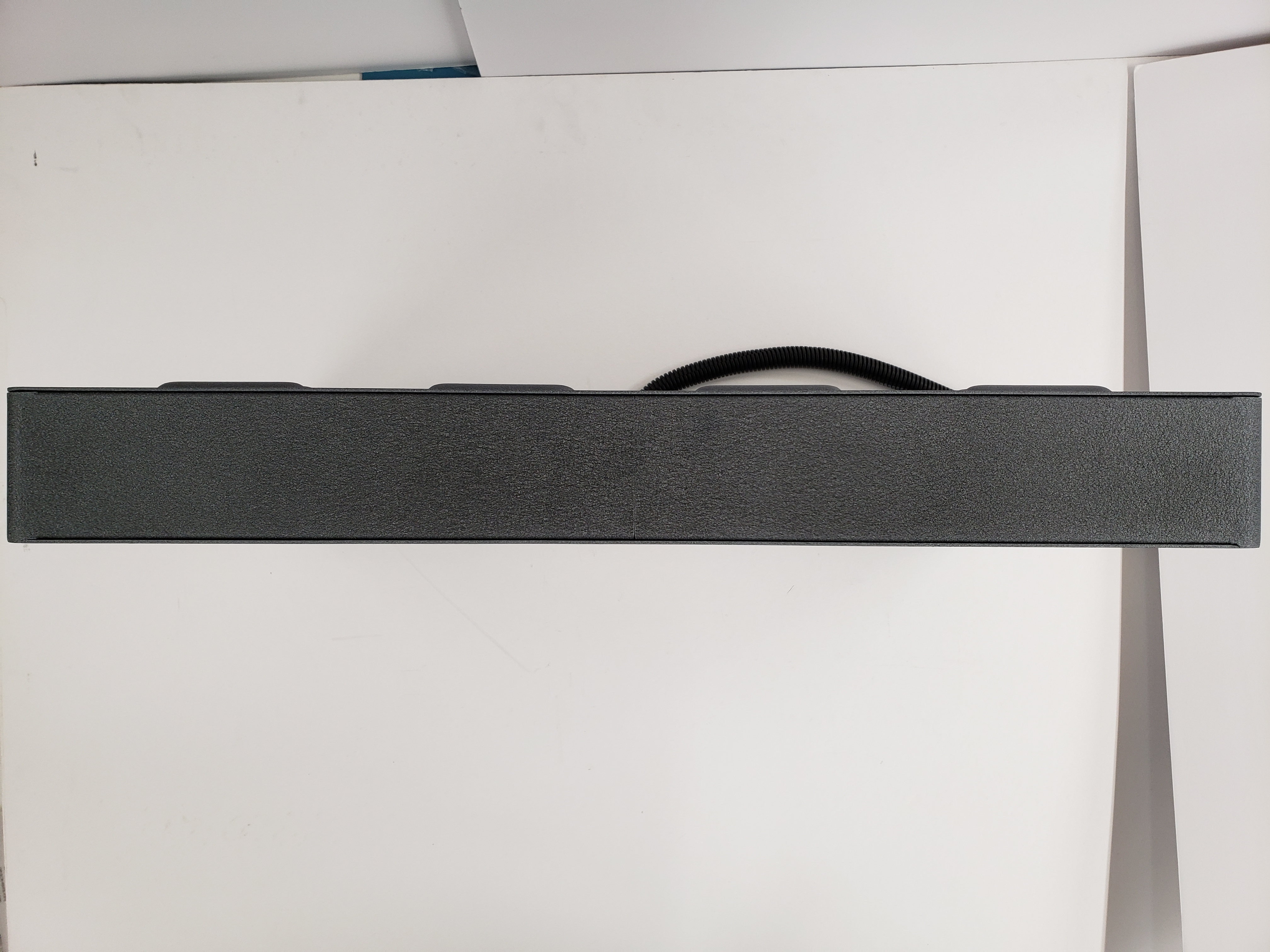

  • Dimensions: 22"W × 14"H × 3"D

Reliability

  • Designed for continuous 24/7 industrial operation
  • Long-life LED backlight

Support & Compatibility

  • 3-Year Warranty
  • Field-proven platform with 5+ years of continuous deployment in automotive manufacturing environments
