CDS-FM22

22" Industrial Panel Monitor

    FM22 Features: 22" Industrial Grade Flat Panel Monitor: • Panel Mountable NEMA4/4X/12 Compliant • 124"W x 16'H • Rust Resistant Heavy Duty Aluminum Chassis Assembly • Powder Coated with our CDS Signature Custom Silver-Splatter Wrinkle Finish (Custom Colors Available) • 22” Wide Screen Display • High Definition HD 1920x1080 (1080p) Resolution • 16:9 Aspect Ratio • 16.7 Million Colors Capability • 5ms Response Time • 30000 Hours (Min) Backlight Life • HDMI and VGA Display Input Ports • Heavy Duty LEXAN® Shield, Mar Resistant, Shatter Resistant, Oil, Gas & Water Resistant • 3-Year Warranty

Description:

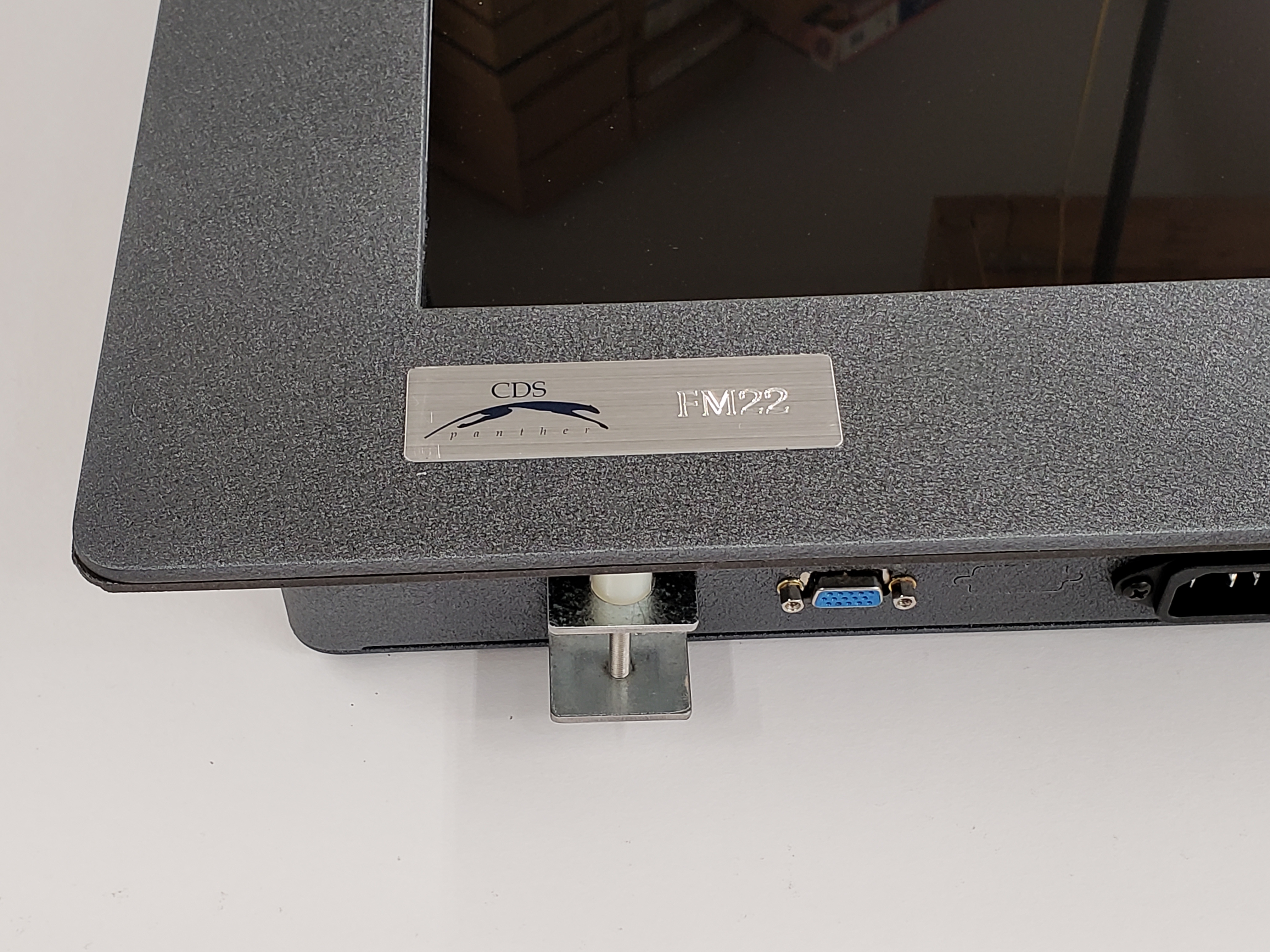

Model: CDS-FM22

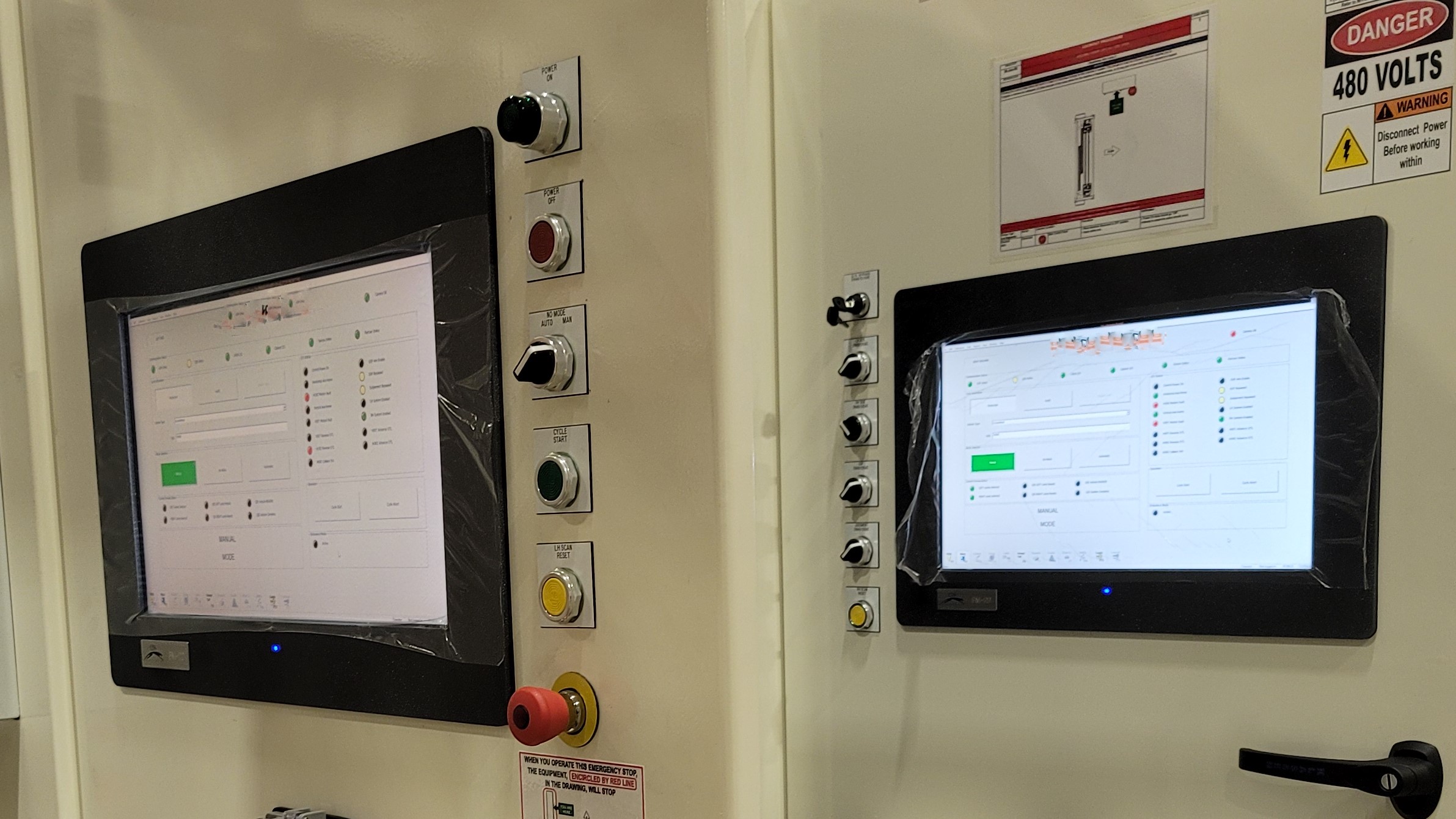

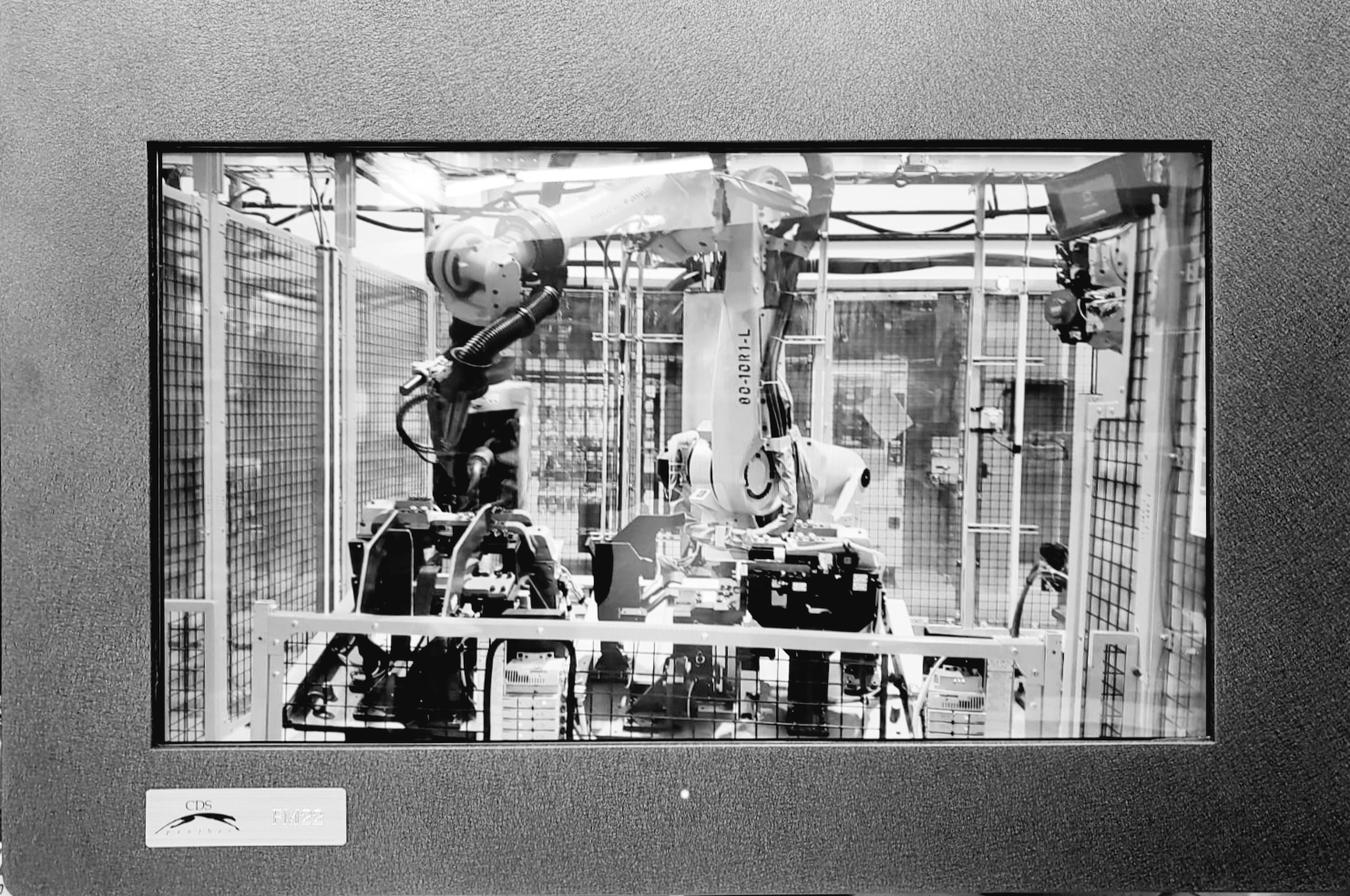

The FM22 is an Industrial Flat Panel Mount Display Unit. Suitable for Harsh Environments, such as Manufacturing Plants, Factory Automation Equipment, Oil And Dust Stricken Environments, Off shore Oil Rigs, Food Industry Automation, Aviation and Auto Manufacturing Plants. It has a 22" Shielded Wide LED Screen and Is NEMA4/4X/12 Compliant. The monitor is Panel Mountable and it’s Aspect Ratio is 16:9 and has a Maximum Resolution of 1920x1080 with Full HD (1080p). It has both VGA and HDMI Inputs. The Heavy Duty Aluminum Enclosure is Custom Powder Coated with our signature Silver-Splatter wrinkle finish. The Heavy Duty LEXAN® Shield is Mar Resistant Shatter Resistant & Waterproof. The PORON® Foam Sealing Gasket and 8 Heavy Duty C-Claps, clap the FM22’s front panel to the panel cut-out to form a perfect NEMA12 compliant seal. This keeps water, oil, dust and grease out to ensure long lasting use.

Specifications :

Enclosure

Chassis Configuration
Heavy Duty Custom Powder Coated High Grade Aluminum Chassis, NEMA12/4/4X Compliant Hose Down, Slash Proof, Front Panel Enclosure 24W x 16H x 3"D
Display Shield
22" Diagonal Heavy Duty Lexan™ Shield Poly Carbonate Mar-Resistant 3/16" Thick for Display Glass Protection
Dimensions
24.00"W x 16.00"H x 3.00"D
Panel Cutout Dimensions
22.25"W x 14.50"H
Mounting Options

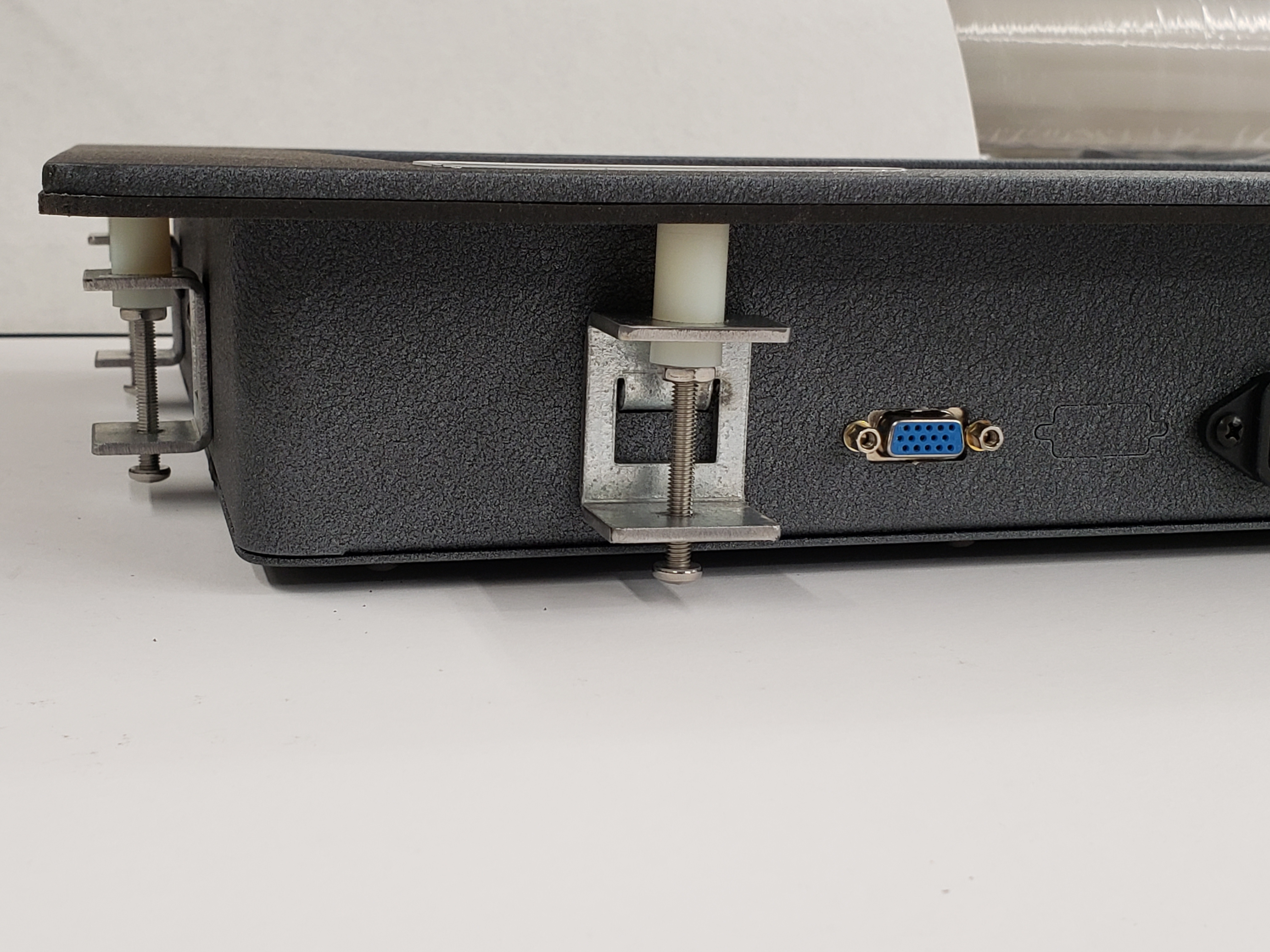

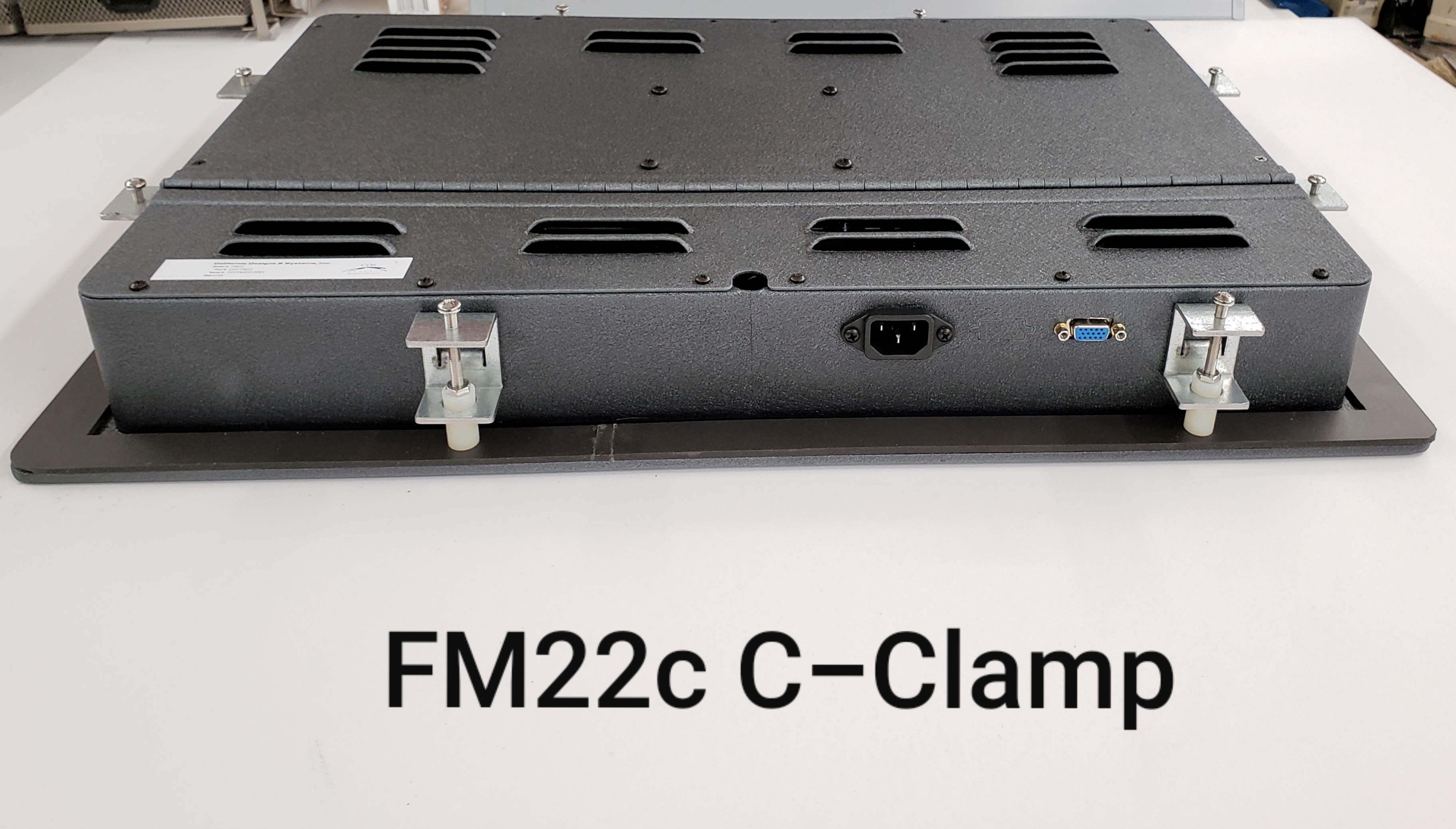

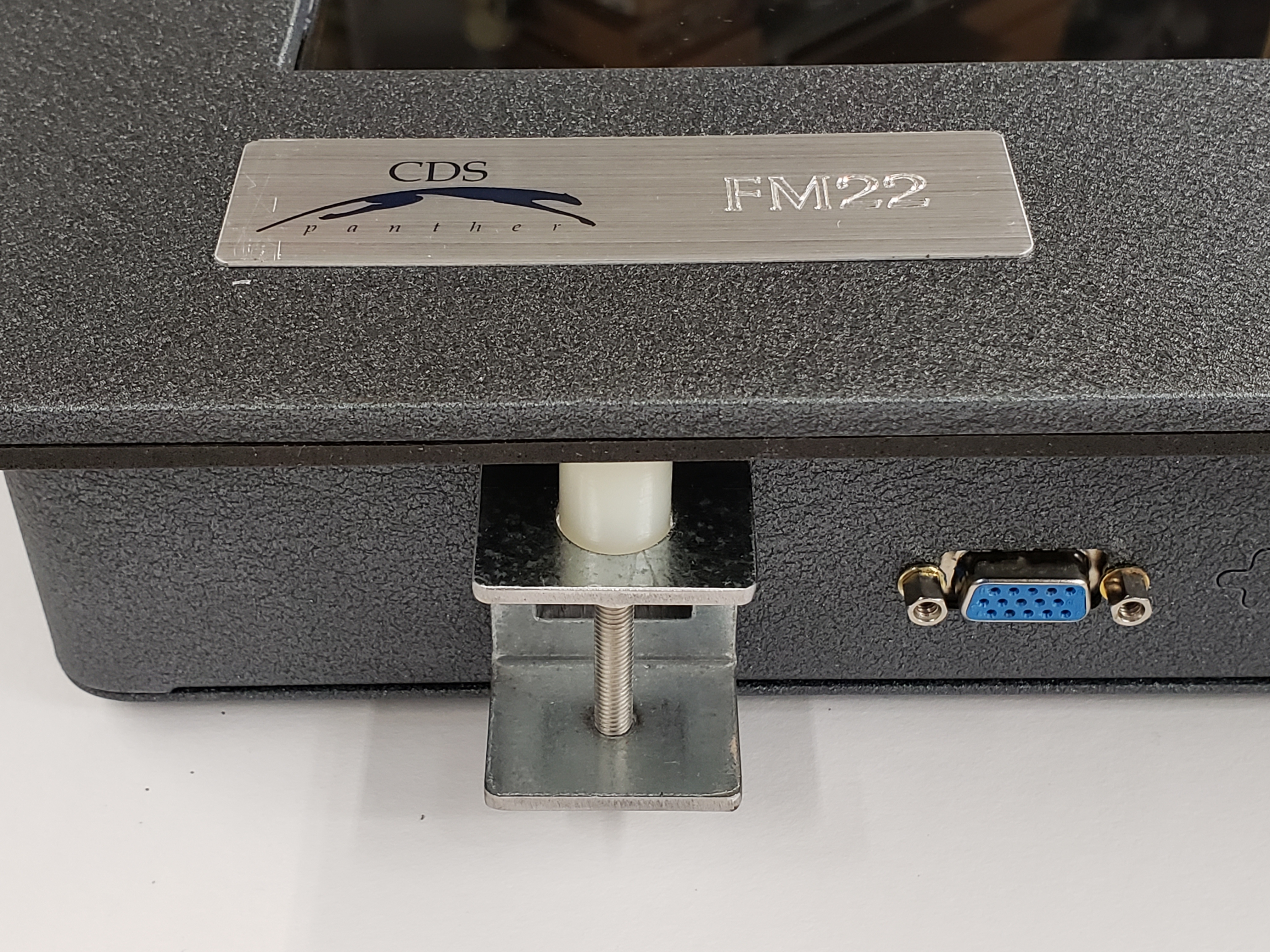

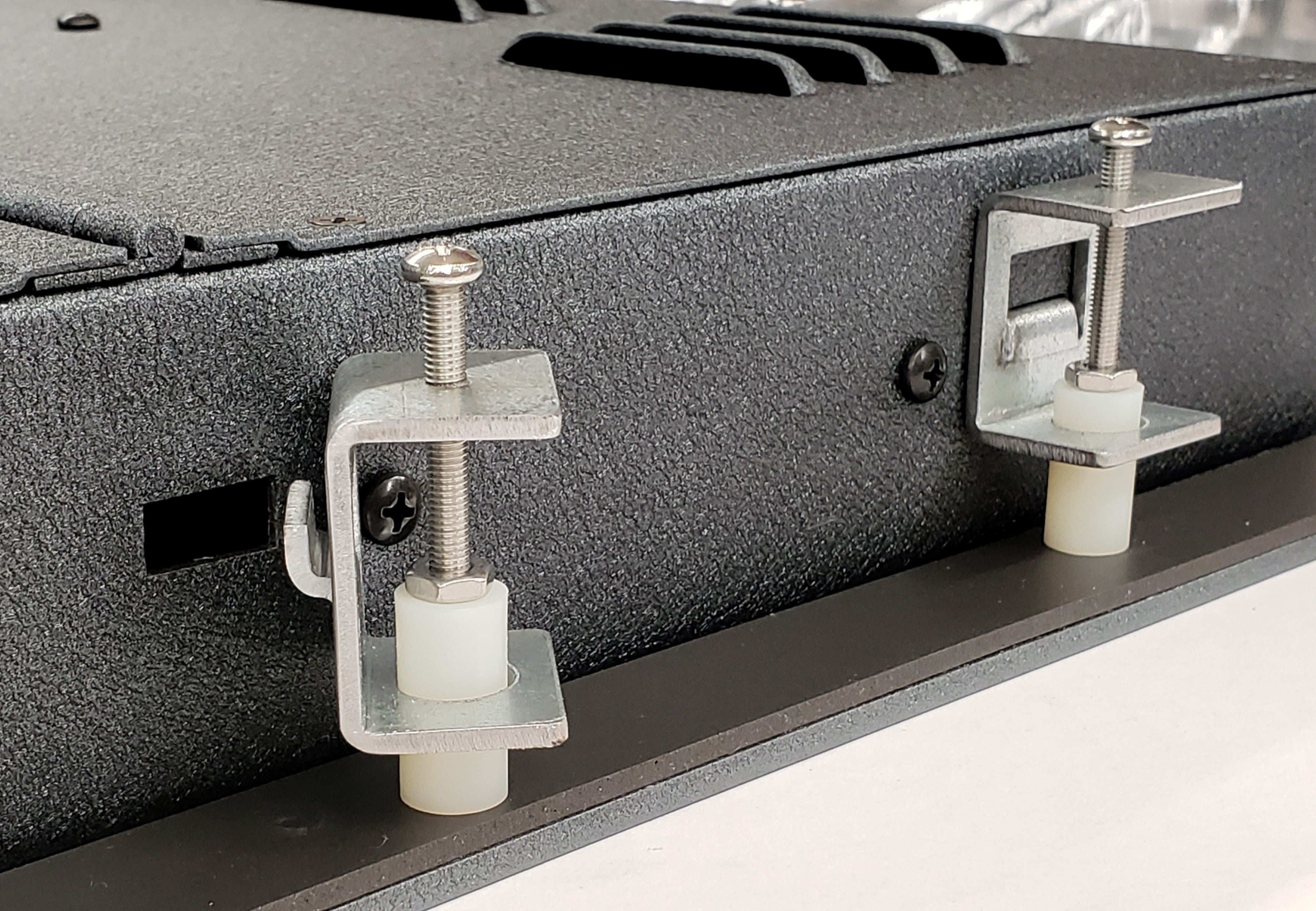

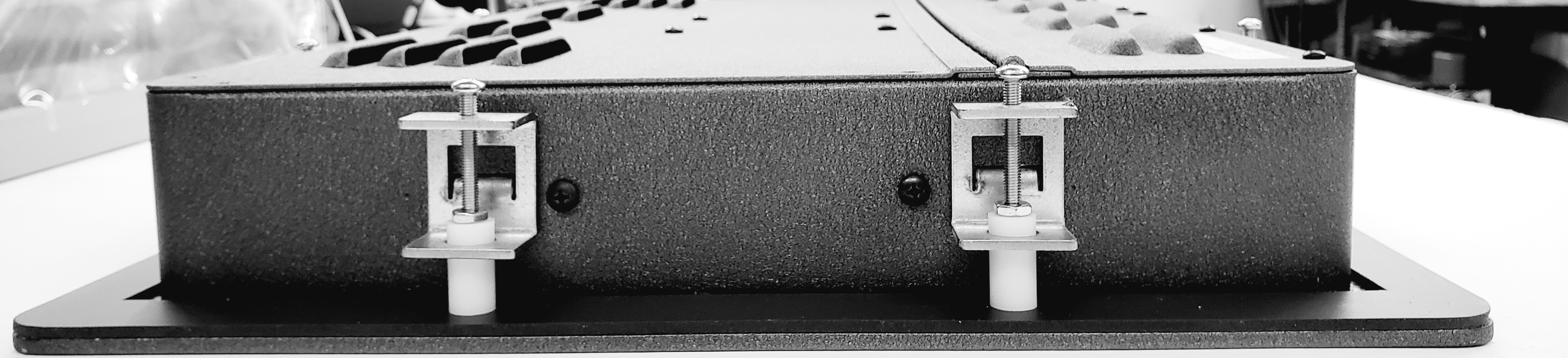

Uses 8 C-Clamp for Mounting onto panel. Also can be Rear or Side Mounted.
Cooling & Ventilation

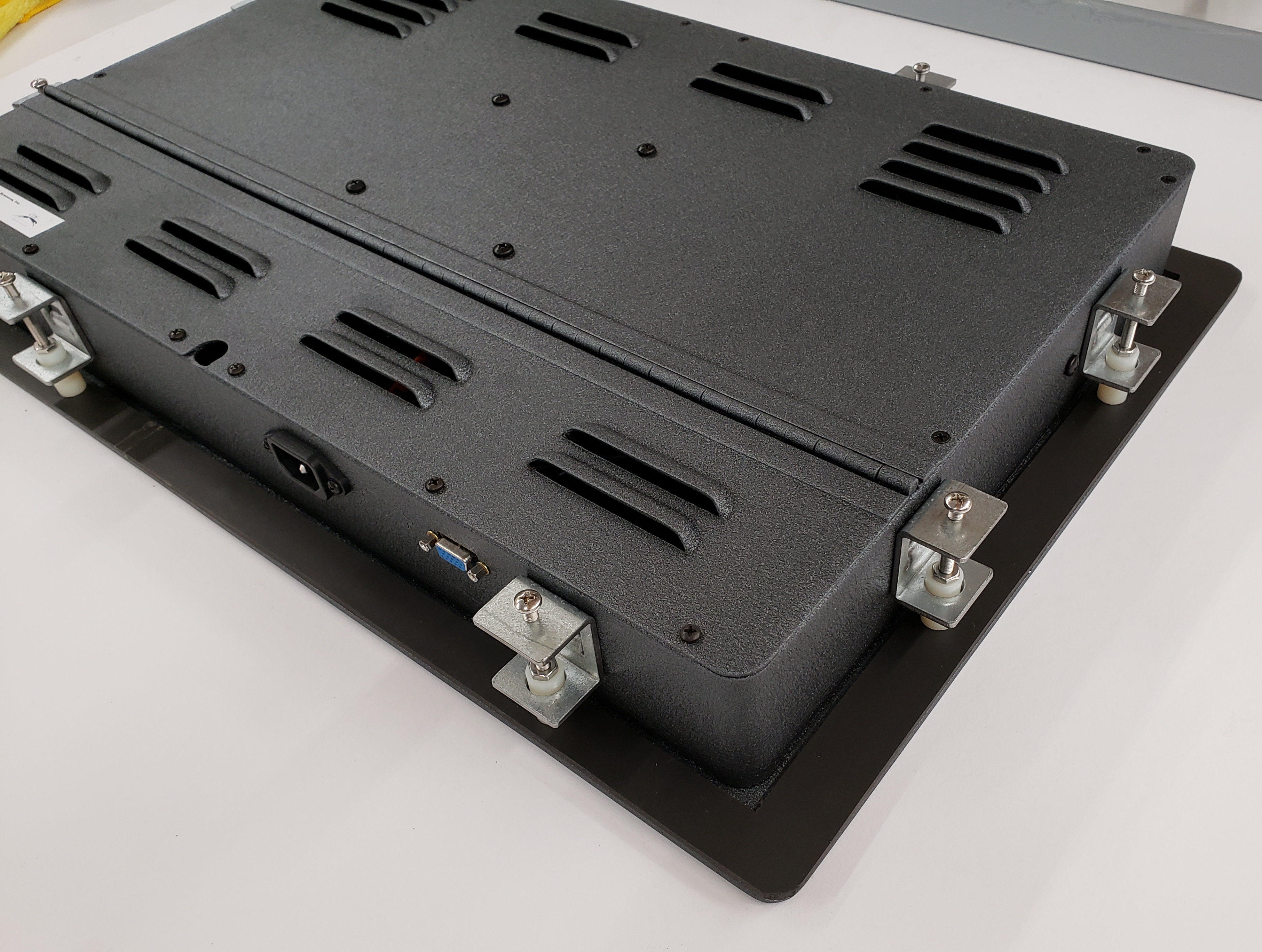

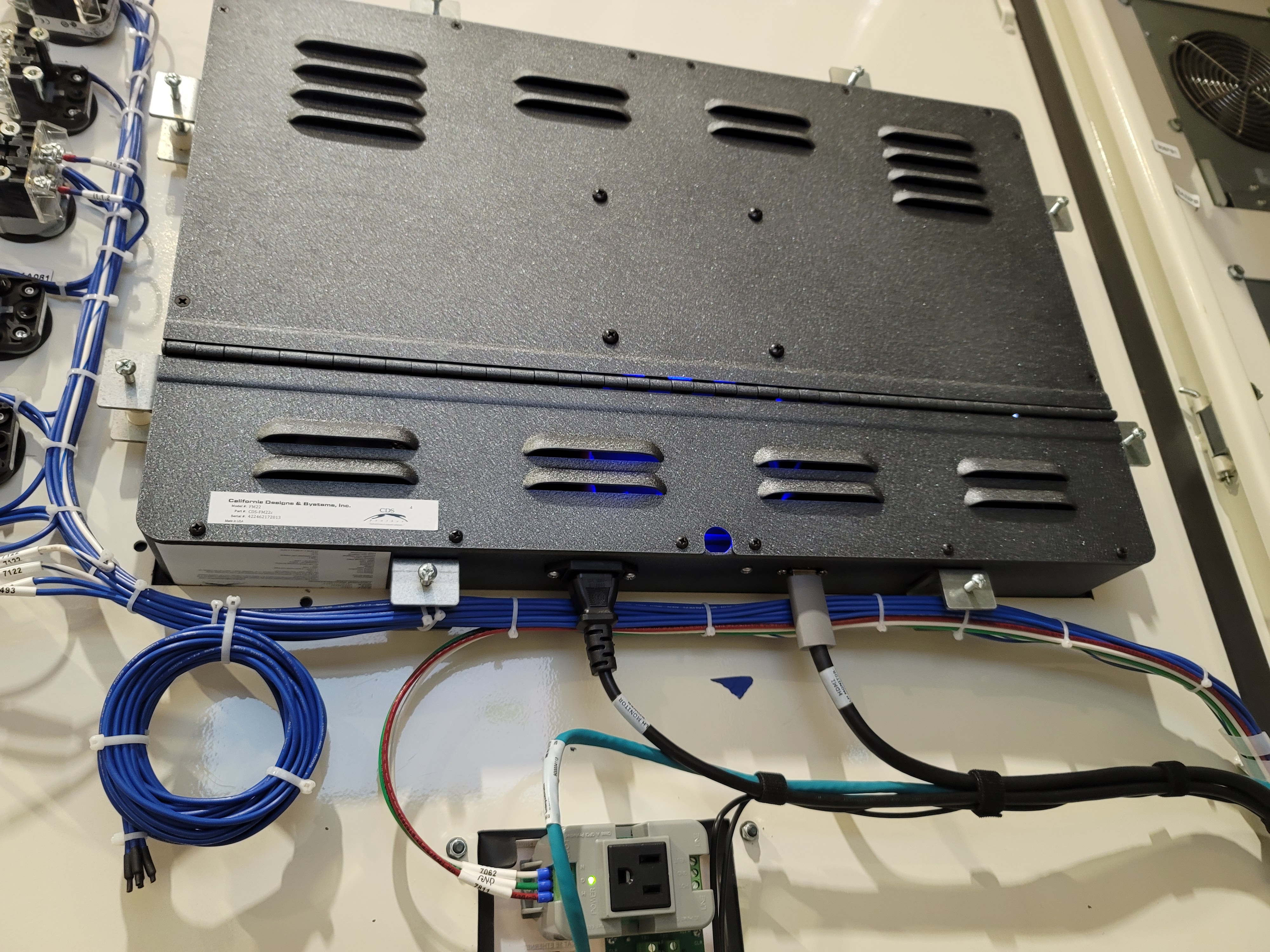

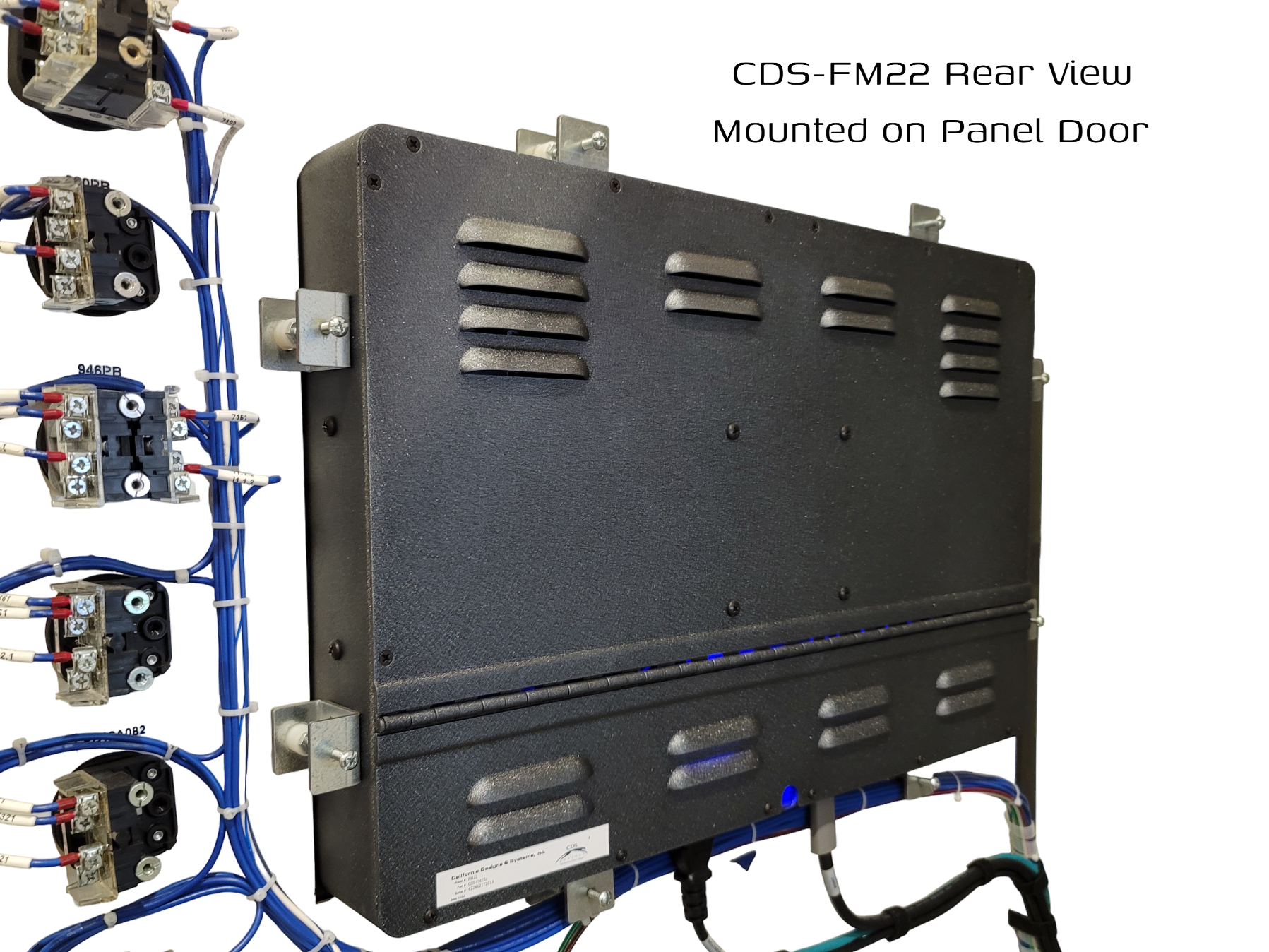

20 x 3" Louvers on Rear Panel

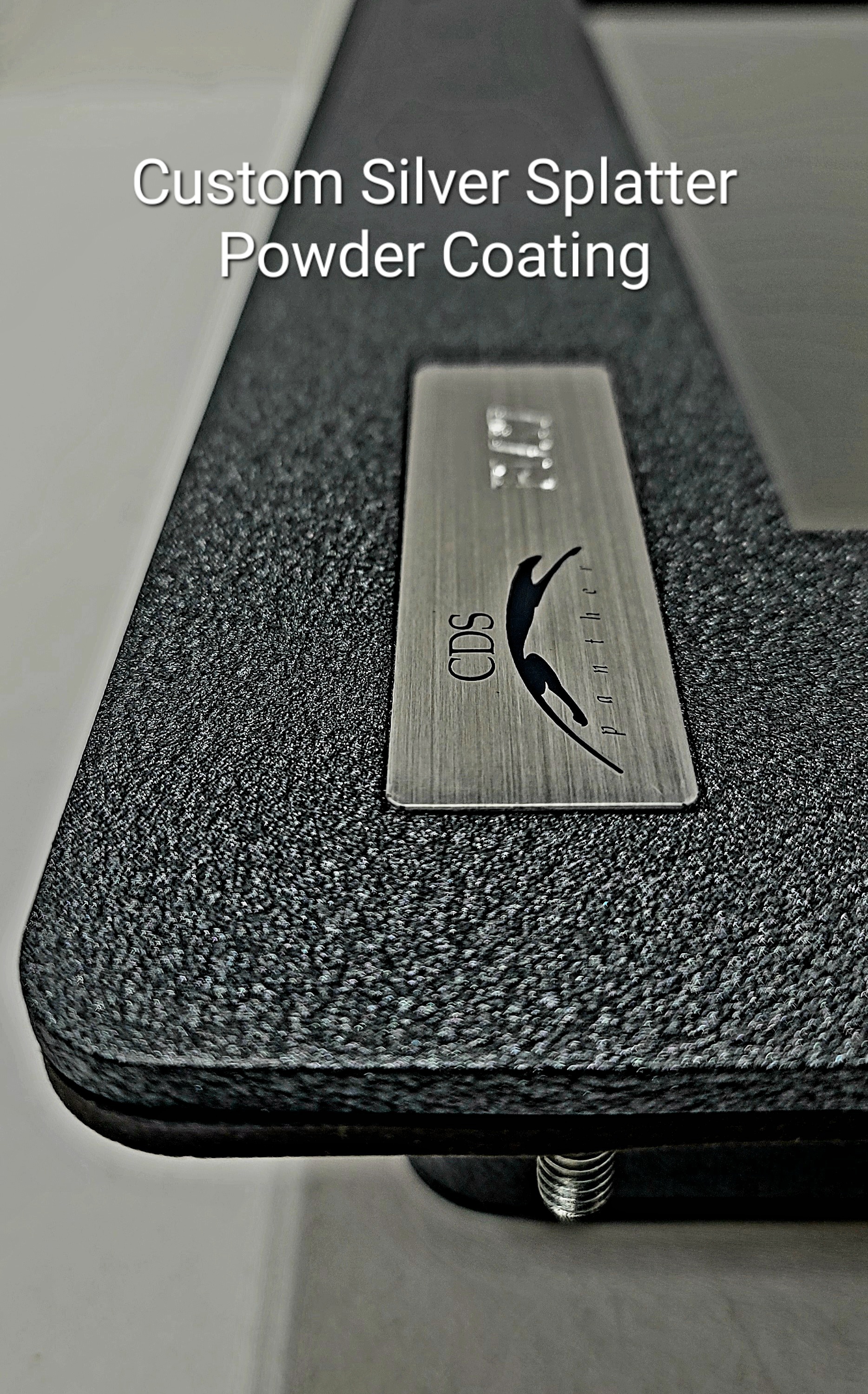

Finish
CDS Signature Silver-Splatter Wrinkle Heavy Duty Powder Coating

DISPLAY

Display Monitor
22" LED 16:9 Aspect Ratio Monitor Displays 1920 x 1080 Full HD (1080p) TN 250 cd/m² 1000:1 5ms HDMI and VGA
Display Ports

1 x VGA

1 x HDMI 1.4 (port inside rear flap)
Resolution
1920 x 1080
Aspect Ratio
16:9
Frequency

Horizontal 24 ~ 82KHz

Vertical 50 ~ 75Hz
Panel Type
TN
Static Contrast Ratio
1,000:1
Viewing Angles
170º Horizontal 160º Vertical
Viewable Area Diagonal
22" Diagonal
Dynamic Contrast Ratio
50,000,000:1
Backlight Life
40,000Hrs
Response Time
5ms (TYPICAL GTG)
Light Source
 WLED
Brightness
 250 cd/m2
Colors
16.7M

POWER

Voltage
AC 100-240V(Universal) 50-60Hz
Power Cable

6' North American Business-Machine NEMA 5-15/IEC 320 SVT 18/3 AWG

COMPATABILITY

PC Resolution (max)
1920 x 1080
Mac® Resolution (max)
1920 x 1080
PC Operating System:
Windows 11 certified

CONNECTORS

Power Socket
3-Pin North American Business-Machine Power Plug Socket Female IEC 320-C16
Power Cable
6' North American Business-Machine NEMA 5-15/IEC 320 SVT 18/3 AWG 6'

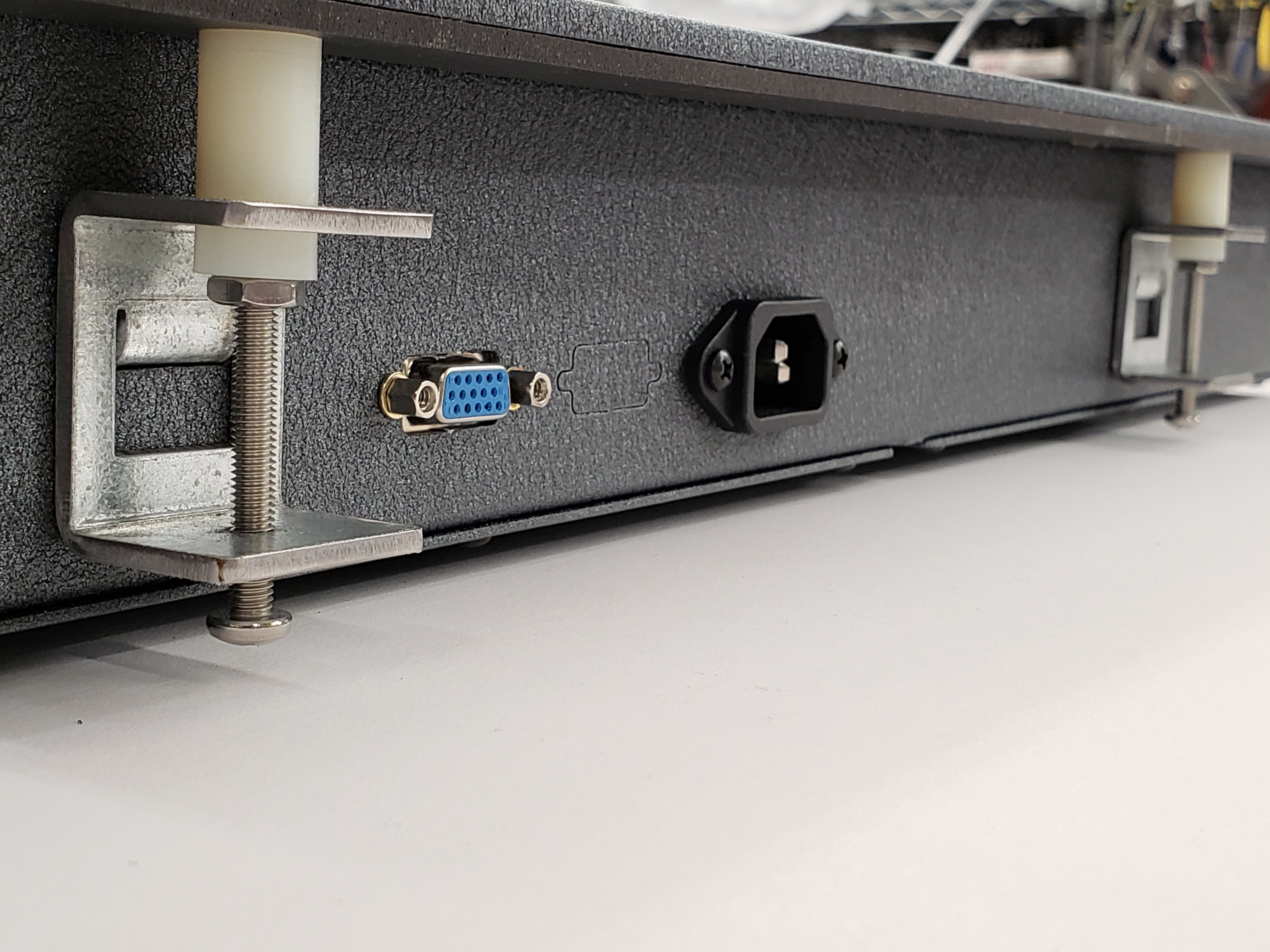

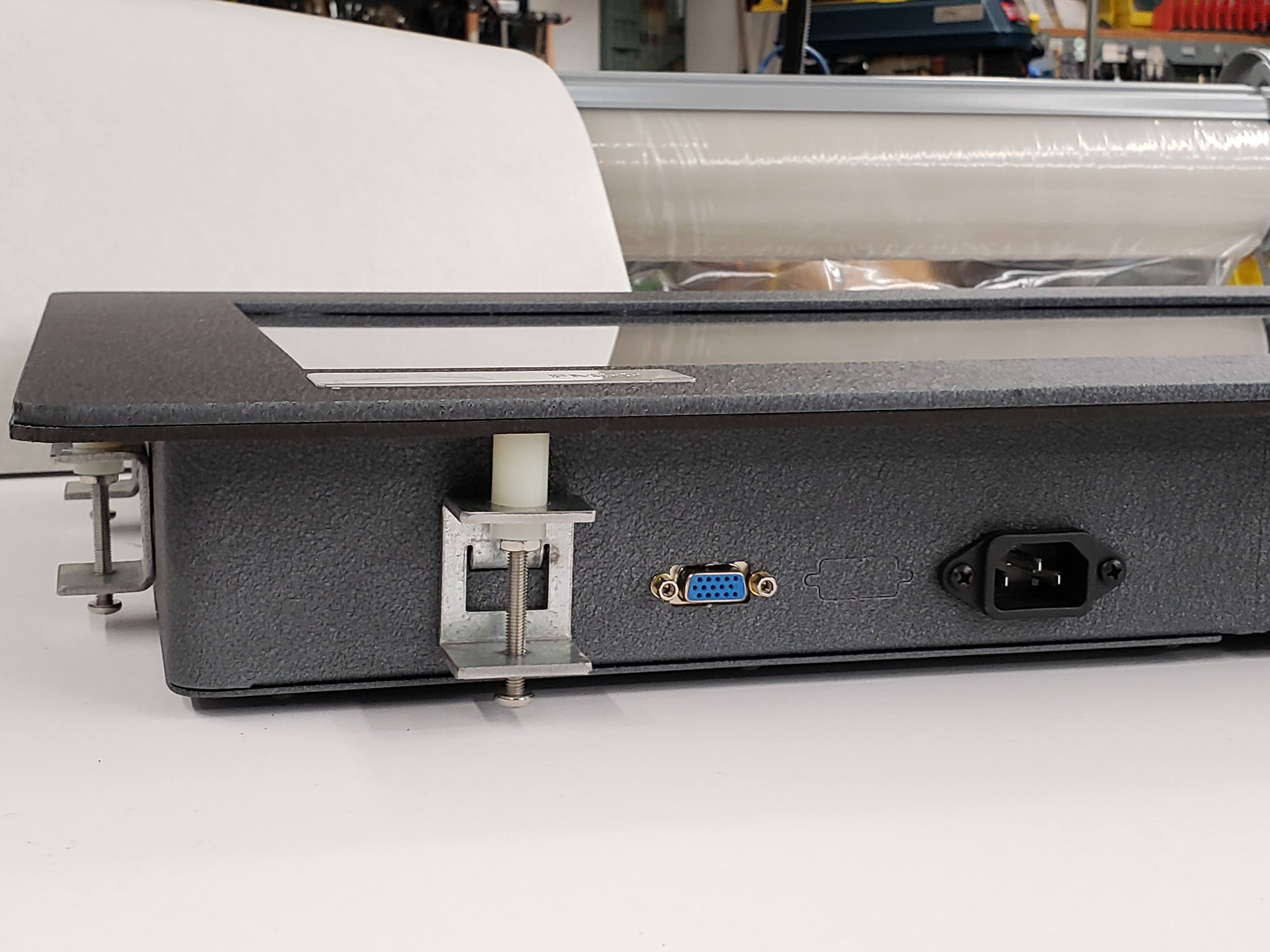

VGA Socket
VGA HDDB15 Female
VGA Cable
6' VGA Cable HDDB15 Male to Male Cable
HDMI Socket
HDMI Port Flange Mounted
HDMI Cable

6' HDMI to HDMI Cable

6' HDMI to USB-C Cable (Optional)

OPERATING CONDITIONS

Operating Temperatures
32-104º F (0 - 40º C)
Humidity
20-90% Humidity (non-condensing)

Weight

Standard

15Ibs

Finish

Powder Coat

CDS Signature Silver-Splatter Wrinkle Heavy Duty Powder Coating

Dimensions

External 24"W x 16"H x 3"D

Warranty

Limited Warranty

3-Years
