CDS-FM17

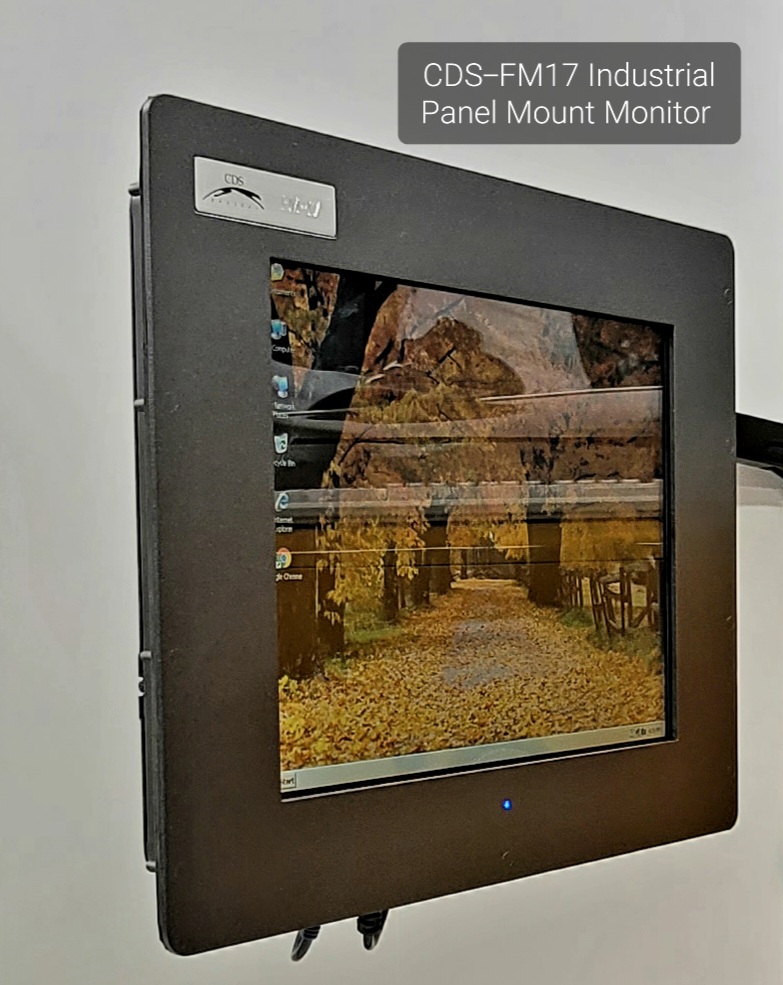

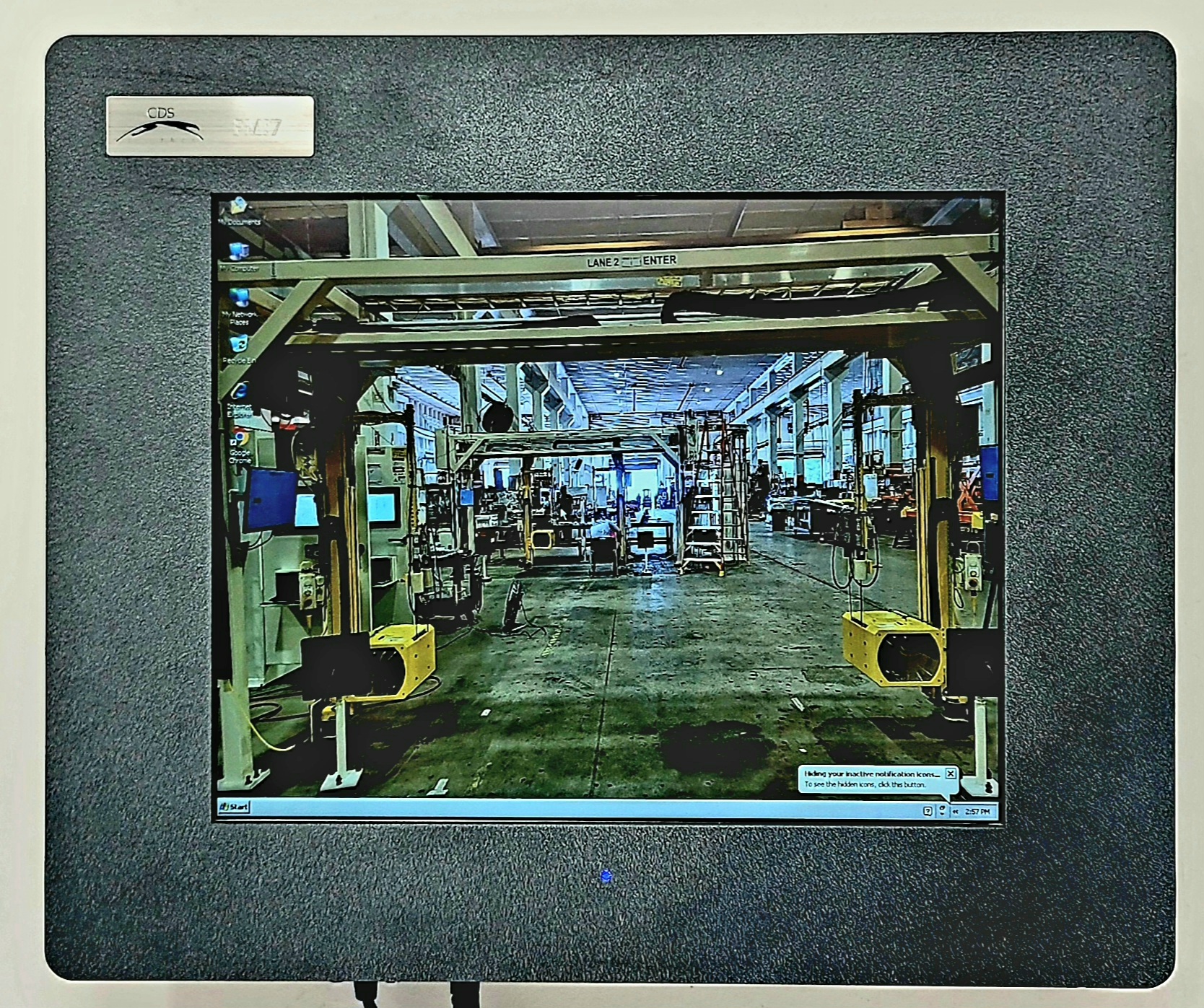

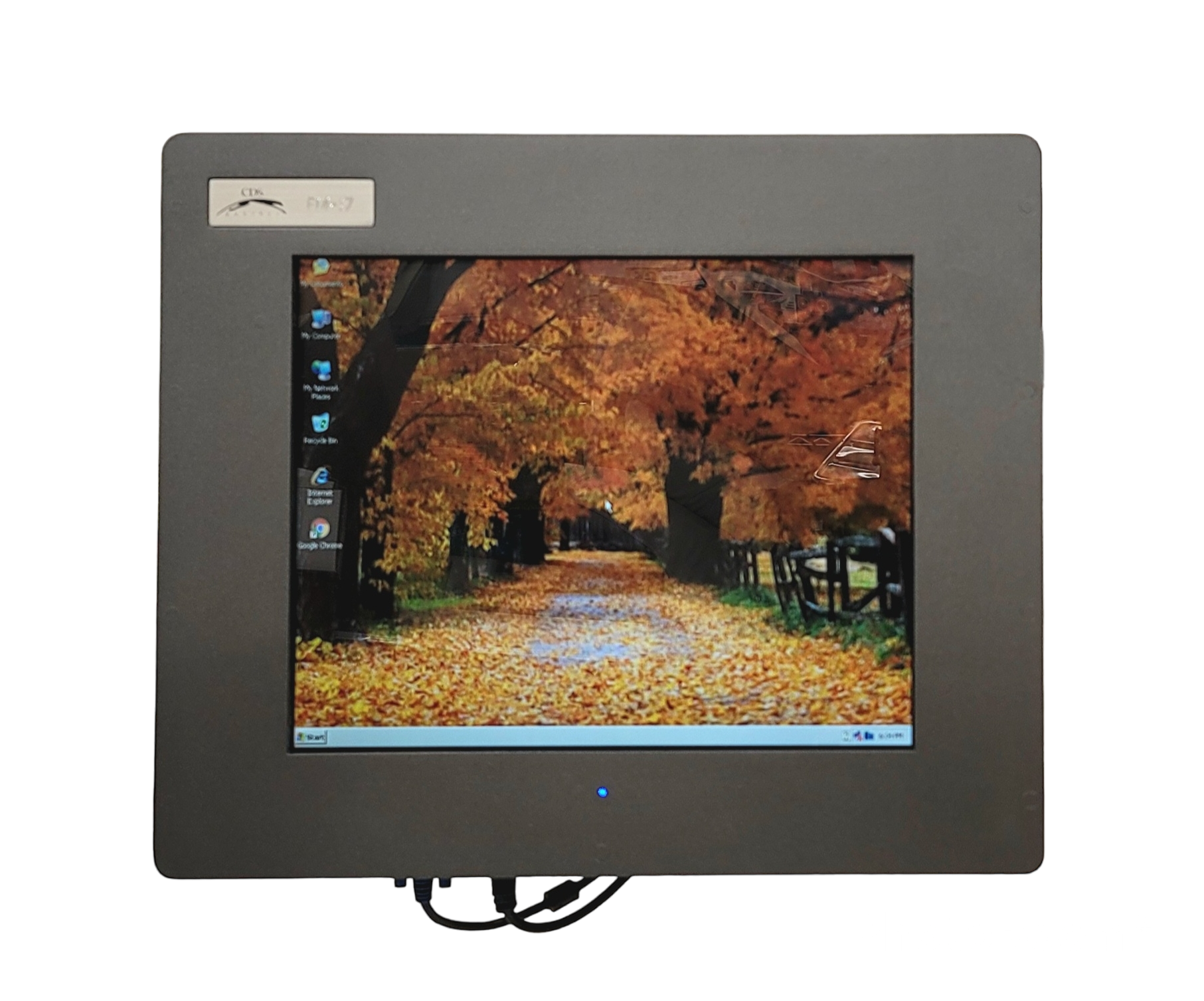

17" Industrial Panel Monitor

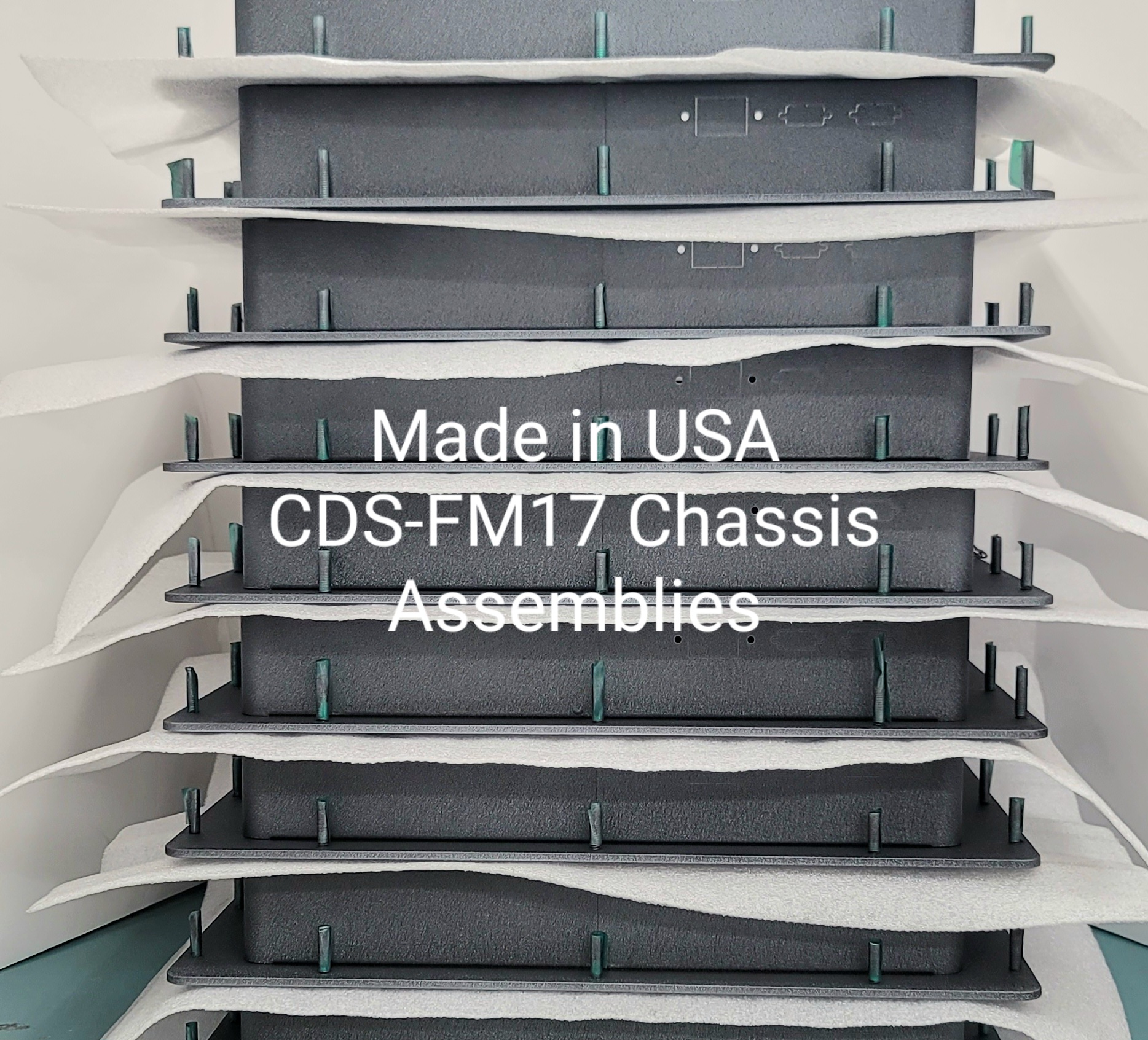

    ***FM17 - Industrial Grade 17" Flat Panel Mount LED Display *** Panel Mount NEMA4/4X/12 Compliant • 19”W x 16”H Front Panel • Rust Resistant Heavy Duty USA-Made Aluminum Chassis Assembly • Powder Coated with CDS Signature Silver-Splatter Wrinkle Finish (Custom Colors Available) • Heavy Duty LEXAN® Shield, Mar Resistant, Shatter Resistant, Oil, Gas & Water Resistant • 17" Display Size (Diagonal) • SXGA 1280 x 1024 Optimum Resolution • 5:4 Aspect Ratio • 16.7 Million Colors Capability • 5ms Response Time (Typical Tr+Tf) • 30000 Hours (Min) Backlight Life • VGA Display Input Port HDDB15 Female • 3 Year Warranty The FM17 is a Drop-In Replacement for the older FM15 model. The screen viewing size is 17" diagonal on the FM17 as against 15" diagonal on the FM15 model. ***The FM17 is functionally, fully compatible with the FM15. The VGA Port and the AC Power Input are are located in the same identical position. The 14 bolt mounting configuration and panel cut out, is identical*** 3-Year Warranty

Description:

Model: CDS-FM17

Industrial Flat Panel Mount Display: 17" Shielded LCD NEMA4/12 Compliant TFT-Active Matrix Analog 300cd/m2 Heavy Duty Aluminum with Custom Splatter-Silver Wrinkle Finish, Heavy Duty LEXAN® Shield - Mar Resistant, Shatter Resistant & Waterproof, PORON® Foam Sealing Gasket with Adhesive Backing and Laxan Shield 19"Wx16"Hx3"D W2Y [Drop-In Replacement for CDS-FM15 Same External Dimensions Larger Viewing Area] L1428Industrial Flat Panel Mount Display: 17" Shielded LCD NEMA4/12 Compliant TFT-Active Matrix Analog 300cd/m2 5:4 Aspect Ratio Heavy Duty Aluminum with Custom Splatter-Silver Wrinkle Finish, Heavy Duty LEXAN® Shield - Mar Resistant, Shatter Resistant & Waterproof, PORON® Foam Sealing Gasket with Adhesive Backing and Laxan Shield 19"Wx16"Hx3"D W3Y [Drop-In Replacement for CDS-FM15 Same External Dimensions Larger Viewing Area] L1428

Specifications :

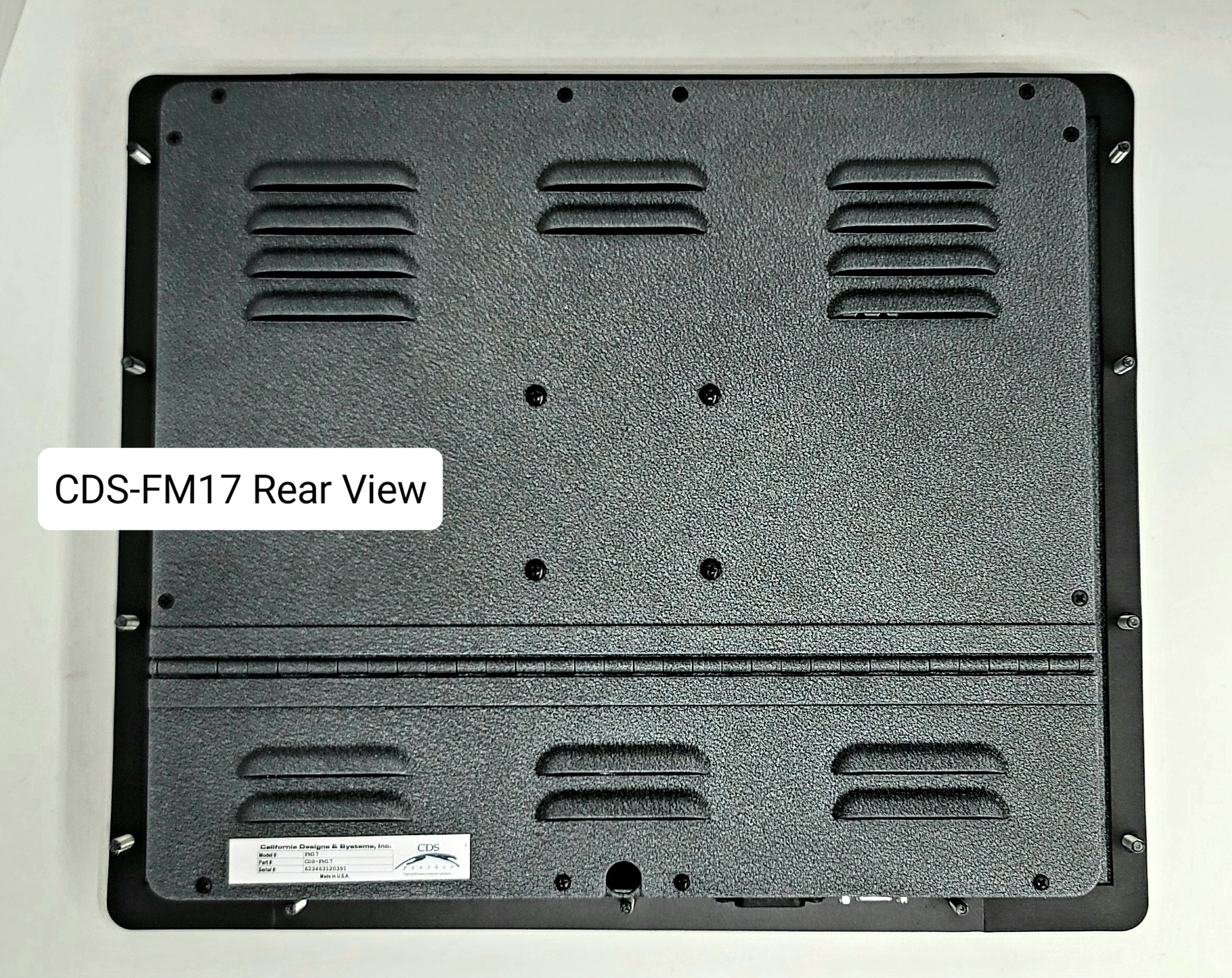

Enclosure

Dimensions

19"W x 16"H x 2.5"D NEMA4/12 Compliant Panel Mount
Mounting

Panel Mount. Panel Cut out Dimensions 16.25" x 14.25"
Compliance

NEMA 12 / NEMA 4 / NEMA 4X Compliant
Material Aluminum

3/8" Aluminum Front Panel

1/8" Aluminum Chassis Enclosure

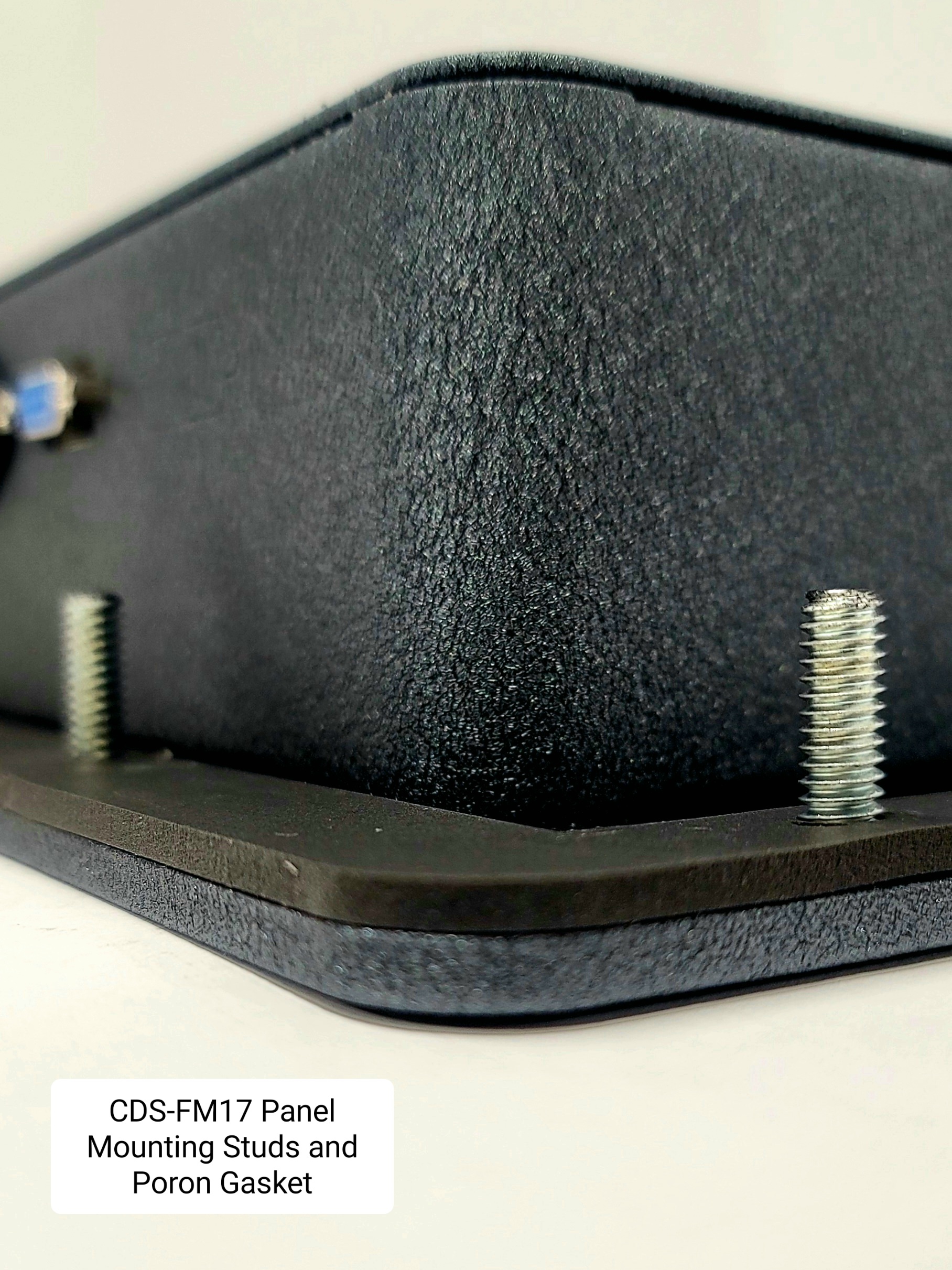

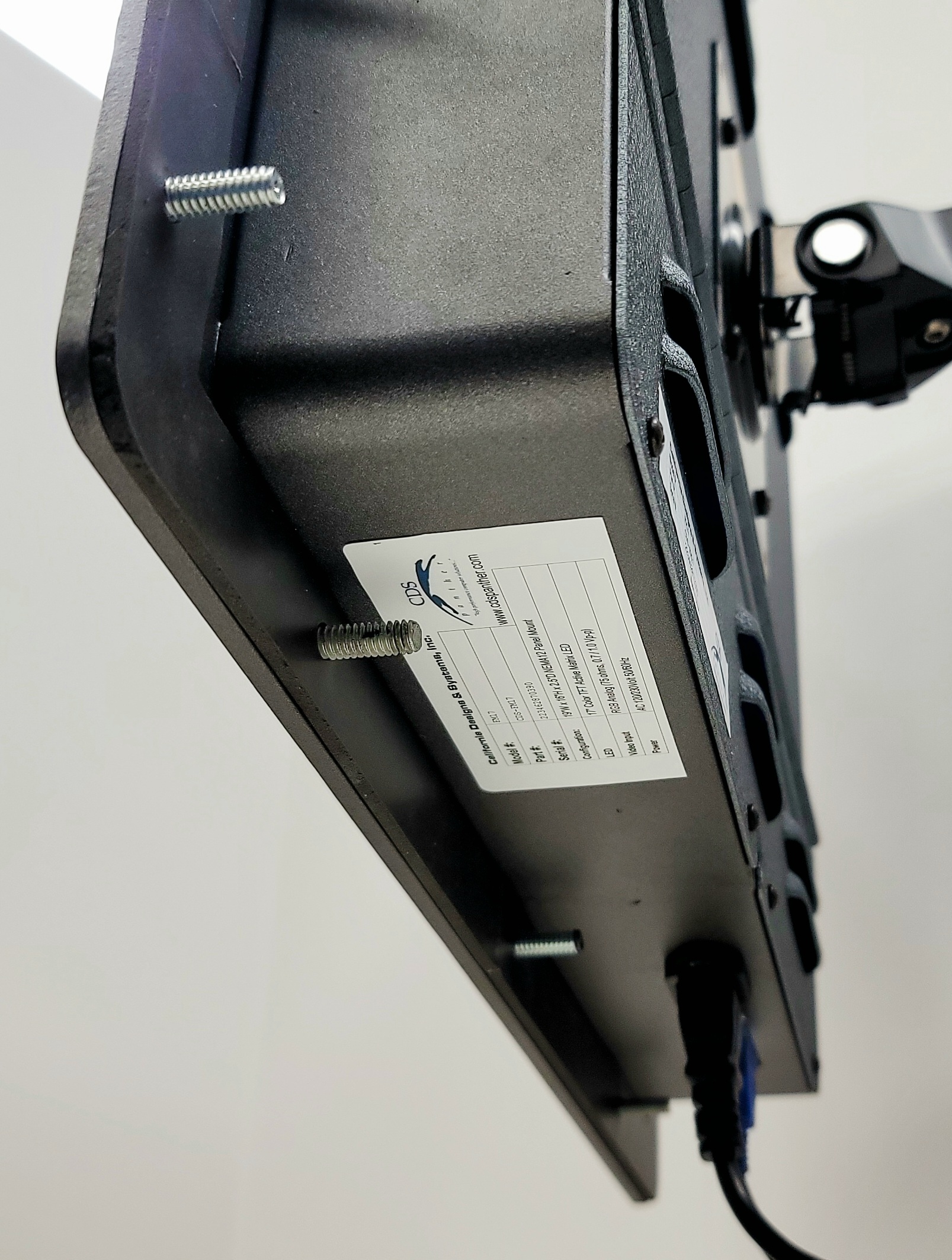

14x 10/32 1/2" Mounting Studs
Screen Size

17" Diagonal Display
Shielding for LED Display

3/8" Heavy Duty LEXAN Shield - Mar Resistant, Shatter Resistant & Water Resistant
Gasket

PORON® Foam Sealing Gasket with Adhesive Backing

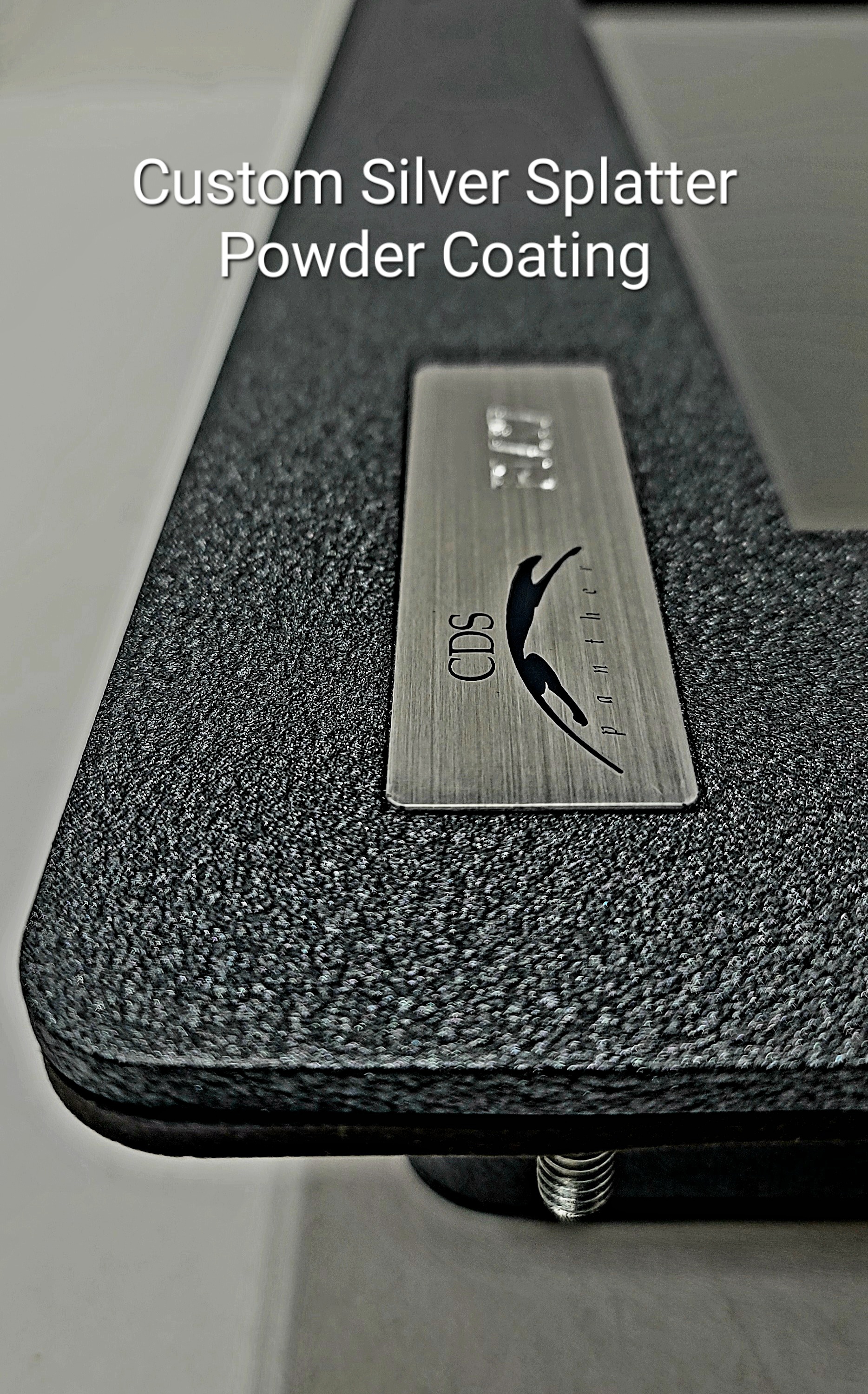

Finish

Heavy Duty CDS Signature Silver Splatter Powder Coating

DISPLAY

LED

17" Color LED
Optimum Resolution

1280 x 1024
Contrast Ratio

1000:1(typical) / 10M:1 DCR
Viewing Angles

170º horizontal, 160º vertical
Response Time

5ms (typ)
Light Source

LED with 40,000 hours (min.)
Brightness

250 cd/m2 (typ)
Panel Surface

Anti-glare, hard-coating (3H), protected by 3/8" LEXAN Shield
Adjustments

OSD, Auto & Manual Image Adjust Setup Menu Auto Power Off Inside Rear Panel
Aspect Ratio 5:4 Aspect Ratio Ideal for Legacy Applications

POWER

Requirement

AC 120/230Volt 50/60Hz
Consumption

20W (typ)
Eco Mode

15W (Optimize) / 12W (Conserve)
Power Save Mode

≤ 0.5W
Power

On/Off Inside Rear Panel

COMPATABILITY

PC

PC compatibles (VGA up to 1280x1024 non-interlaced)
Mac®

Power Mac Up to 1280x1024
CDS-FM15

The FM17 is a Drop-In Replacement for the older FM15 model. Only the screen viewing size is 17" diagonal on the FM17 as against 15" diagonal on the FM15 model. The FM17 is functionally, fully compatible with the FM15. The VGA Port and  the AC Power Input are are located in the same identical position. The 14 bolt mounting configuration and panel cut out, is identical.

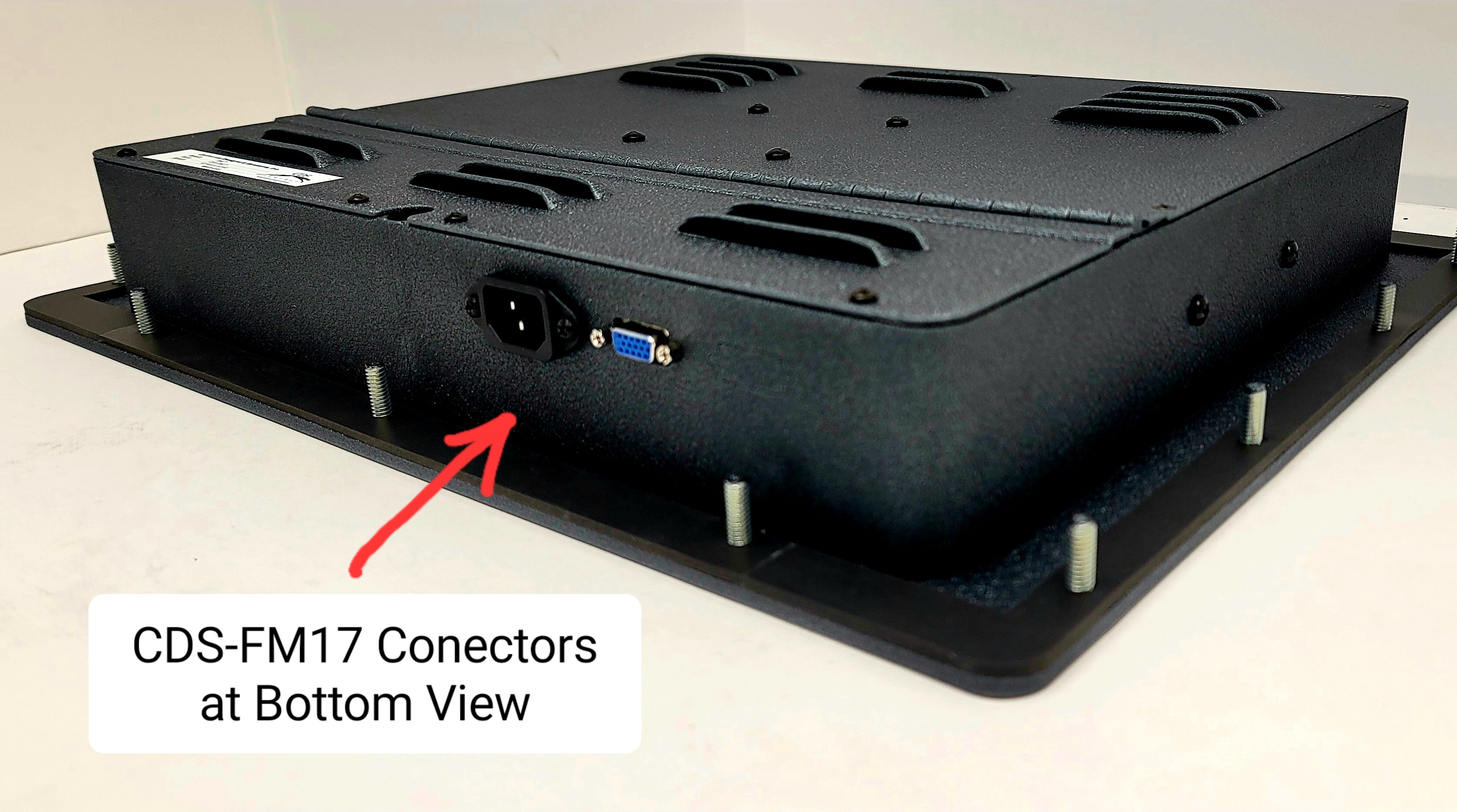

CONNECTORS

Video

Analog/Digital 15-pin mini D-sub
Power

3-Pin Plug (CEE22)

OPERATING CONDITIONS

Temperature

32–104°F (0–40°C)
Humidity

10–90% (non-condensing)

VIDEO INPUT

Analog/Digital

RGB Analog (75 ohms, 0.7 / 1.0 Vp-p)
Frequency

Fh = 24 – 82 kHz ; Fv = 50 – 75 Hz
Sync

Separate Sync

Warranty

Limited

Three-Year Limited Warranty on Parts, Labor & Backlight
